PIONEER Artistic Sound Series catalog from September 1983 - the full hi-end lineup, 19 components from preamplifier to equalizer. At the top: PIONEER C-Z1a preamplifier at ¥460,000 with a non-feedback circuit, paired with the PIONEER M-Z1a power amp at ¥320,000. The PIONEER S-F1 custom speaker with its coaxial flat-plane driver and beryllium ribbon tweeter comes in at ¥875,000 per unit. CD players PIONEER D-70 and D-23 are already in the lineup - 1983 after all - alongside three turntable models PL-70LII/50LII/30LII and the PC-70MC MC cartridge with its carbon graphite arm.
- ノンフィードバック回路 - non-feedback circuit - signal path with no negative feedback loops, used in the C-Z1a preamplifier
- SHローターコアレスモーター - SH-rotor coreless motor for turntable platter drive - no iron core, minimal vibration
- カーボングラファイトアーム - carbon graphite tonearm - light and rigid, used in the PC-70MC cartridge
- 同軸平面スピーカー - coaxial flat-plane speaker driver - tweeter and midrange on a shared axis with a flat diaphragm
- ベリリウムリボンツイーター - beryllium ribbon tweeter in the S-F1 speaker - beryllium foil as the radiating element
- リボンセンダストヘッド - ribbon sendust head in the CT-A1 cassette deck - sendust alloy ribbon instead of a standard head configuration
| Model | Type | Price |
|---|---|---|
| PIONEER C-Z1a | preamplifier, non-feedback circuit | ¥460,000 |

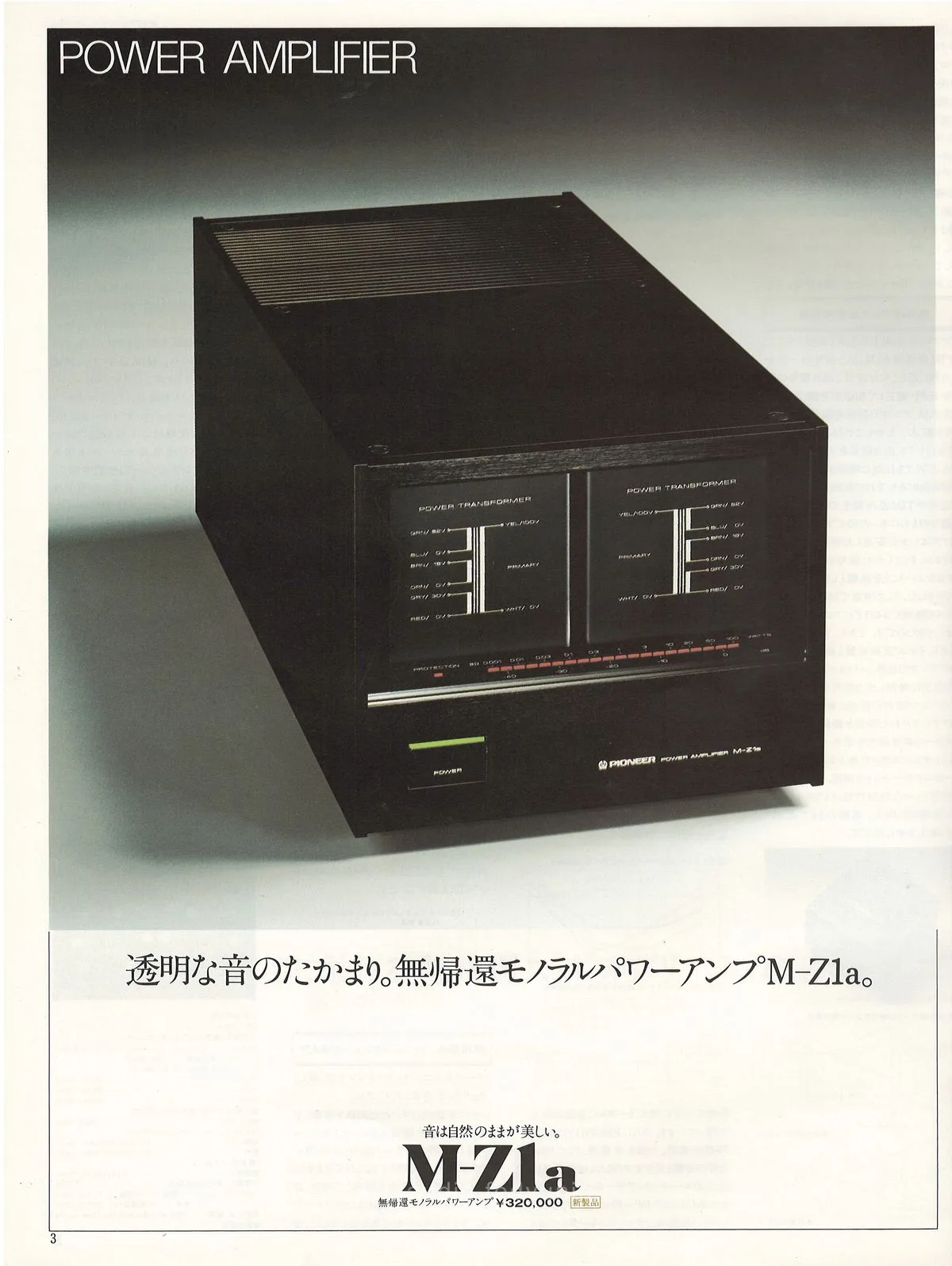

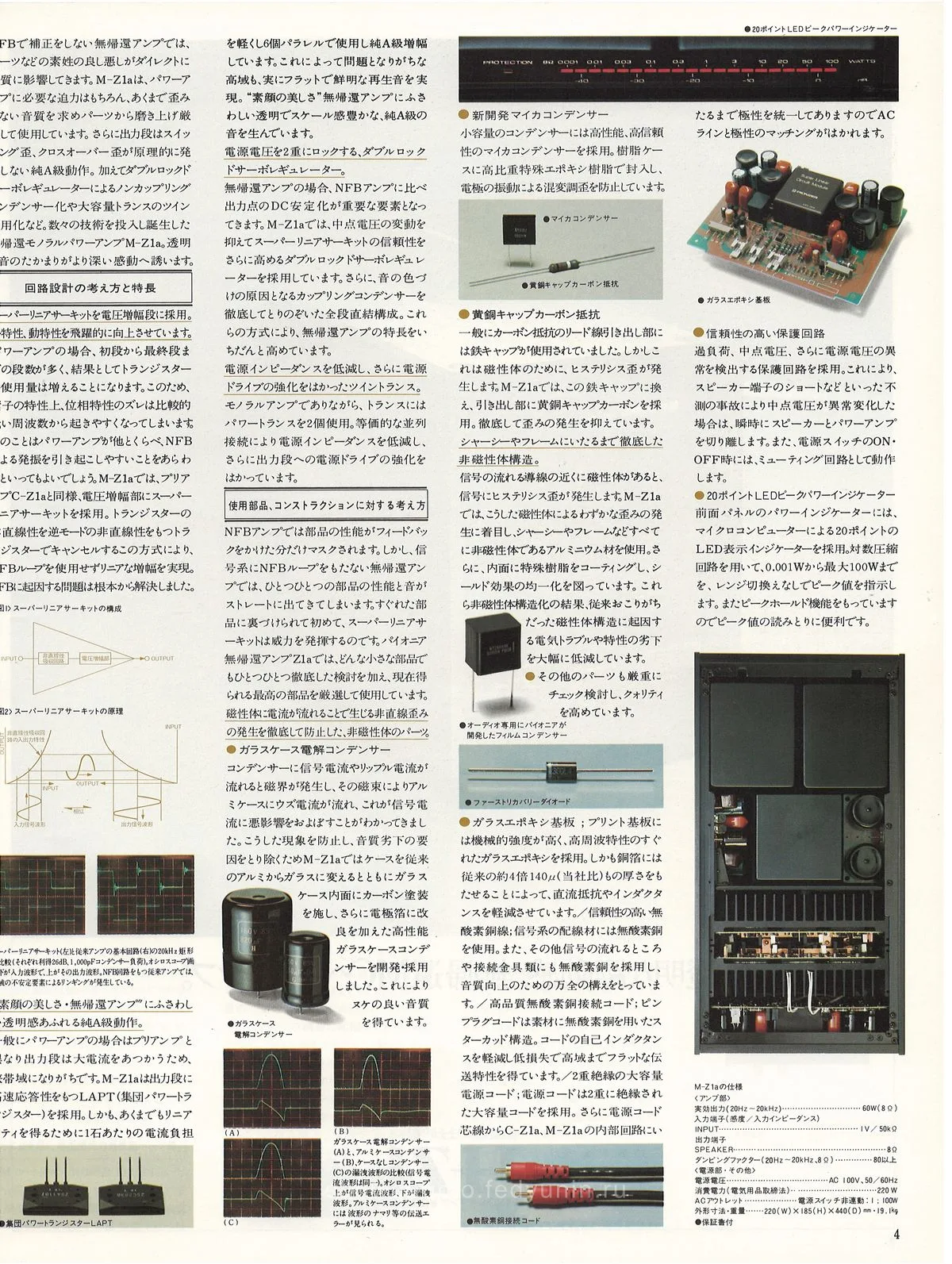

| PIONEER M-Z1a | power amplifier | ¥320,000 |
| PIONEER H-Z1 | headphone | |

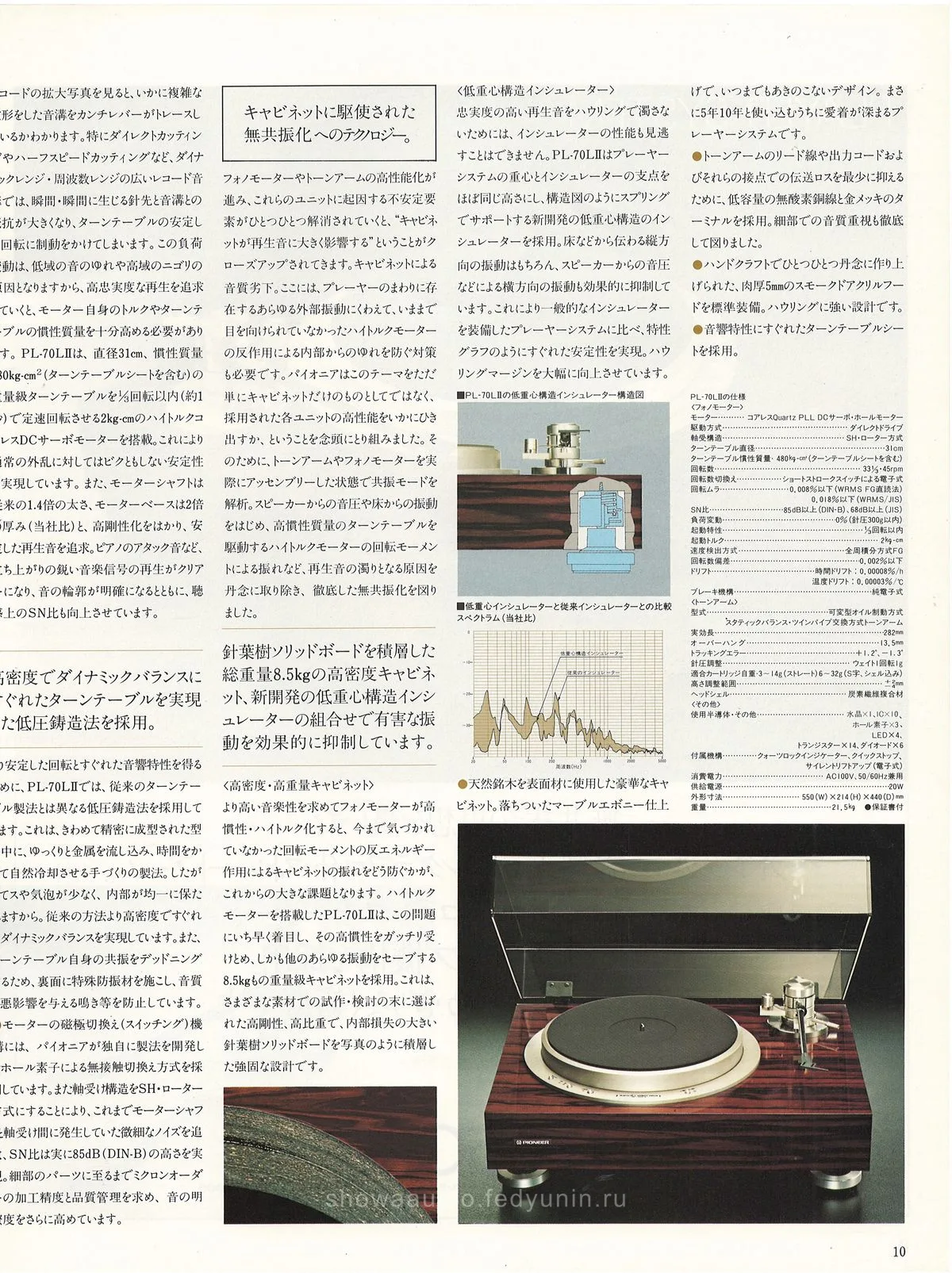

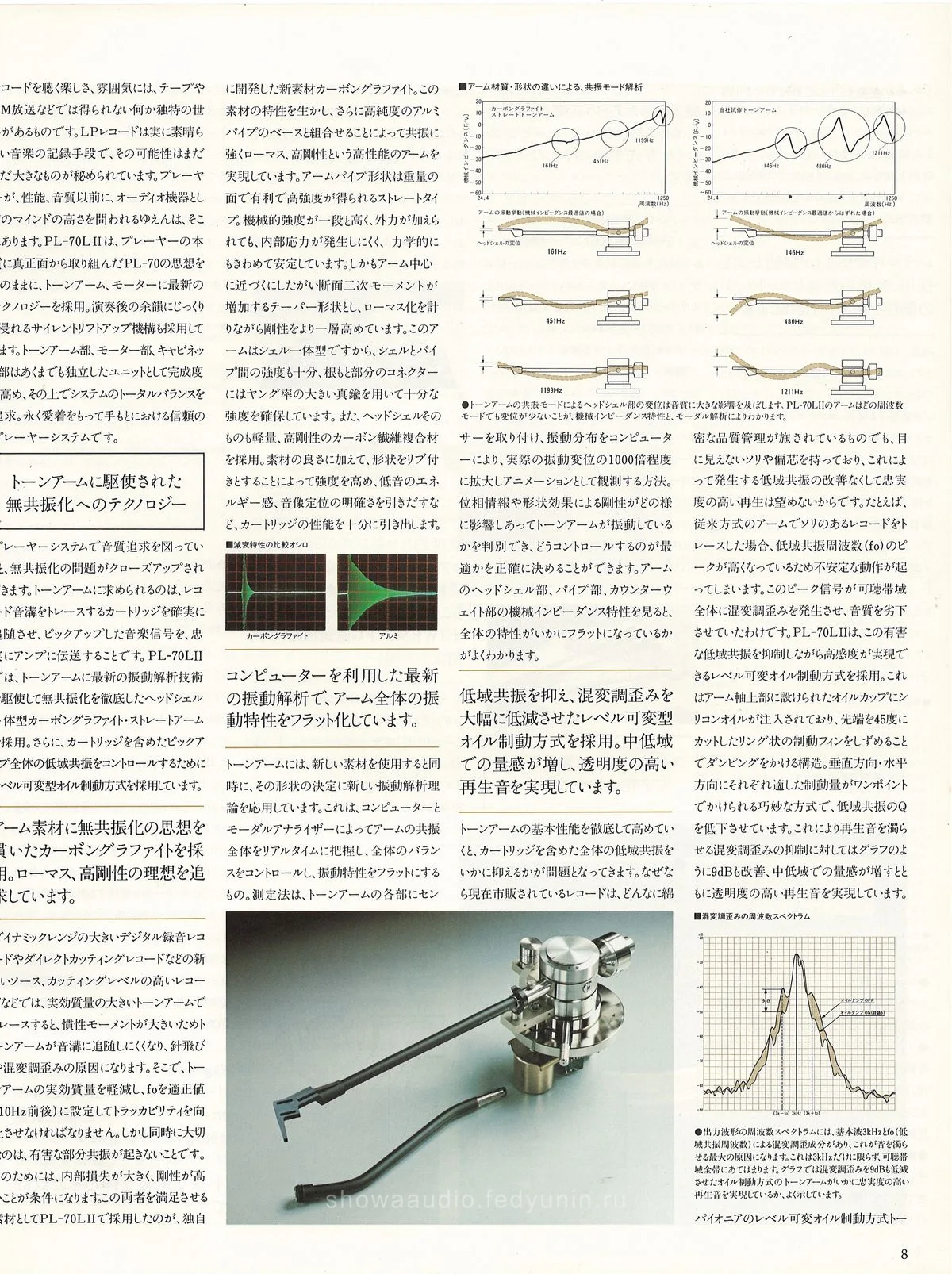

| PIONEER PL-70LII | turntable, SH-rotor coreless motor | ¥135,000 |

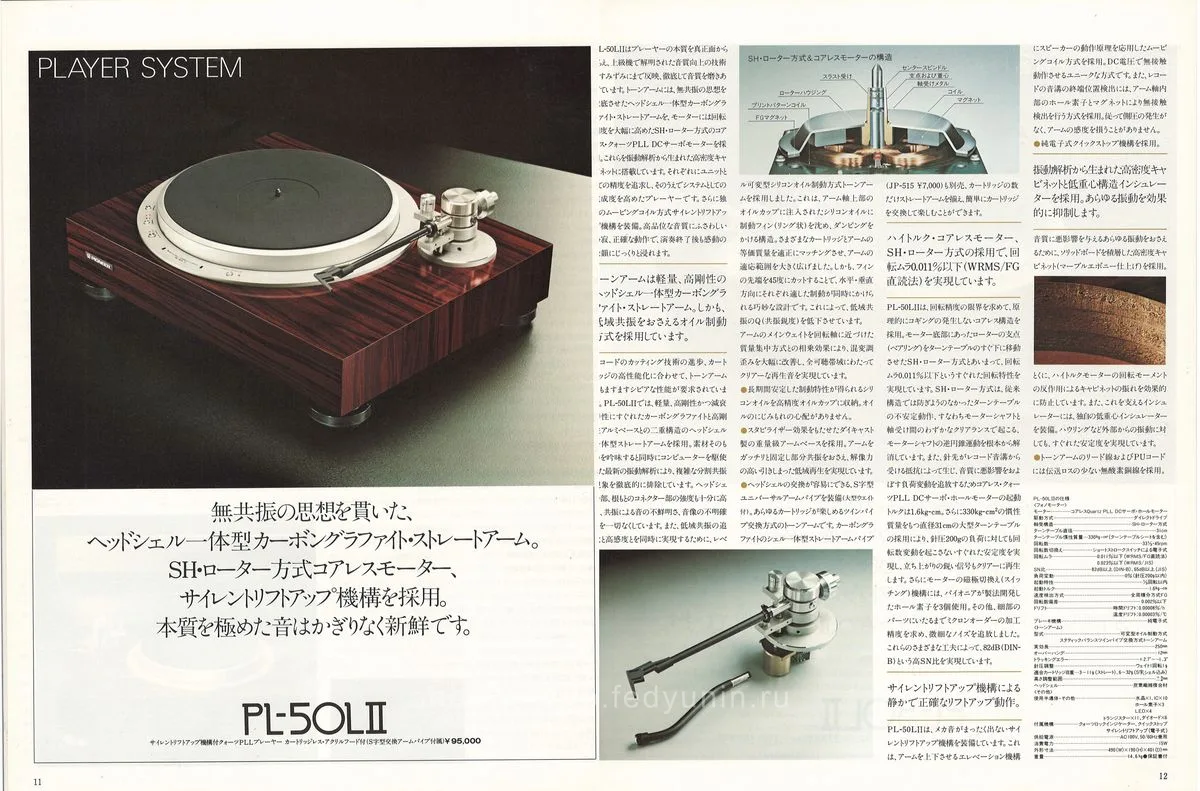

| PIONEER PL-50LII | turntable | ¥80,000 |
| PIONEER PL-30LII | turntable | ¥55,000 |

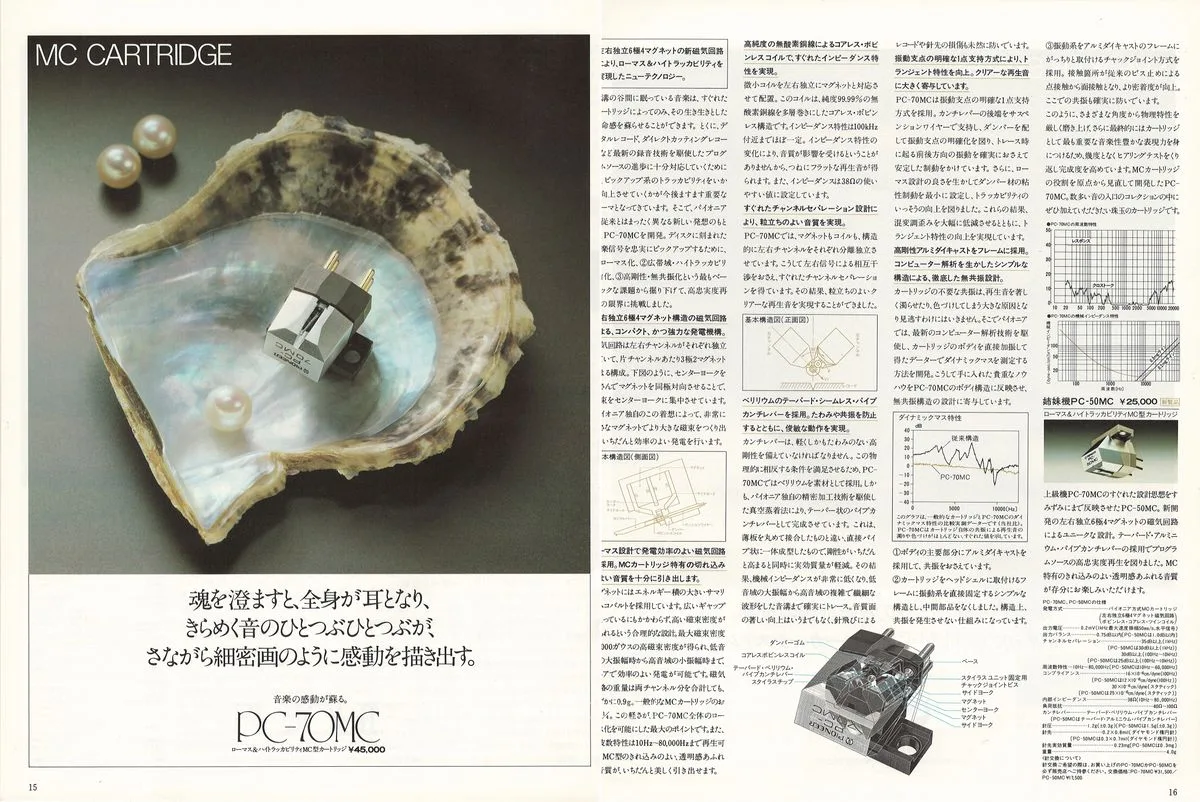

| PIONEER PC-70MC | MC cartridge, carbon graphite tonearm | ¥50,000 |
| PIONEER PC-50MC | MC cartridge | ¥28,000 |

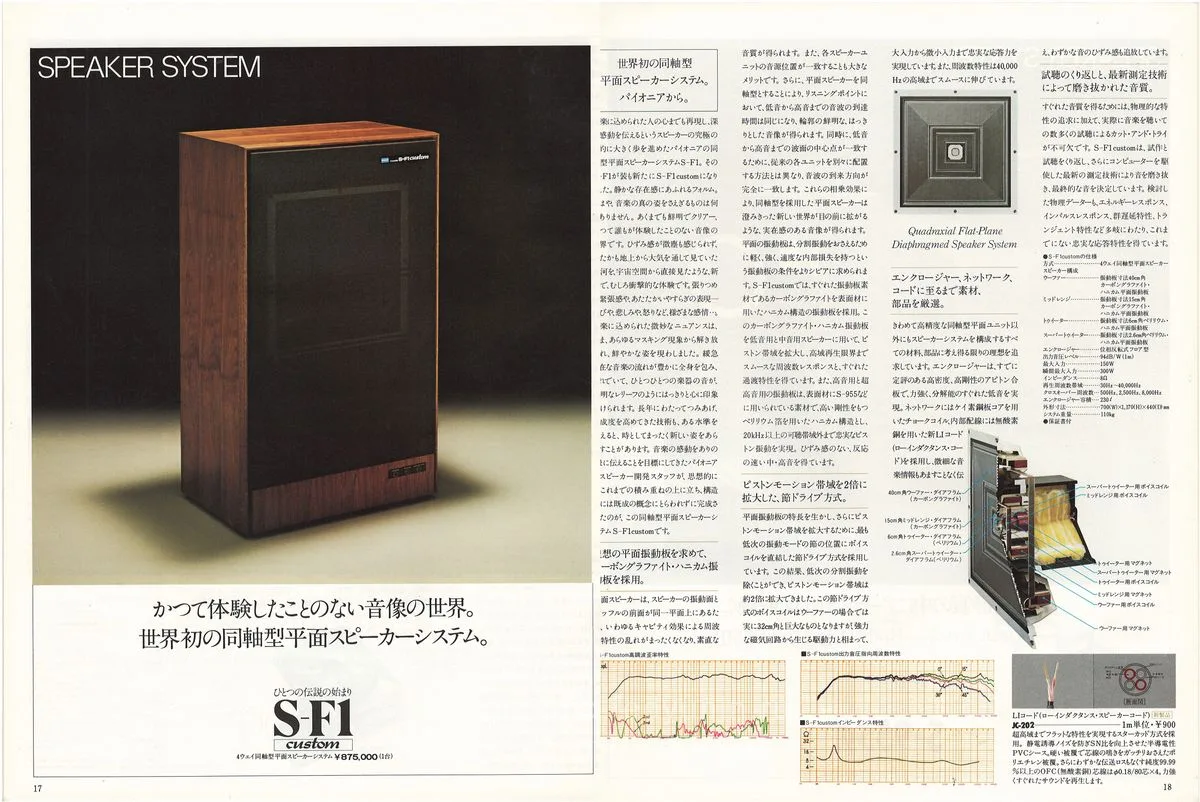

| PIONEER S-F1 custom | speaker system, coaxial flat-plane driver, beryllium ribbon tweeter | ¥875,000/台 |

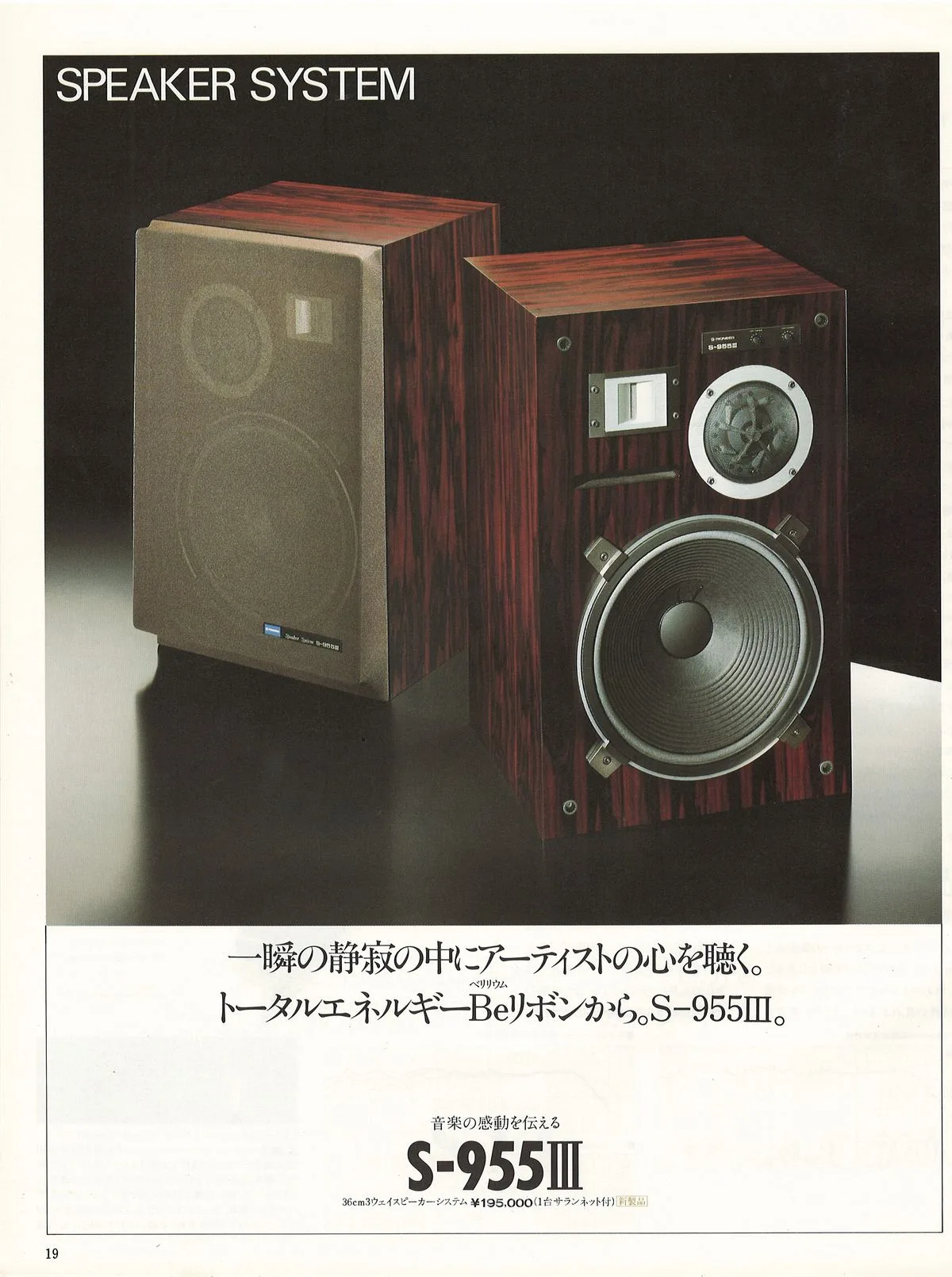

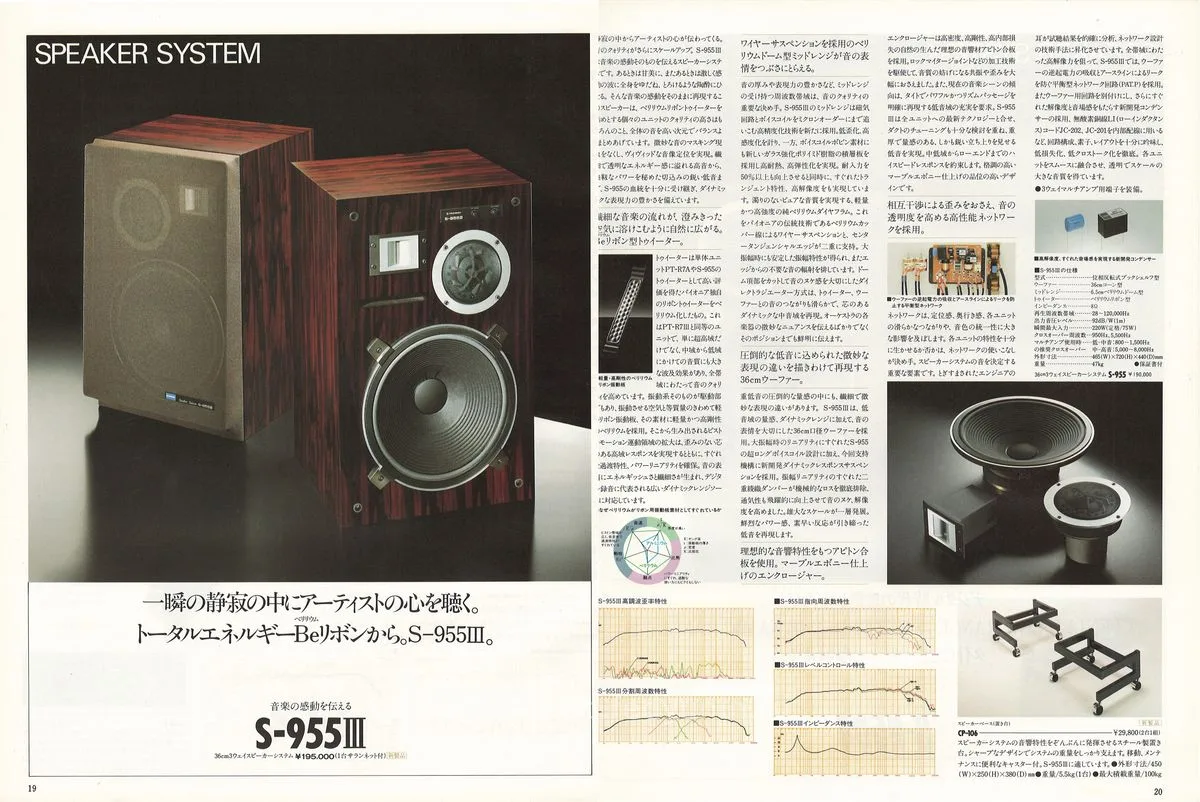

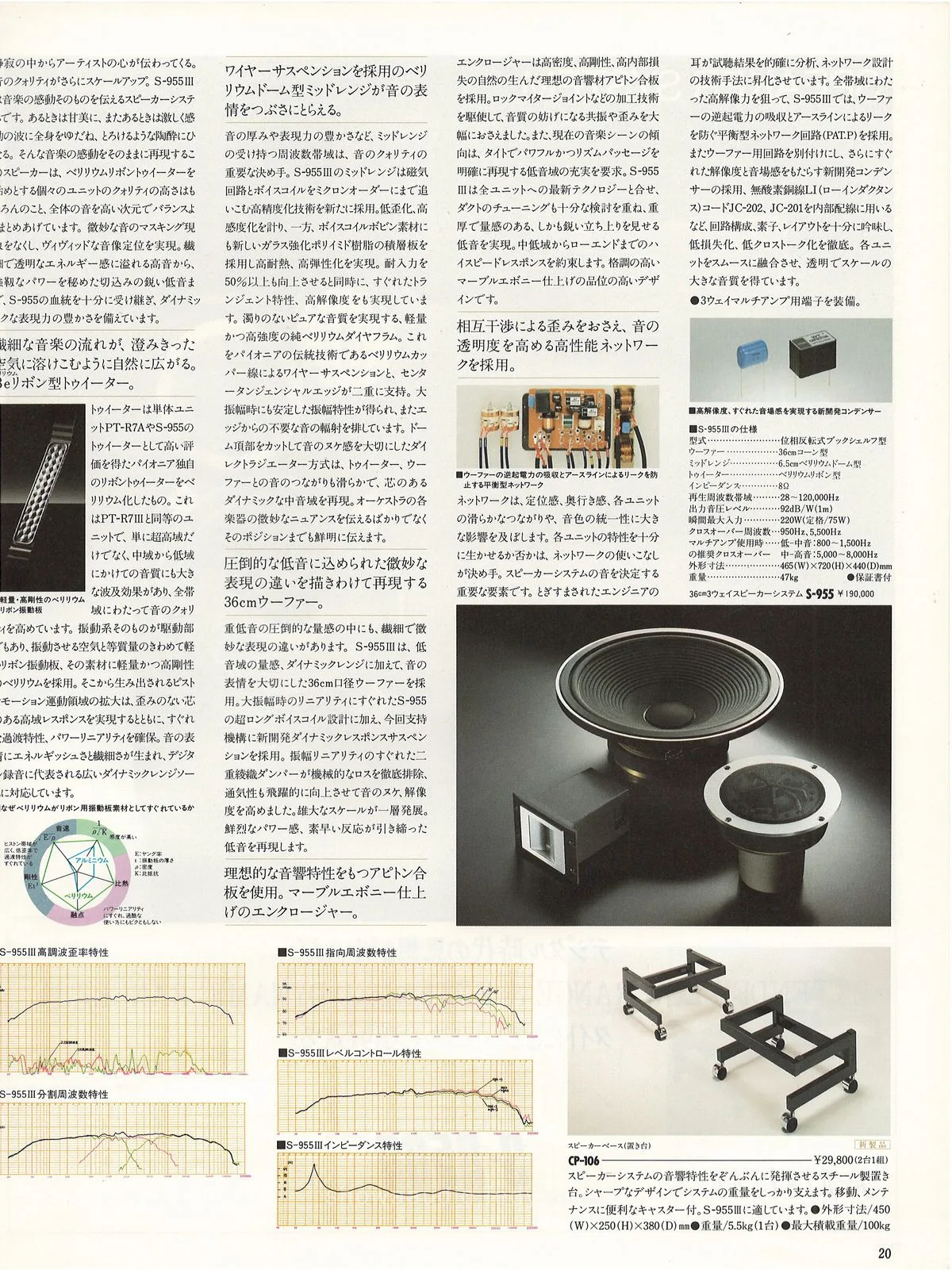

| PIONEER S-955III | speaker system | ¥98,000/台 |

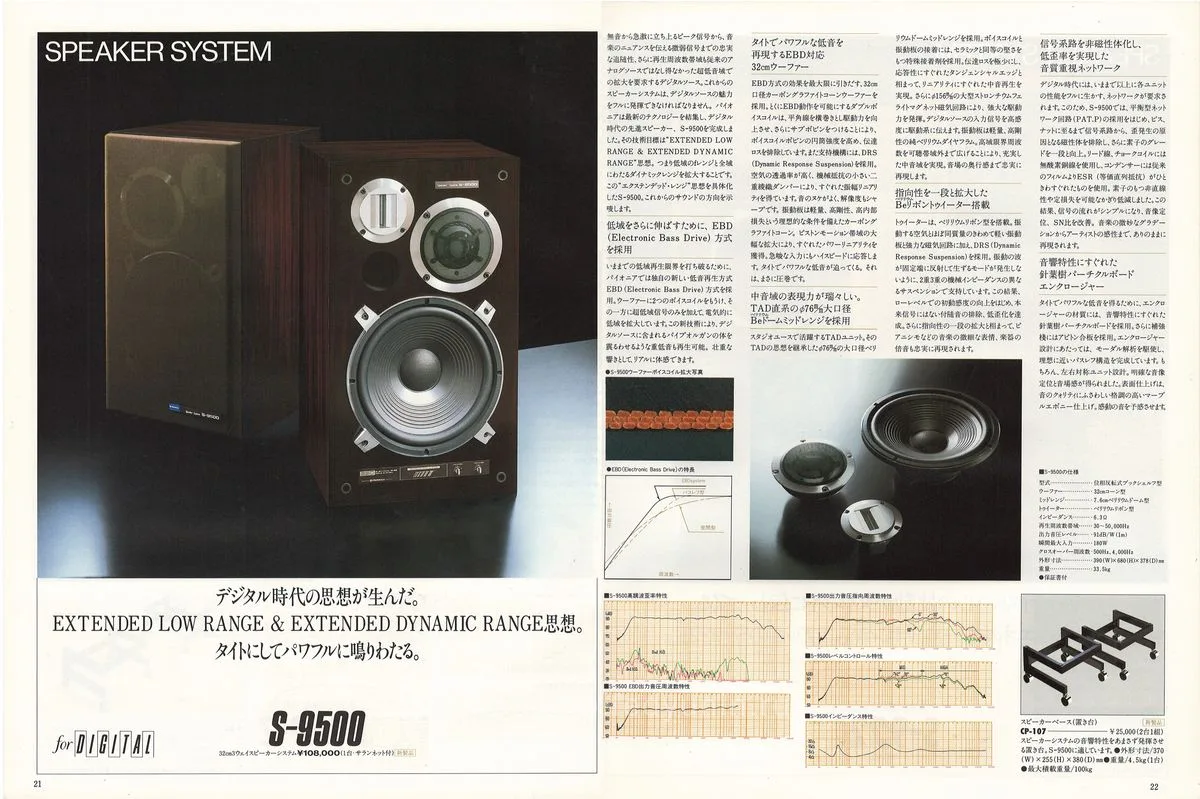

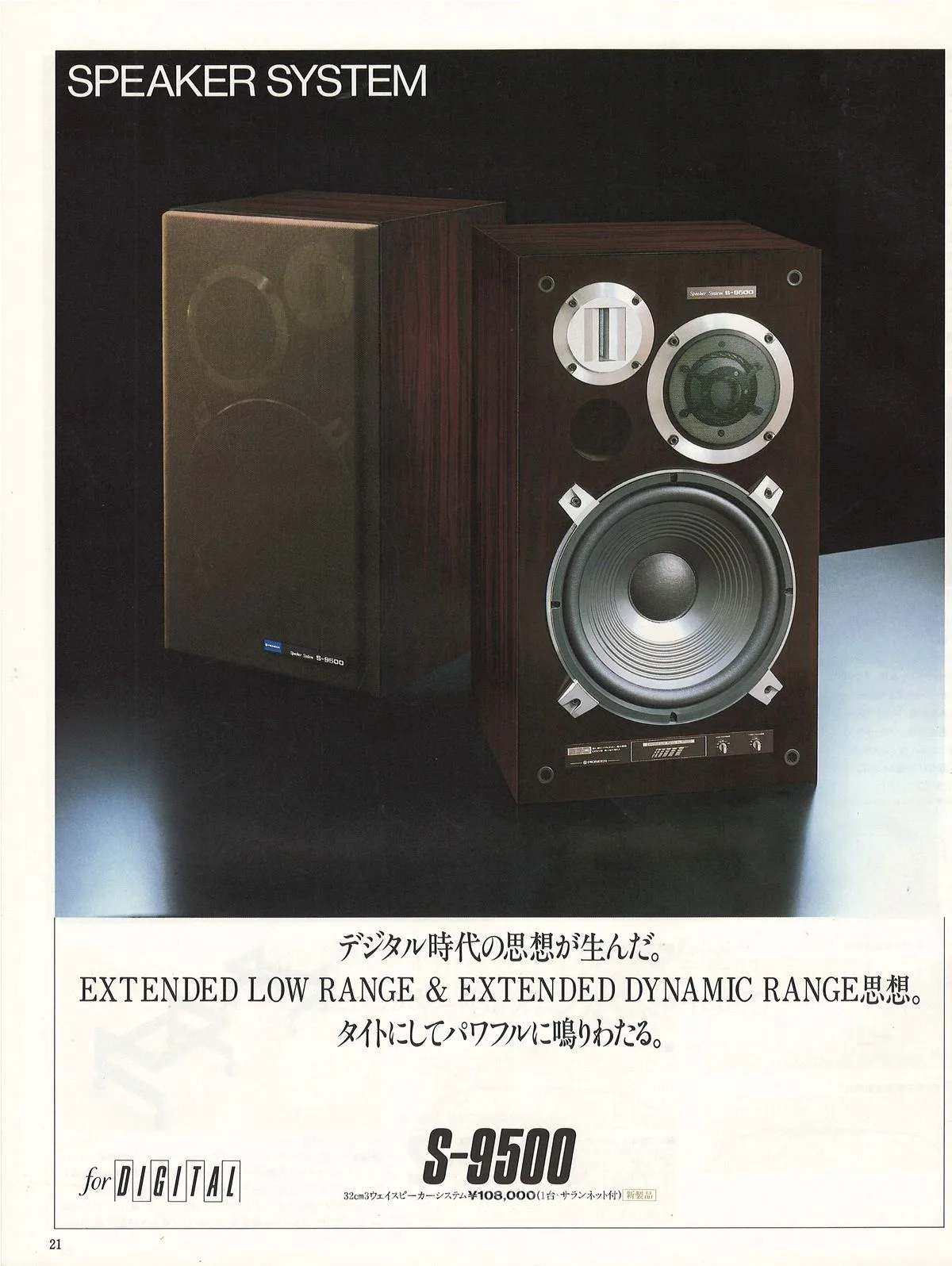

| PIONEER S-9500 | speaker system | ¥72,000/台 |

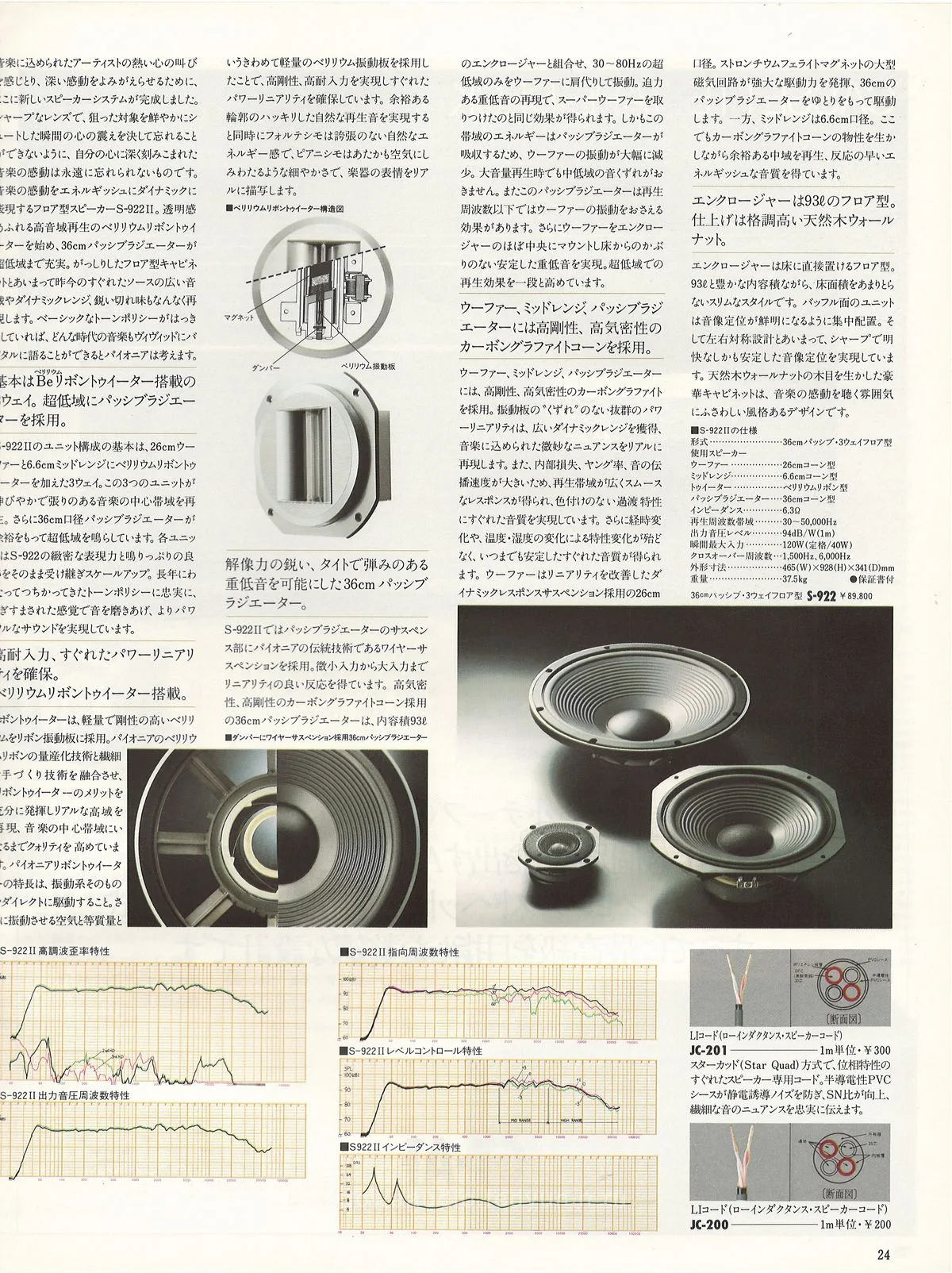

| PIONEER S-922II | speaker system | ¥55,000/台 |
| PIONEER CT-A1 | cassette deck, ribbon sendust head | ¥230,000 |
| PIONEER PT-R7III | tuner | |
| PIONEER PT-R7A | tuner | |
| PIONEER PT-R5 | tuner | |
| PIONEER D-70 | CD player | ¥250,000 |
| PIONEER D-23 | CD player | ¥168,000 |
| PIONEER U-24 | graphic equalizer | ¥45,000 |
