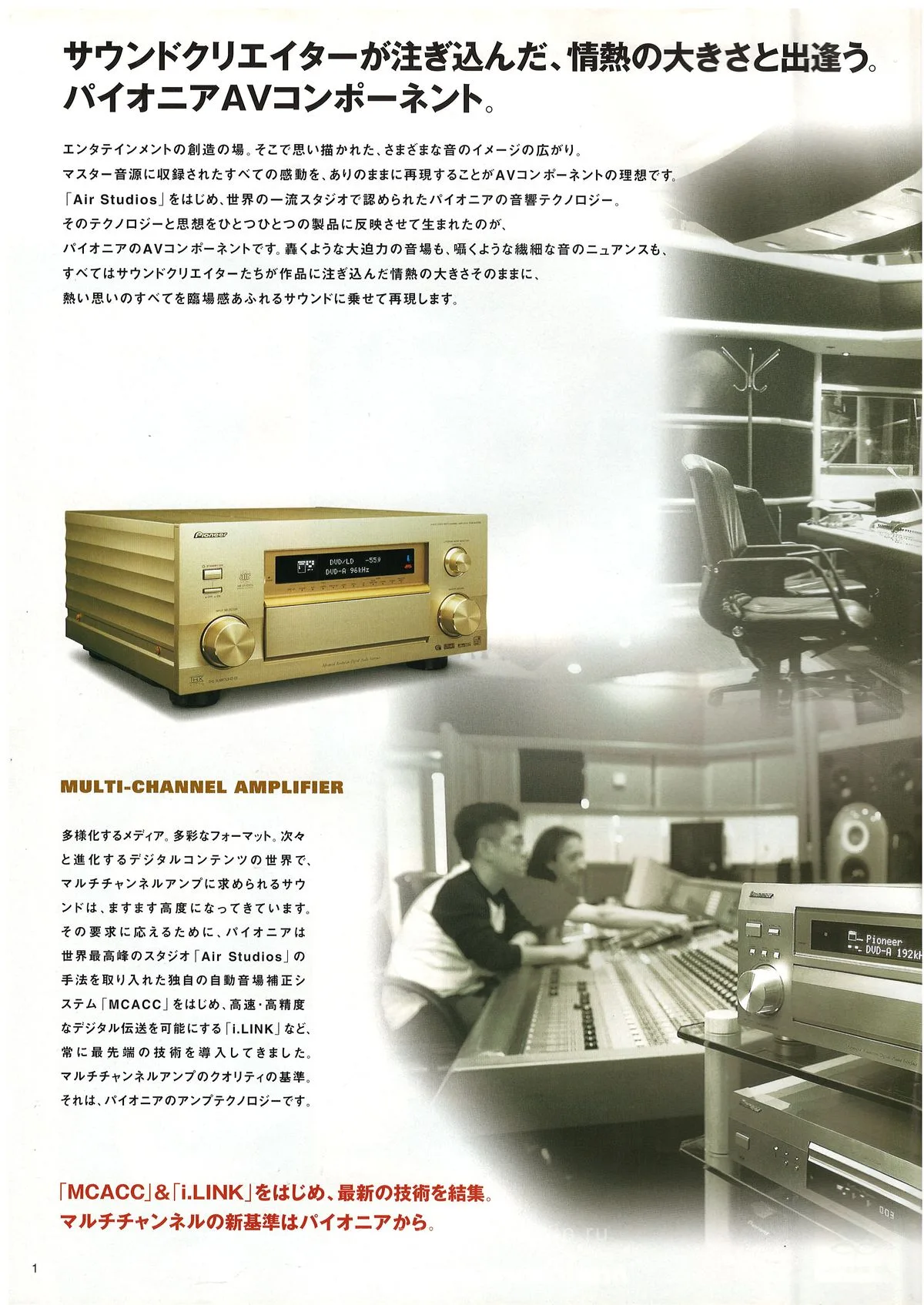

A thick catalog covering the full PIONEER AV component lineup for November 2004. The central pitch is MCACC and Air Studios: automatic room calibration paired with reference tuning at George Martin’s London studio - the catalog opens with exactly that idea. Flagship VSA-AX10Ai-N at ¥525,000 packs Advanced MCACC, THX Ultra2, i.LINK for DVD-Audio/SACD, and the 32-bit SHARC Melody Ultra processor - gold-finish chassis, ships with a calibration microphone. The A-series speakers draw on Pioneer’s professional TAD division: 7-petal superpoint tweeter, Acrylast cones, Frame enclosure - flagship S-A77TB at ¥89,000 per cabinet. CD changers in 25-, 102-, and 301-disc flavors round out a lineup that stretches from the top-tier DVD/SACD player DV-S969AVi with i.LINK all the way down to cassette decks with ALCA auto-calibration.

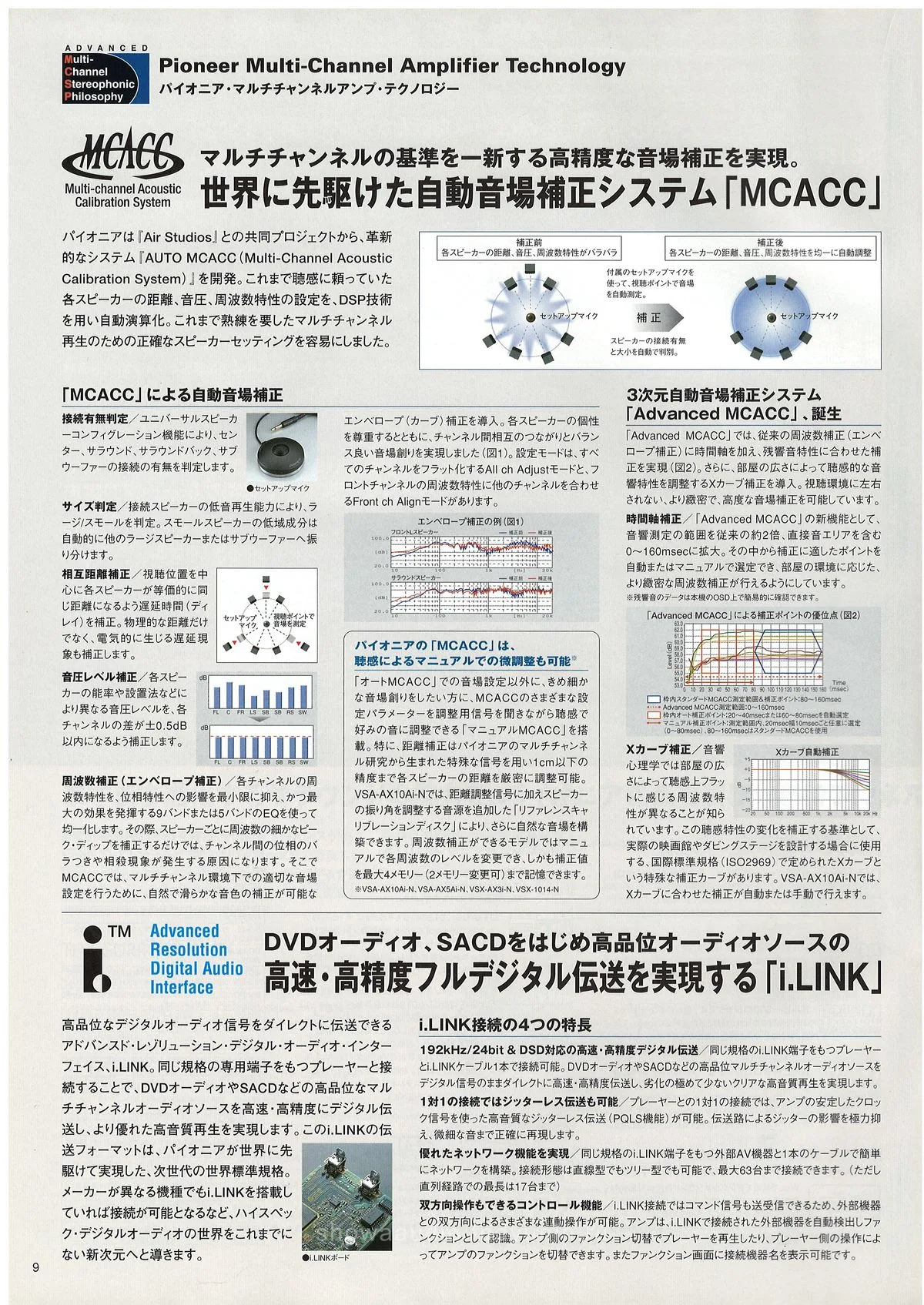

- マルチチャンネル・アコースティック・キャリブレーション・システム - MCACC - automatic room acoustic correction: microphone measures each channel's frequency response, aligns delays and levels. Advanced MCACC - three-point measurement with standing wave control
- アドバンスト MCACC - Advanced MCACC - professional version: X-curve correction, Standing Wave Control, S/Front and S/Rear frequency adjustment
- アイリンク - i.LINK (IEEE 1394) - digital bus for lossless DVD-Audio and SACD transfer at 192 kHz/24 bit between components
- THX - THX - licensed playback standard: Ultra2 Cinema/Music/Games in the flagship, Select2 in mid-range, Select in entry-level

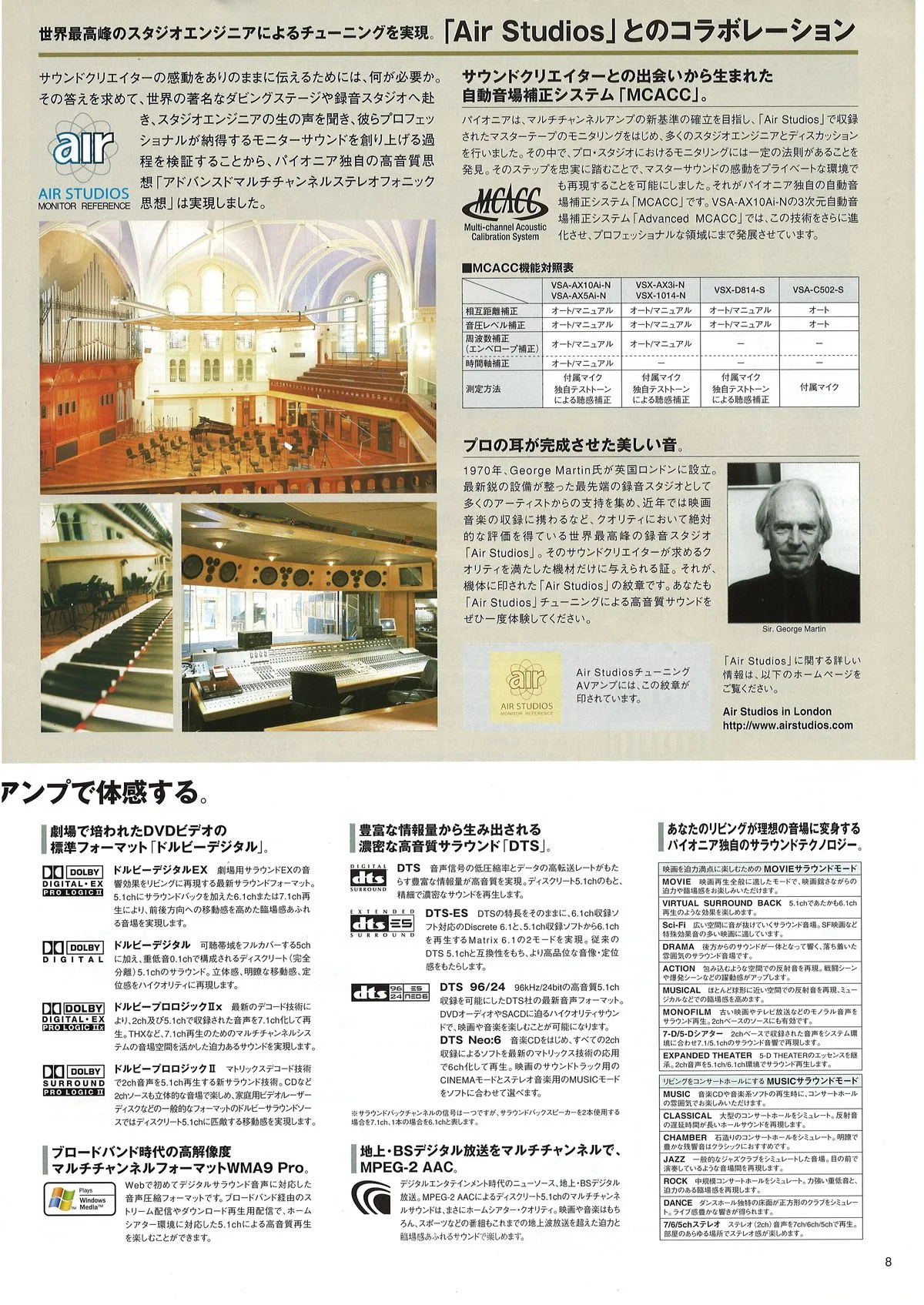

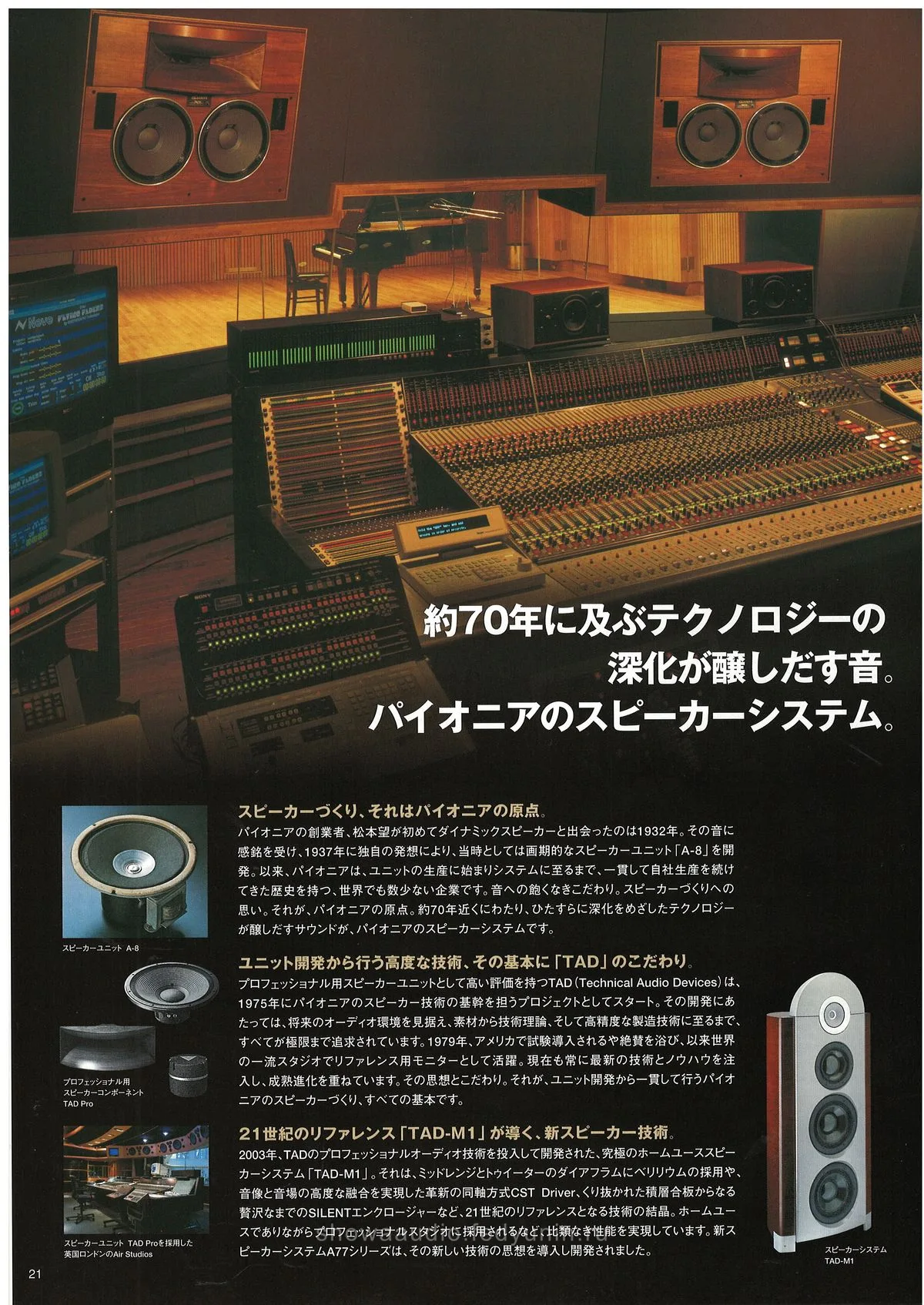

- エア・スタジオス - Air Studios - London studio founded by George Martin in 1979. Pioneer uses it as a reference for tuning and testing amplifier sound

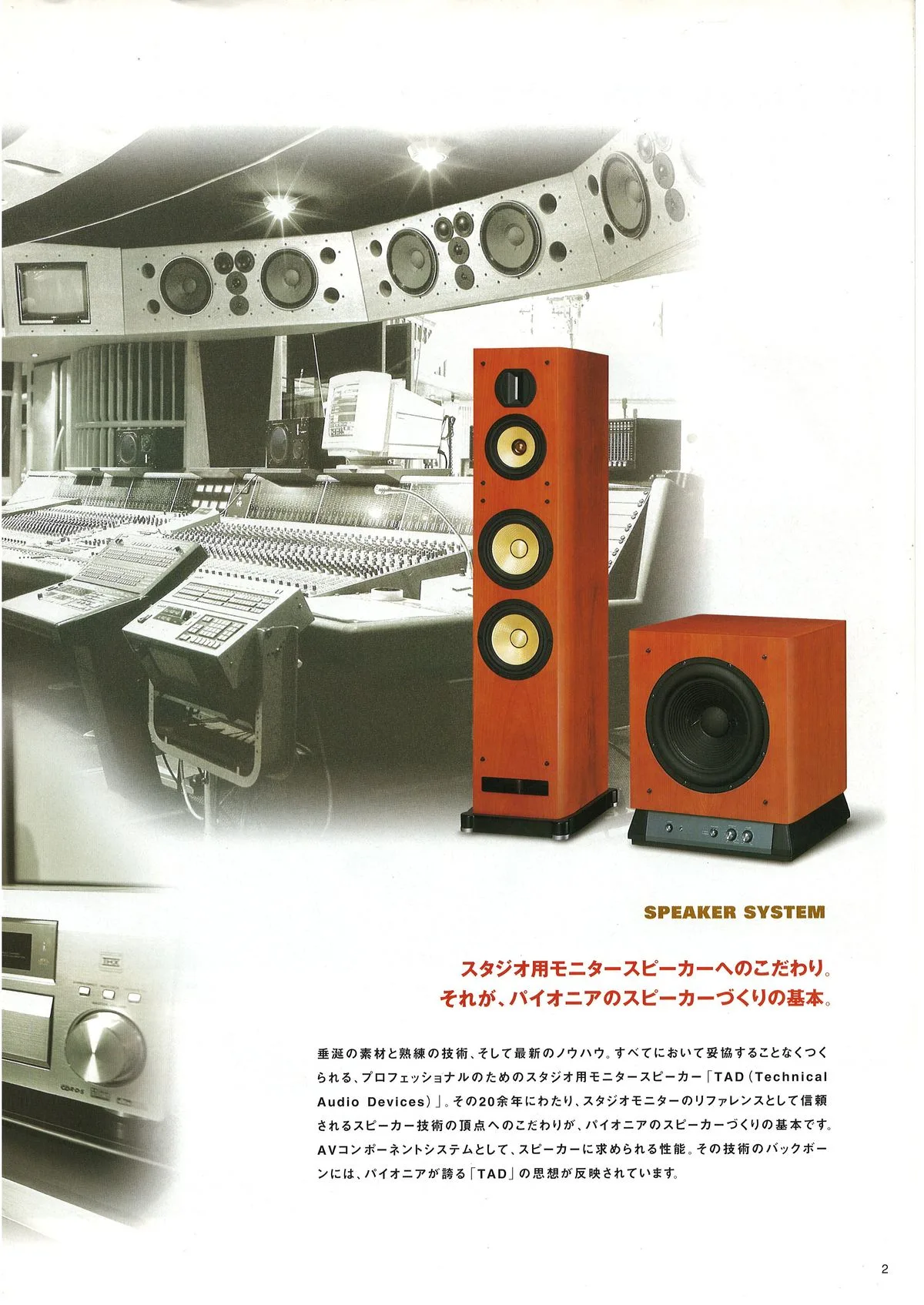

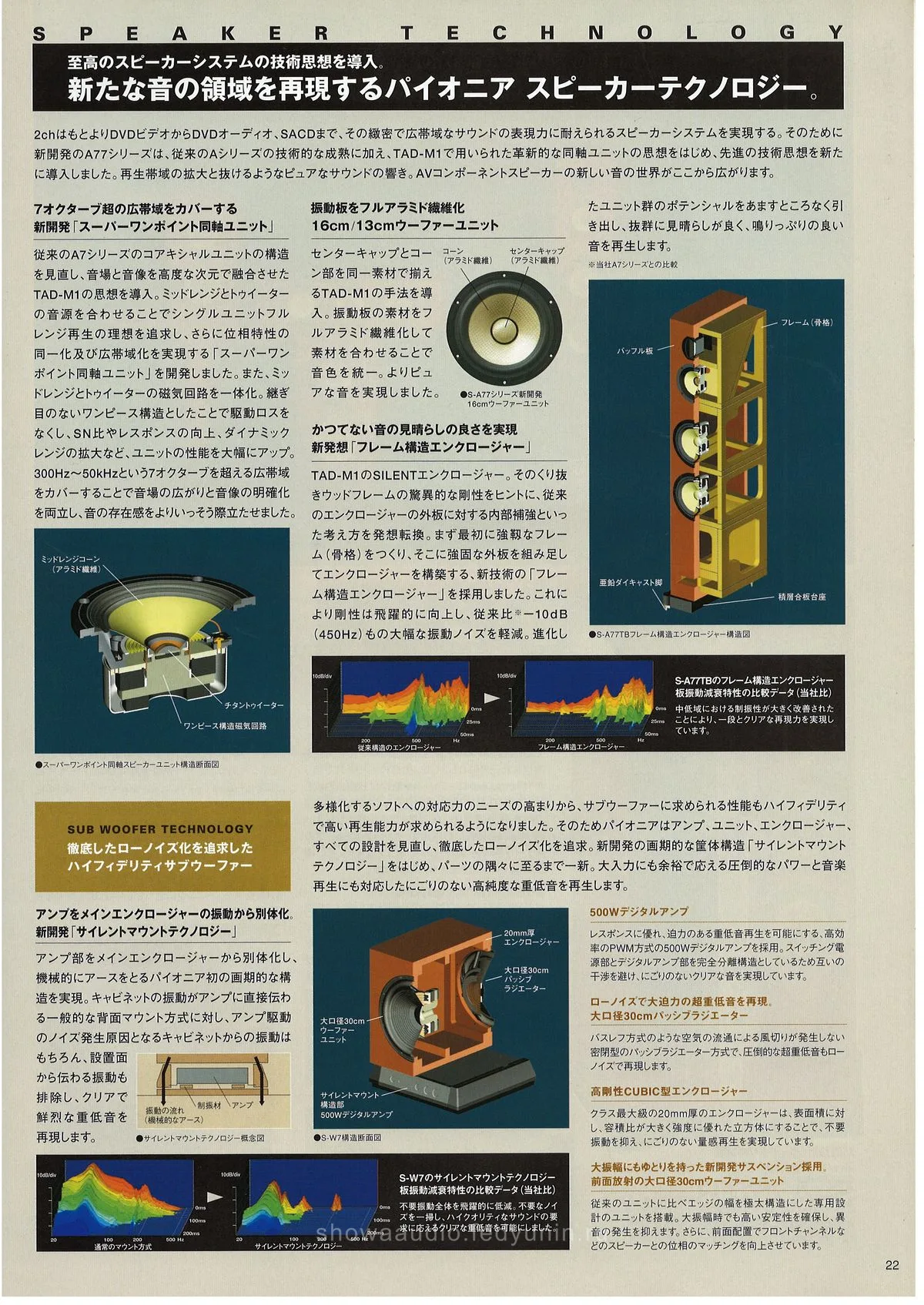

- TAD - TAD (Technical Audio Devices) - Pioneer's professional division. TAD-M1 technology: 7-petal superpoint tweeter brought into the consumer A-series speakers
- スーパーポイント ドライバー - Superpoint driver - TAD-M1 tweeter: 7-petal design replacing the traditional cone, range 500-50000 Hz

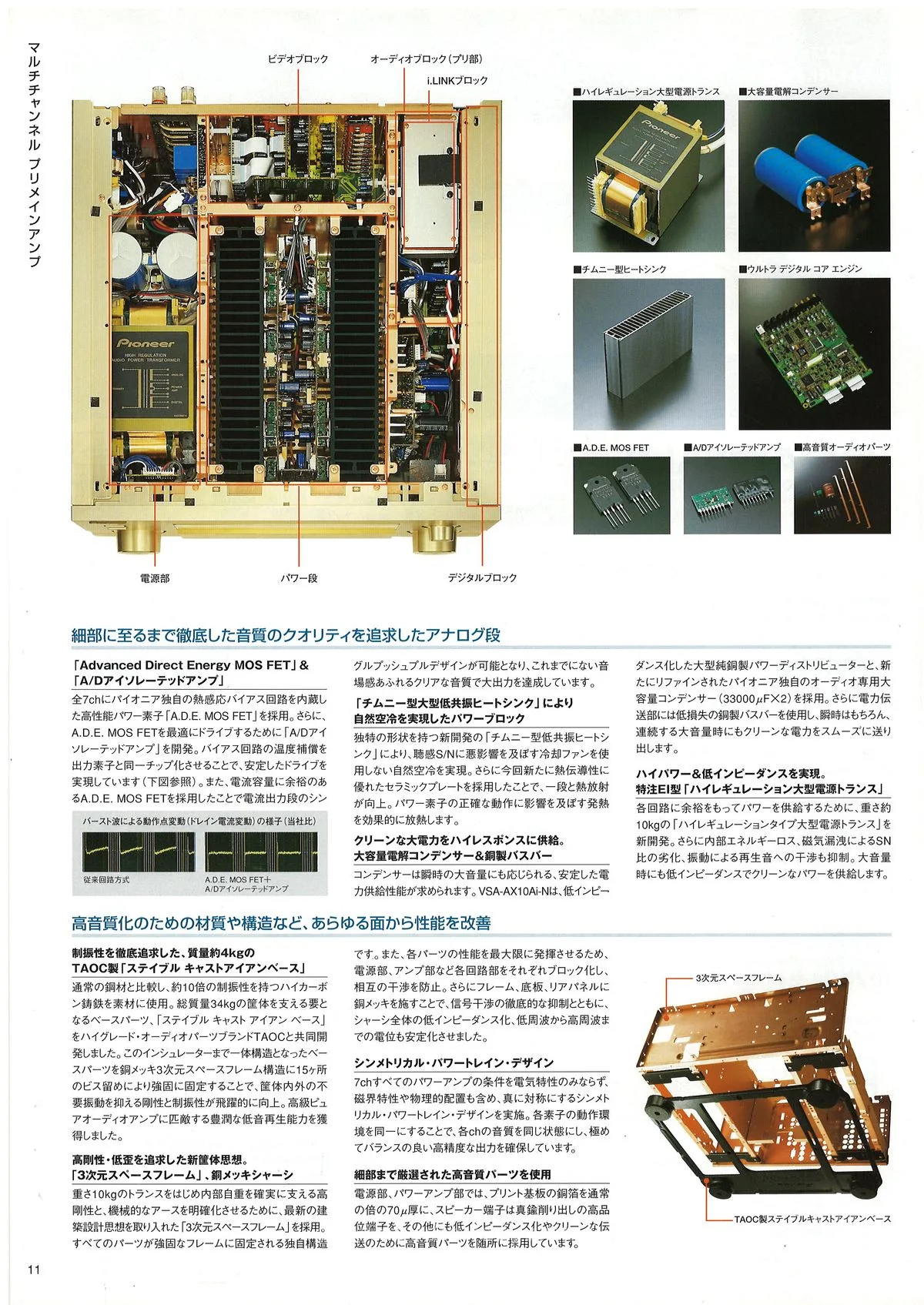

- A.D.E. MOS FET - A.D.E. MOS FET (Advanced Direct Energy) - power amplifier output stage using MOS transistors with direct energy transfer, VSA-AX10Ai-N and VSA-AX5Ai-N

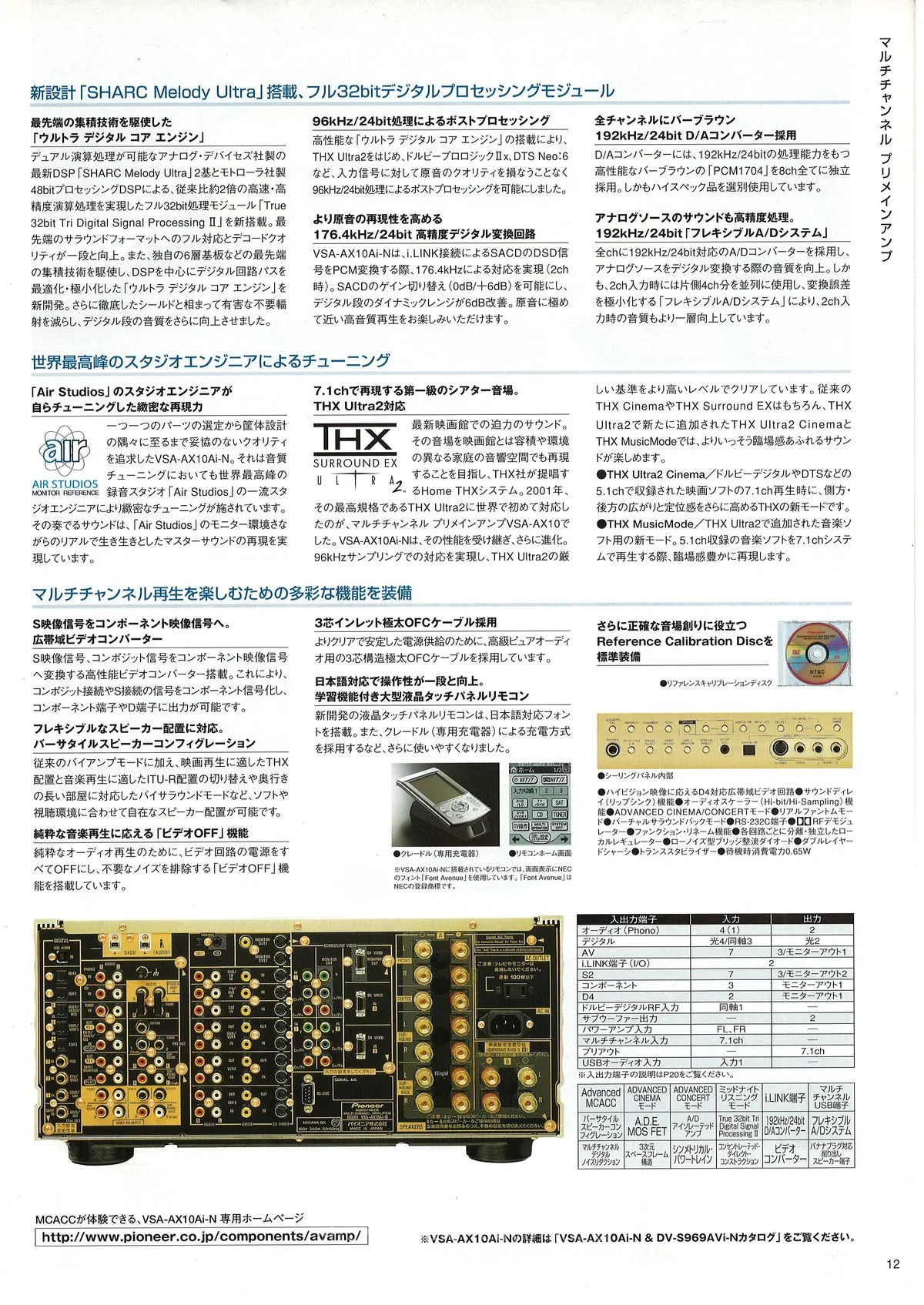

- SHARC メロディ ウルトラ - SHARC Melody Ultra - 32-bit processing module in VSA-AX10Ai-N, 48-bit processing, full SACD/DVD-Audio support via i.LINK
- アクリラスト - Acrylast - acrylic polymer midrange cone material, A-series speakers
- サイレントエンクロジャー - Silent enclosure - die-cast tweeter enclosure in A-series, vibration reduction to -10 dB at 450 Hz
- フレーム強化エンクロジャー - Frame enclosure - reinforced rigid cabinet of the new generation, flagship S-A77TB
- ALCA - ALCA (Auto Level Calibration & Adjustment) - automatic recording level calibration in cassette decks T-D7 and T-W01AR

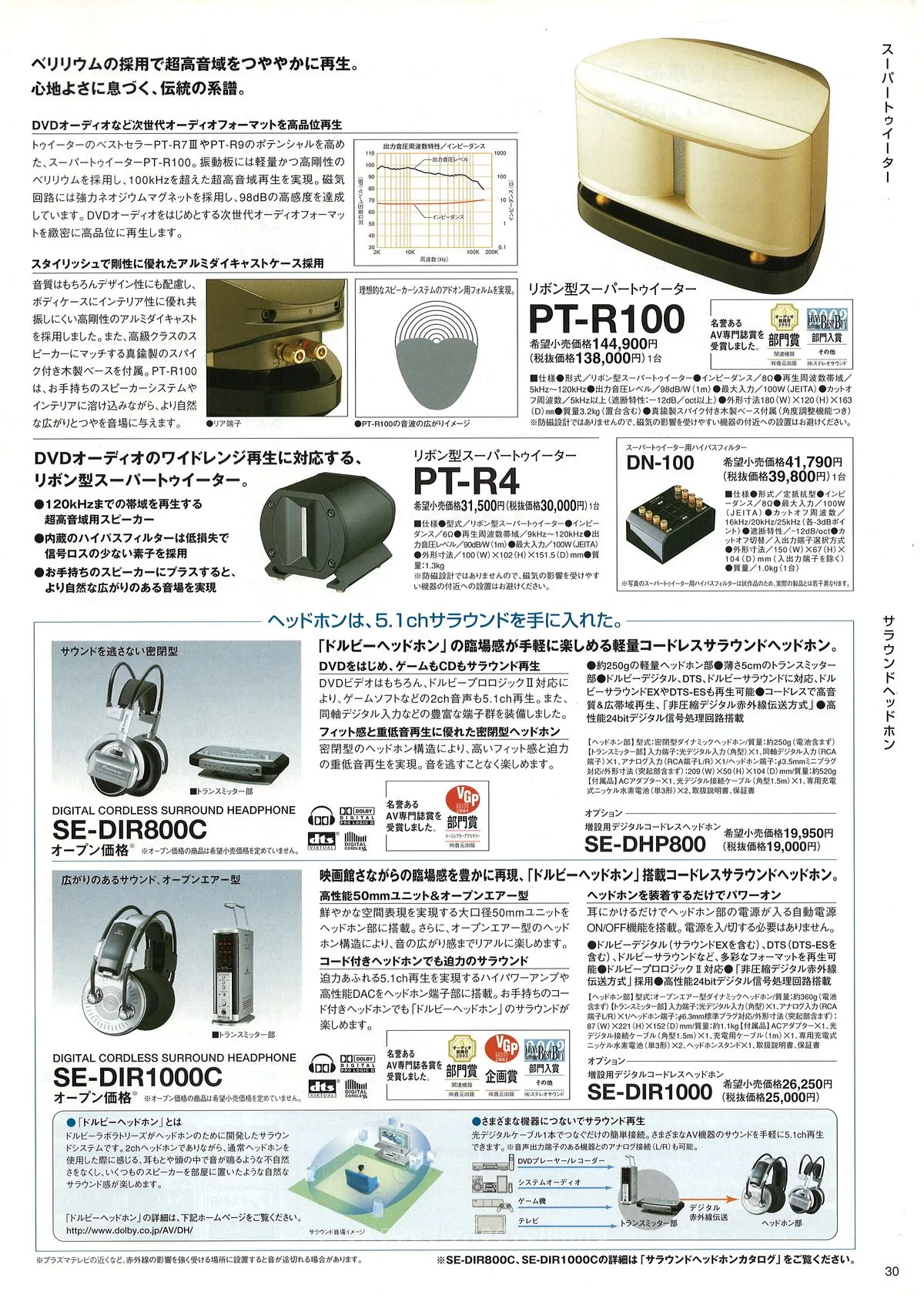

- デジタル コードレス サラウンド - Digital Cordless Surround - wireless digital surround for headphones SE-DIR800C and SE-DIR1000C

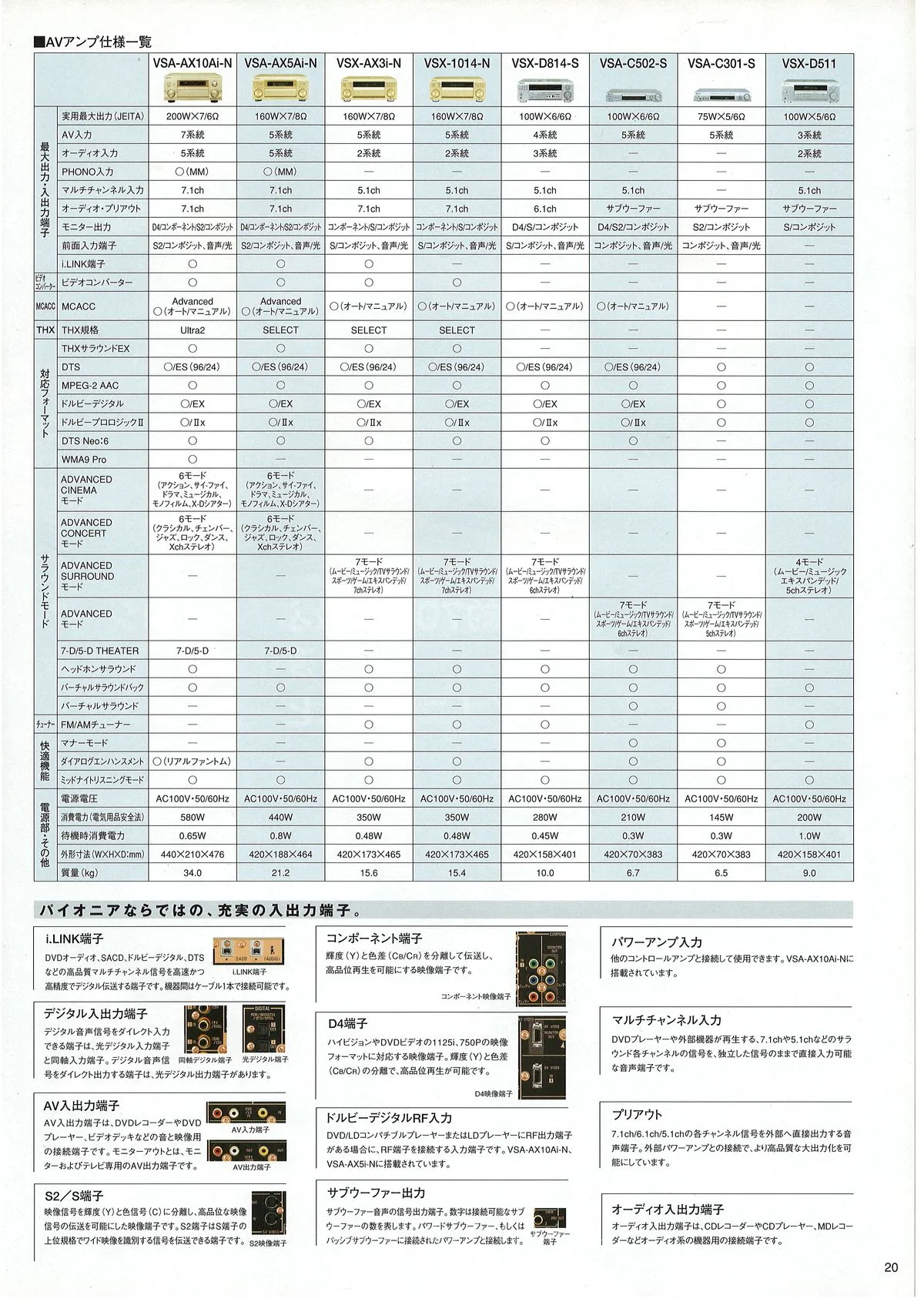

| Model | Type | Price |
|---|---|---|

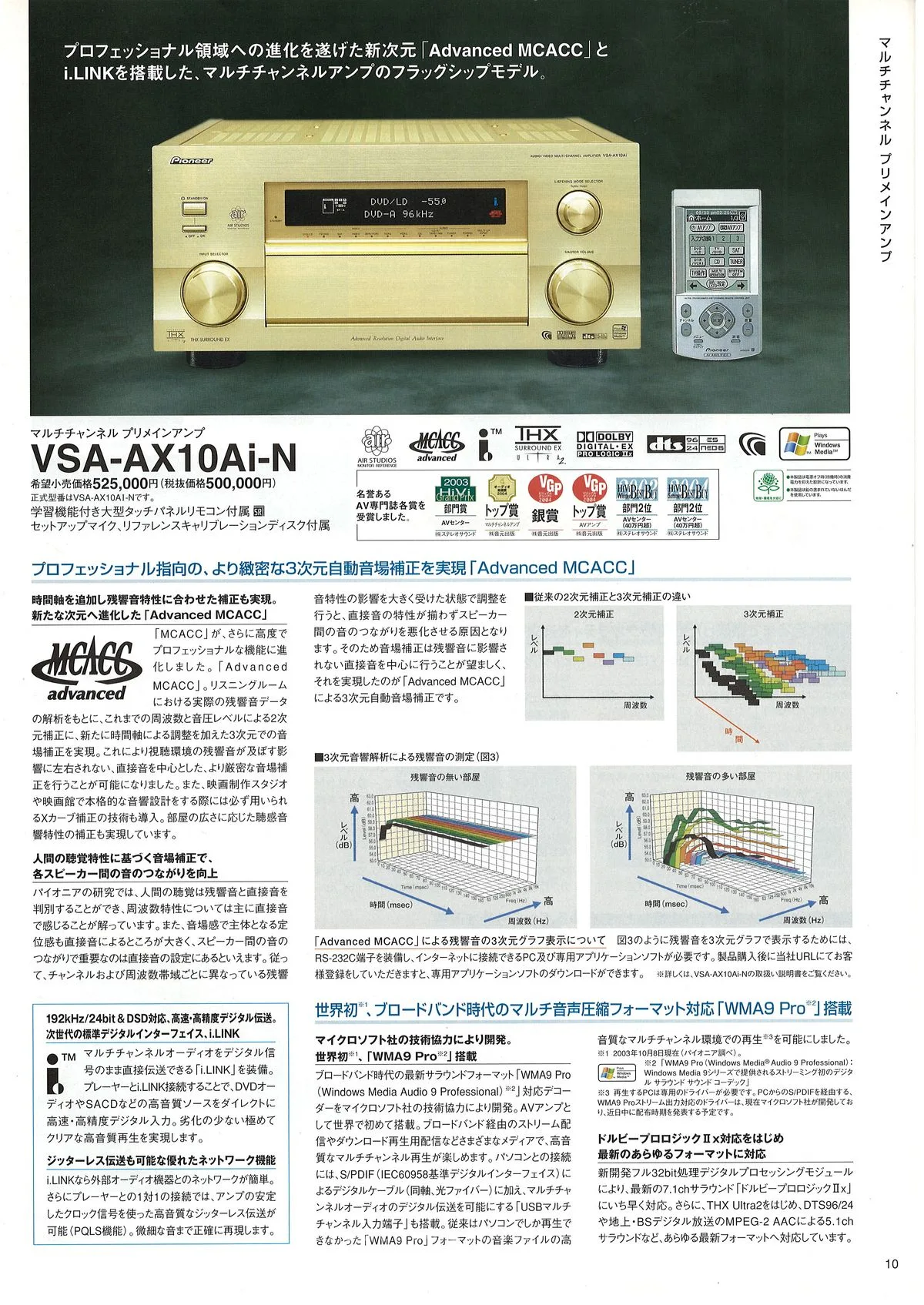

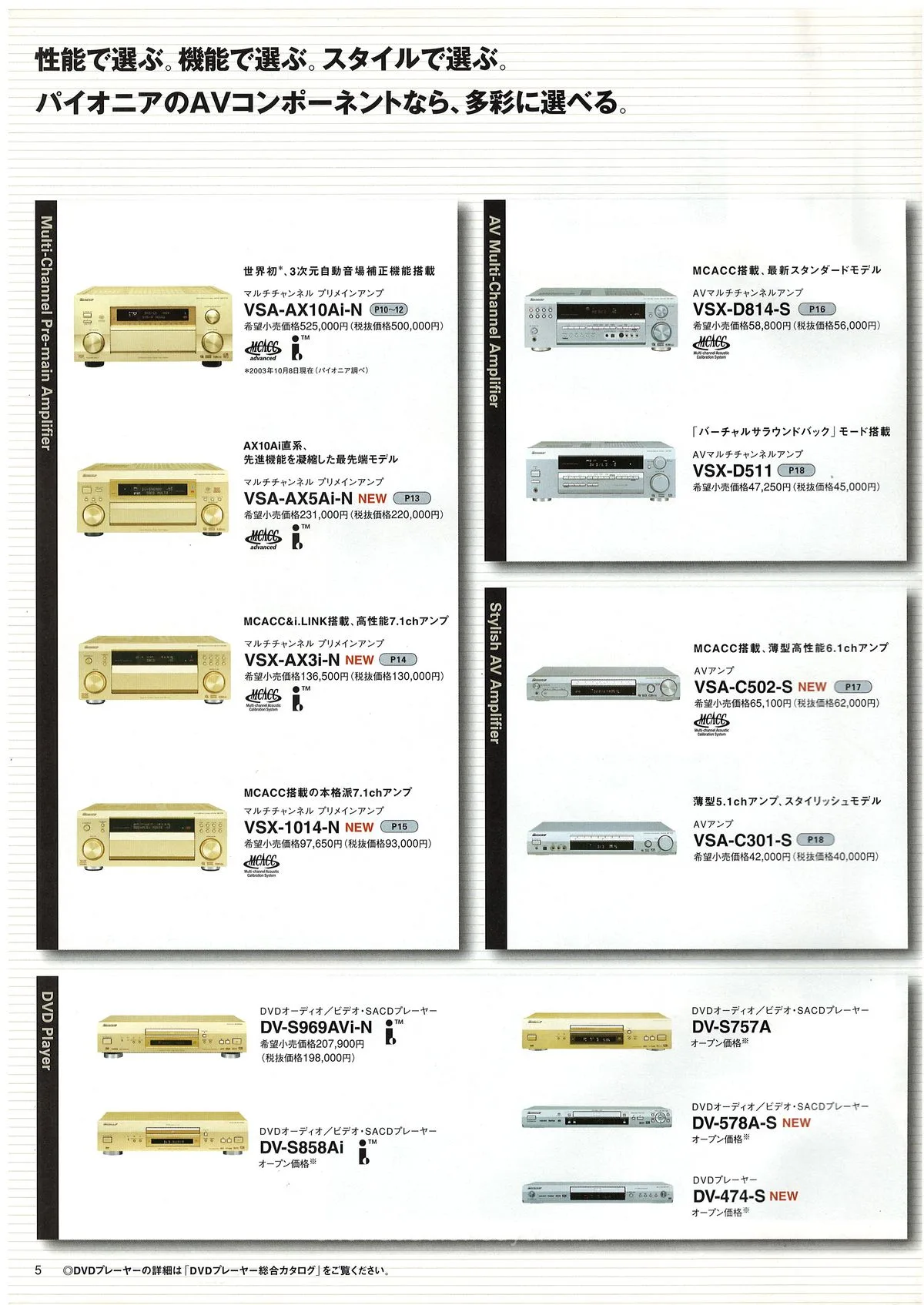

| PIONEER VSA-AX10Ai-N | 7-channel AV amplifier, flagship | ¥525,000 |

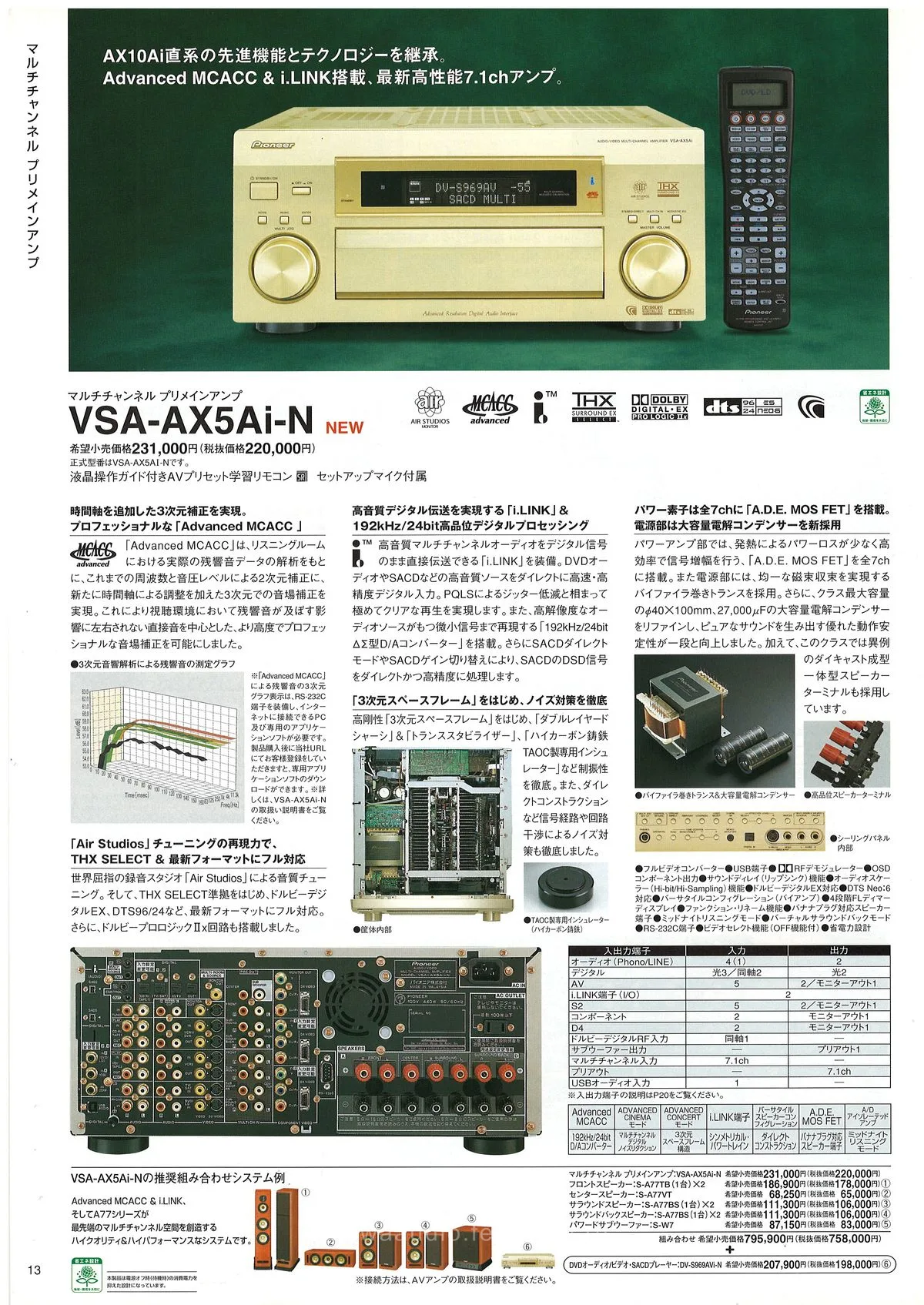

| PIONEER VSA-AX5Ai-N | 7-channel AV amplifier | ¥231,000 |
| PIONEER VSX-AXS-N | 5.8-channel AV amplifier | ¥100,000 |

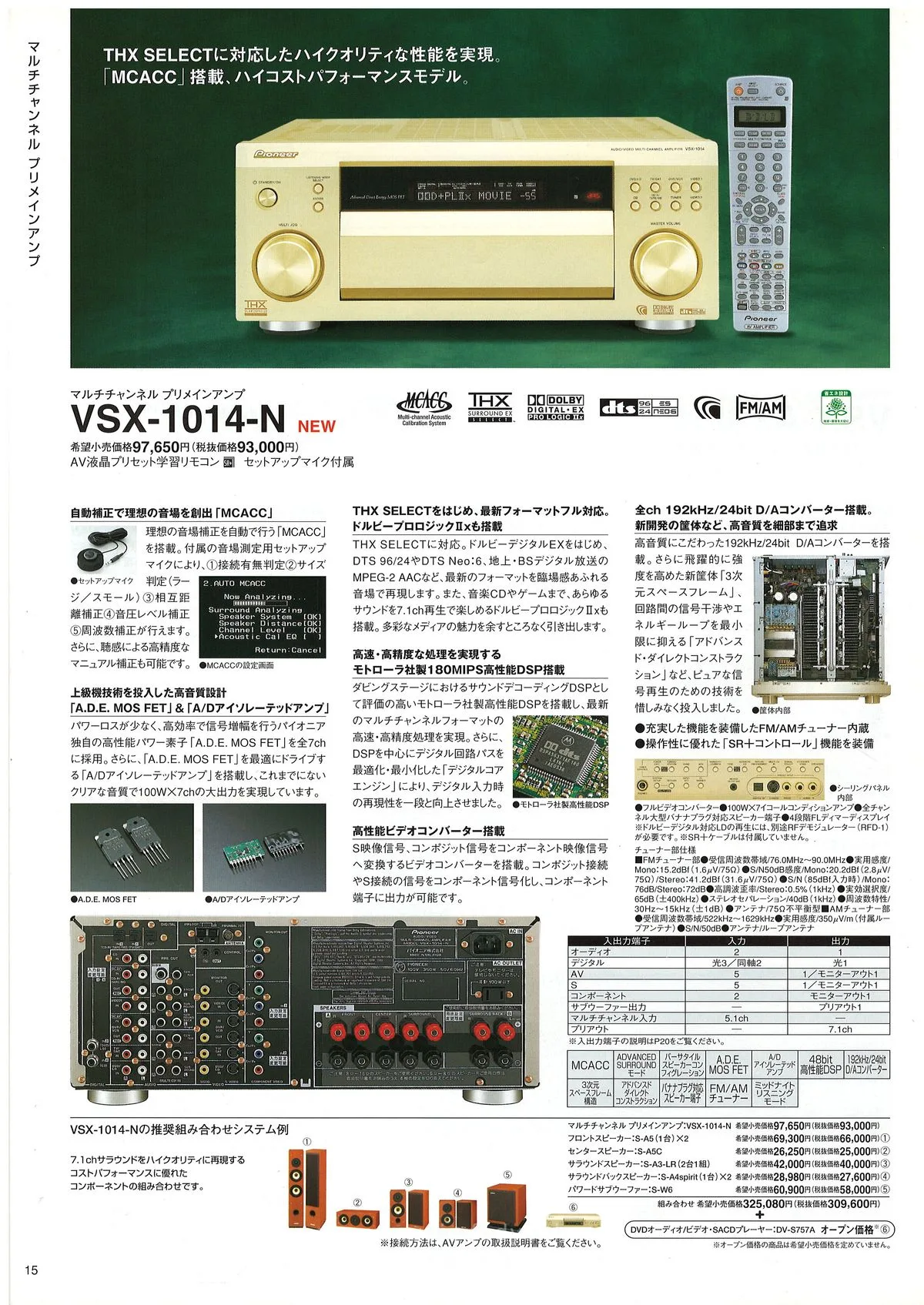

| PIONEER VSX-1014-N | AV amplifier with MCACC and THX SELECT | ¥97,650 |

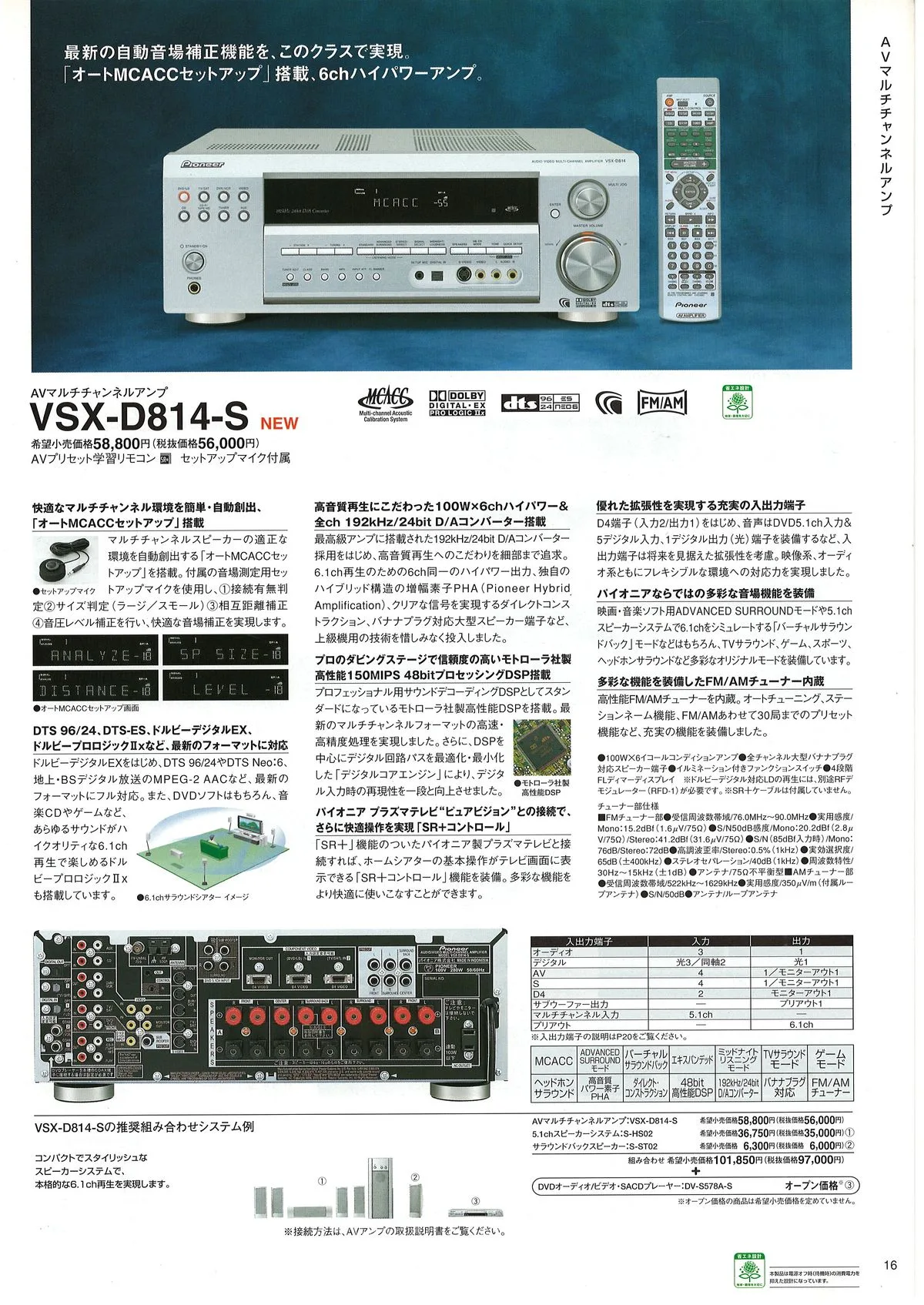

| PIONEER VSX-D814-S | AV amplifier 100W x 6ch | ¥58,800 |

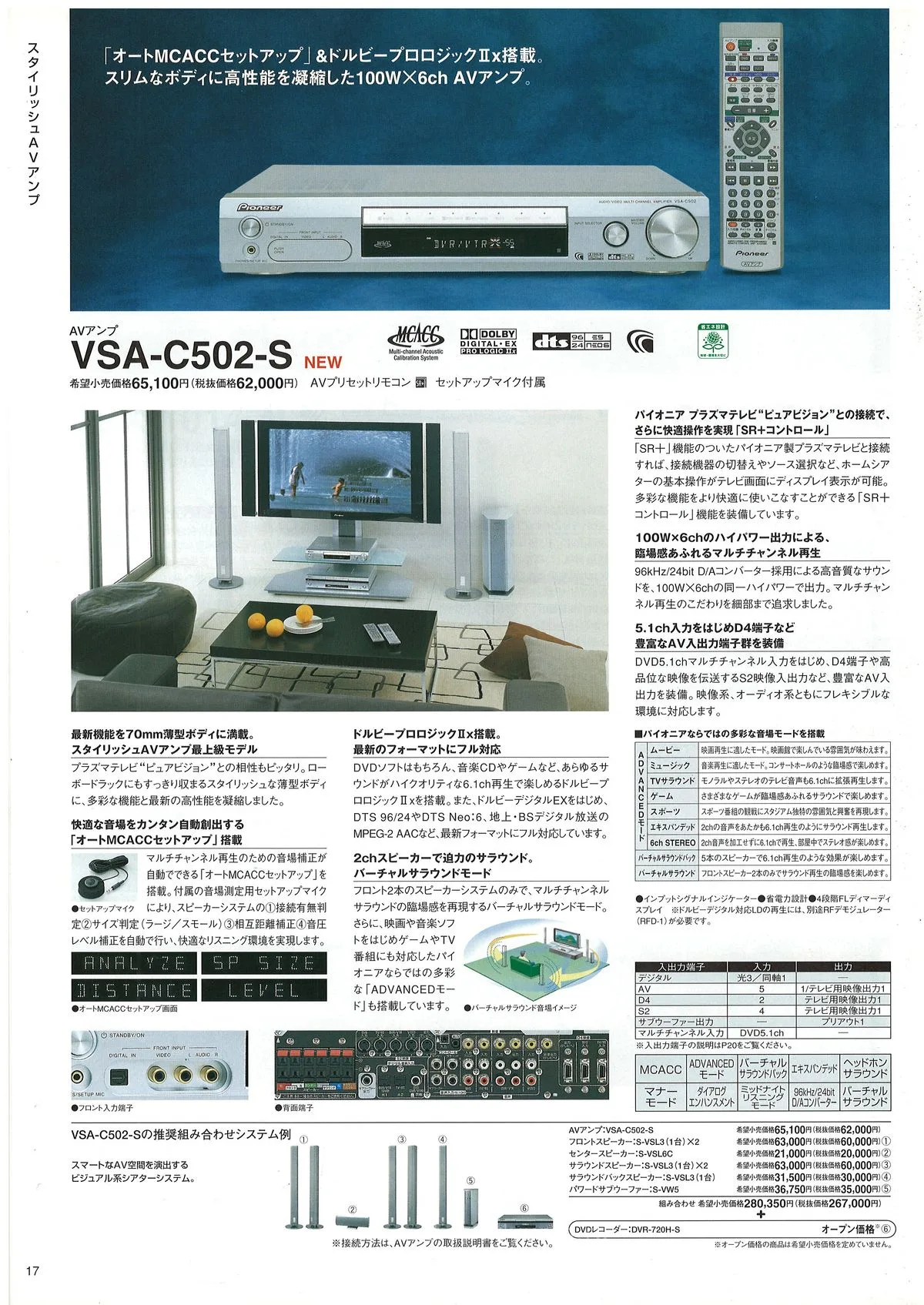

| PIONEER VSA-C502-S | 6-channel AV amplifier slim 70mm | ¥65,100 |

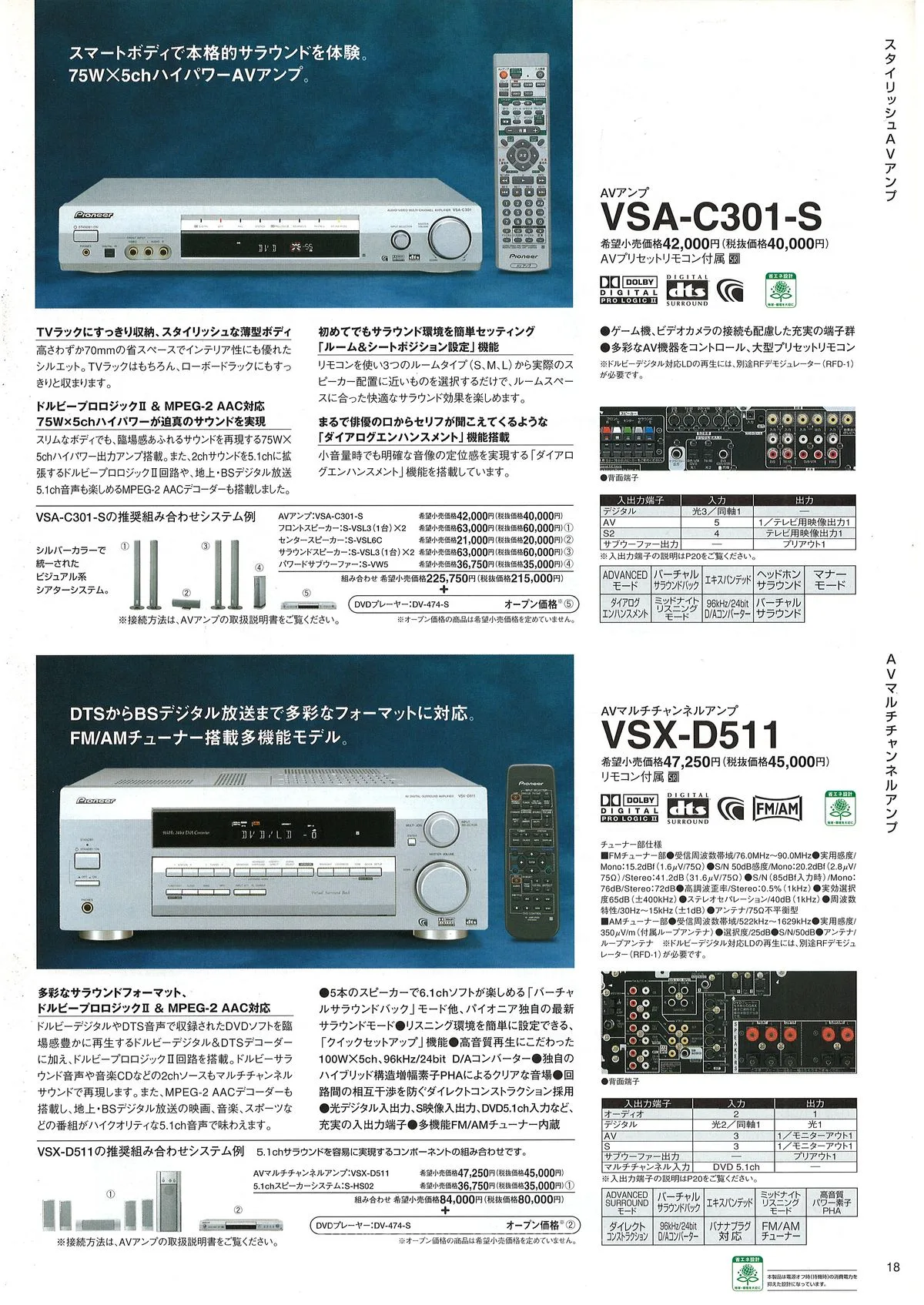

| PIONEER VSA-C301-S | AV amplifier 70W x 5ch | ¥42,000 |

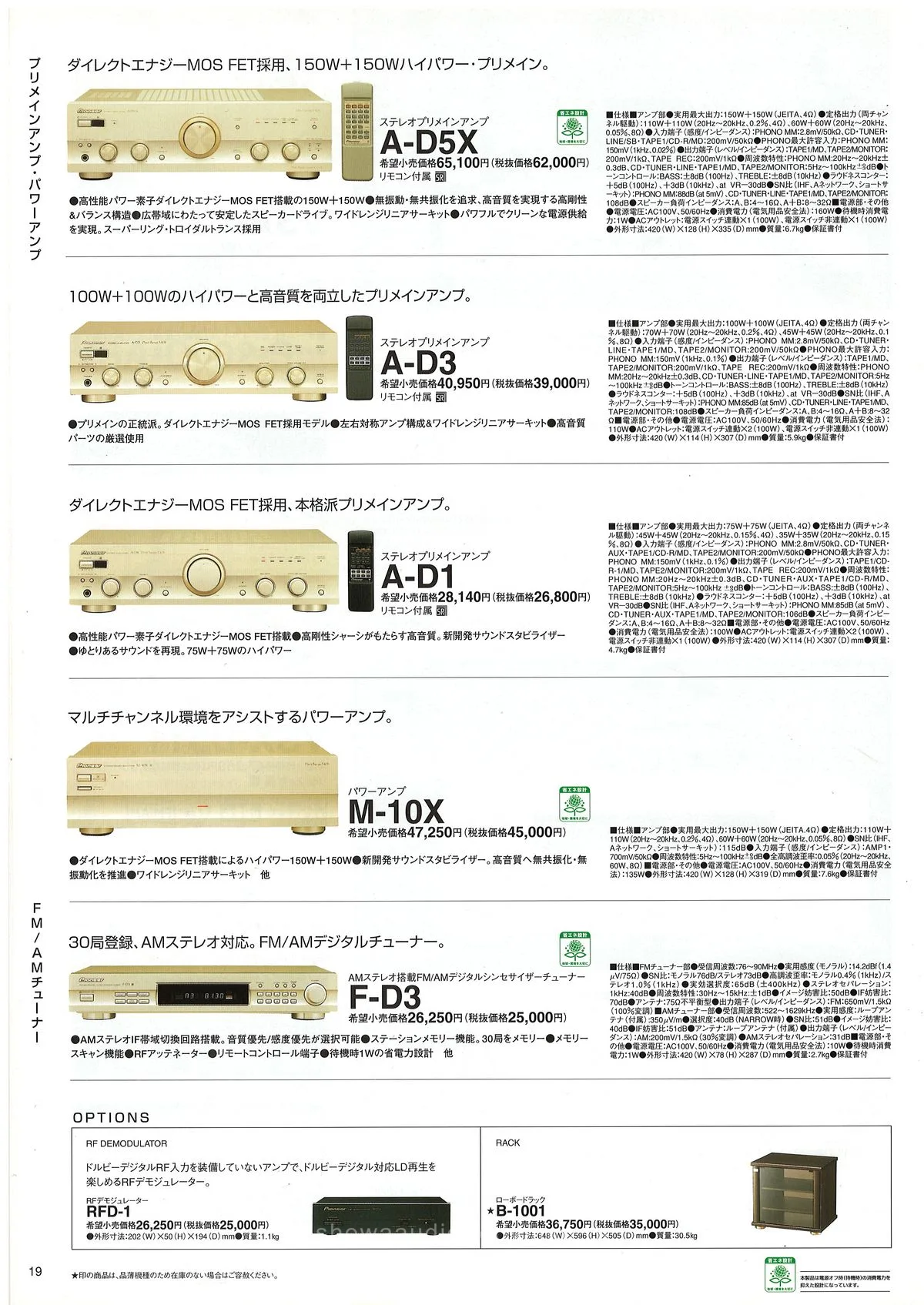

| PIONEER A-D5X | stereo amplifier 150W+150W, Direct Energy MOS FET | ¥82,000 |
| PIONEER A-D3 | stereo amplifier 100W+100W, MOS FET | ¥39,000 |
| PIONEER A-D1 | stereo amplifier, MOS FET Direct Energy | ¥26,000 |
| PIONEER M-10X | stereo power amplifier for multi-channel systems | ¥45,000 |
| PIONEER F-D3 | FM/AM digital tuner with AM Stereo | ¥25,000 |

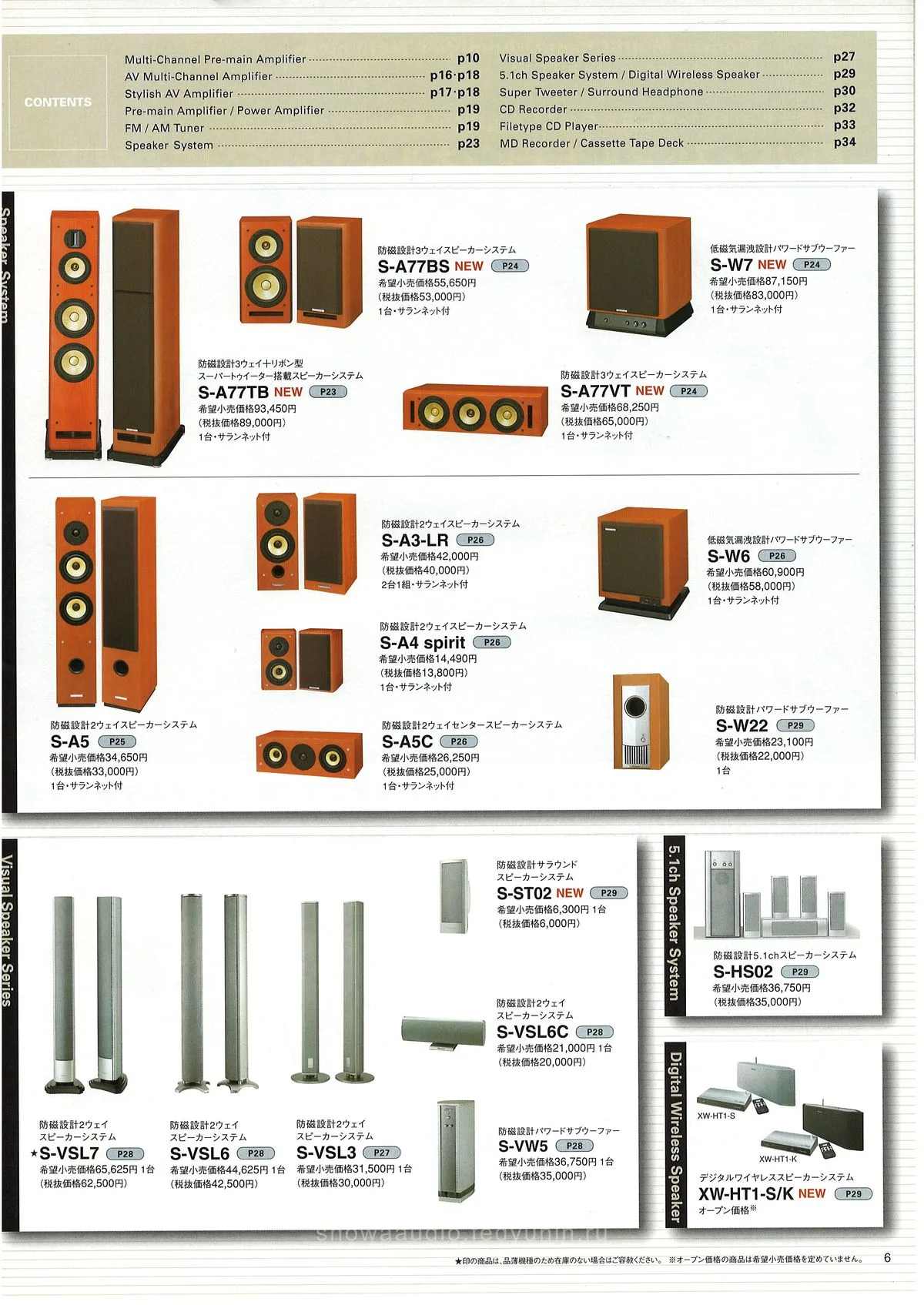

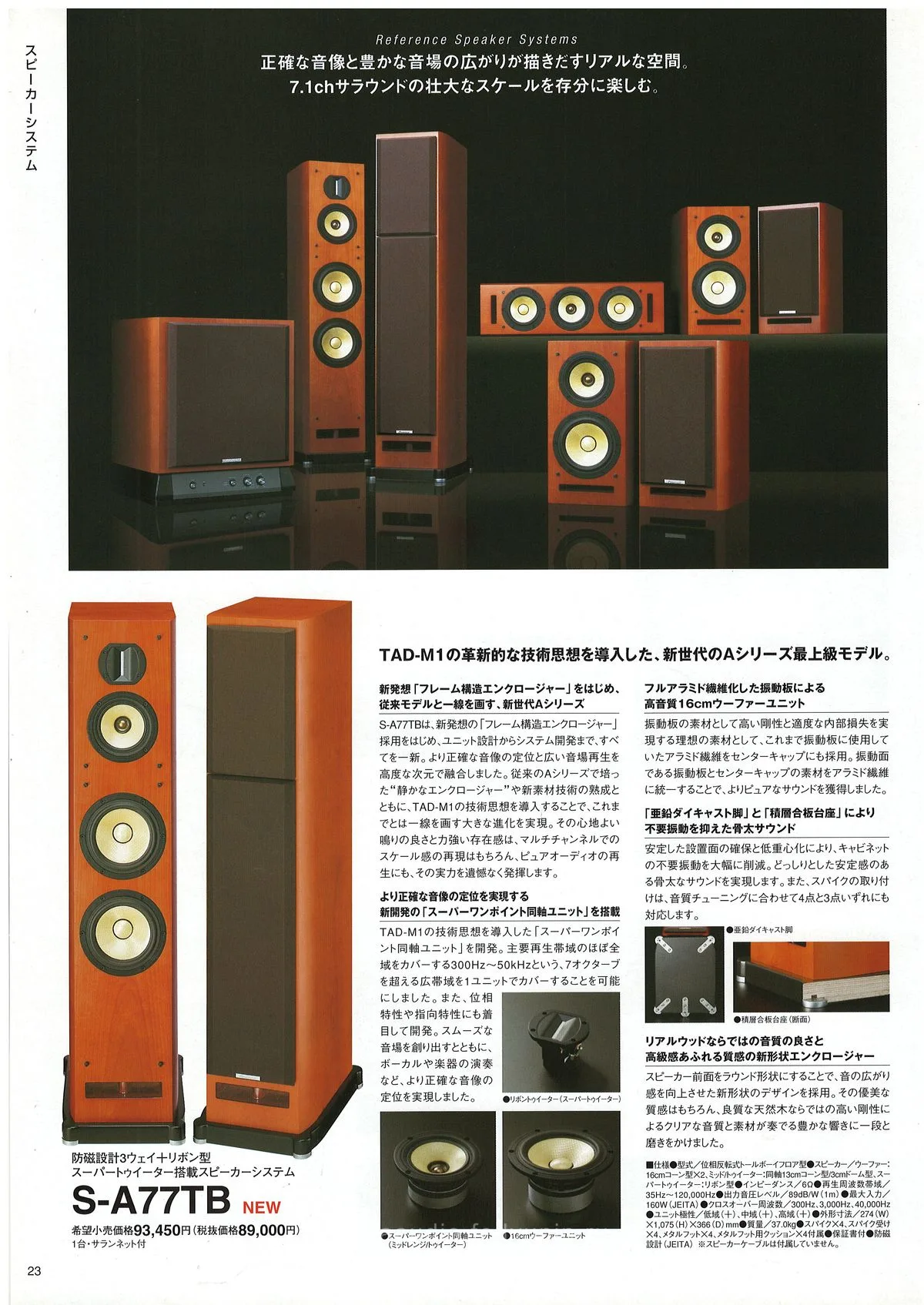

| PIONEER S-A77TB | 3-way floorstanding speaker with subwoofer, A-series flagship, TAD-M1 | ¥93,450/台 |

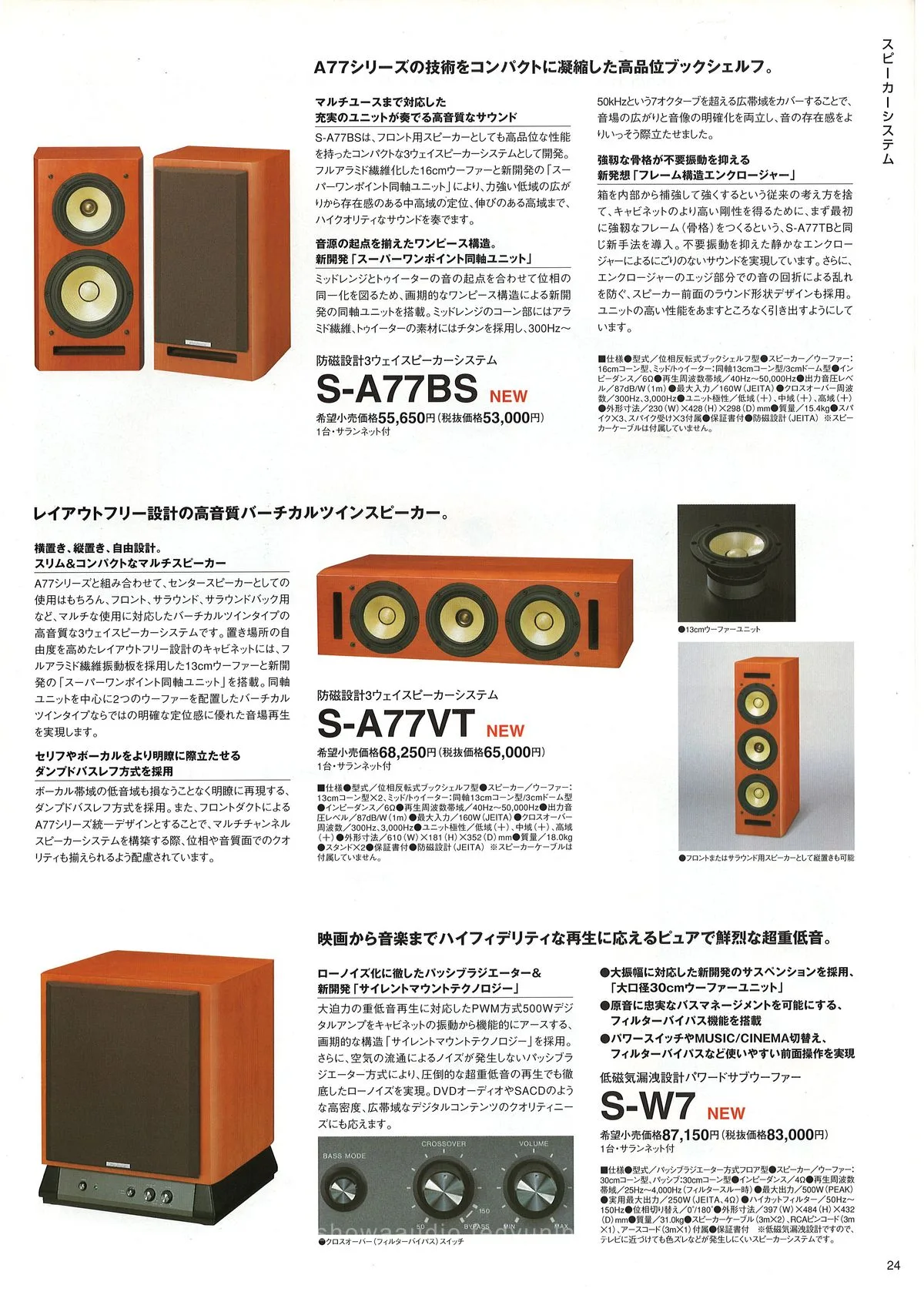

| PIONEER S-A77BS | bookshelf speaker, A-series | ¥33,000 |
| PIONEER S-A77VT | vertical floorstanding speaker, A-series | ¥46,200/台 |

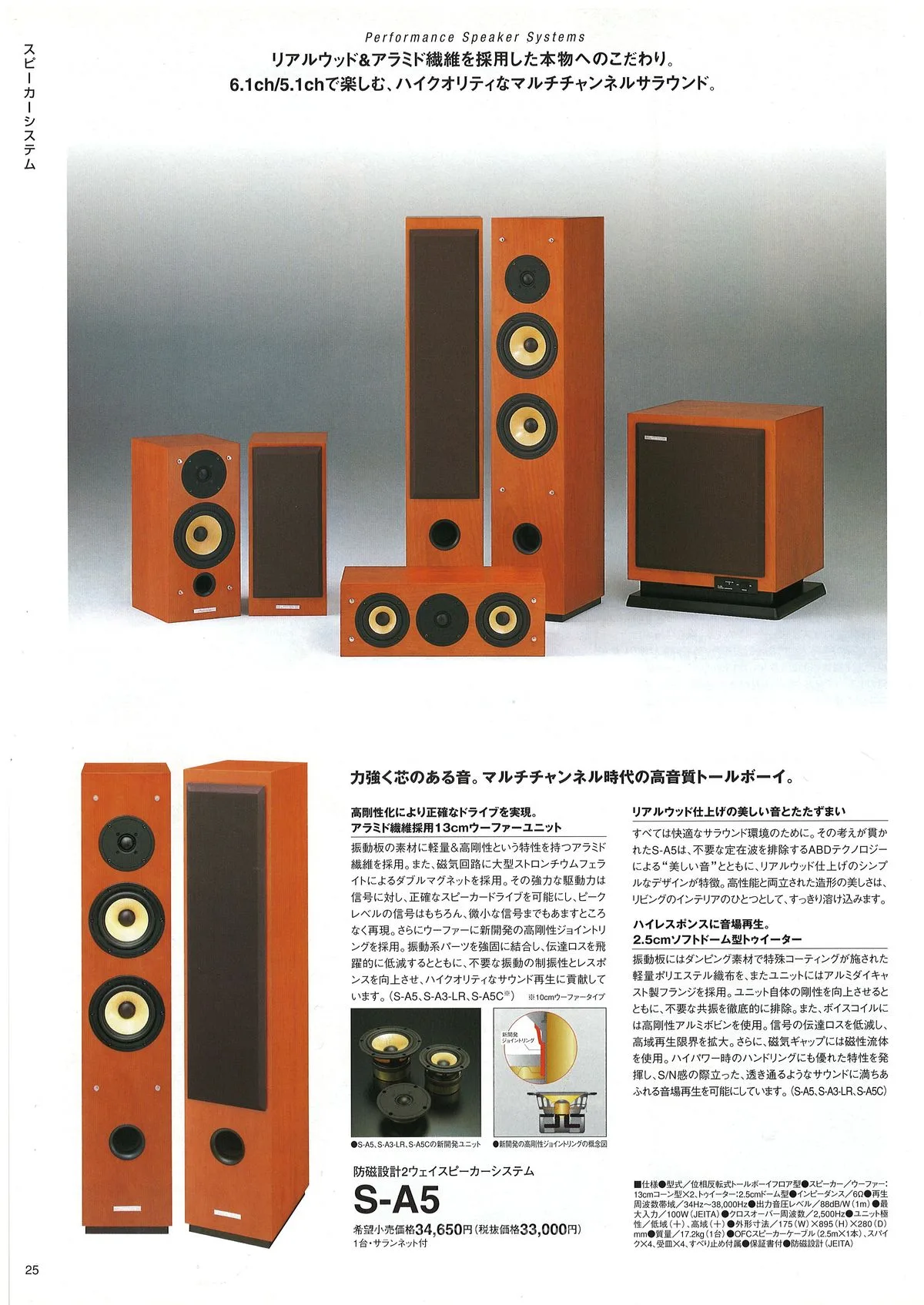

| PIONEER S-A5 | 3-way floorstanding speaker, A-series | ¥43,650/台 |

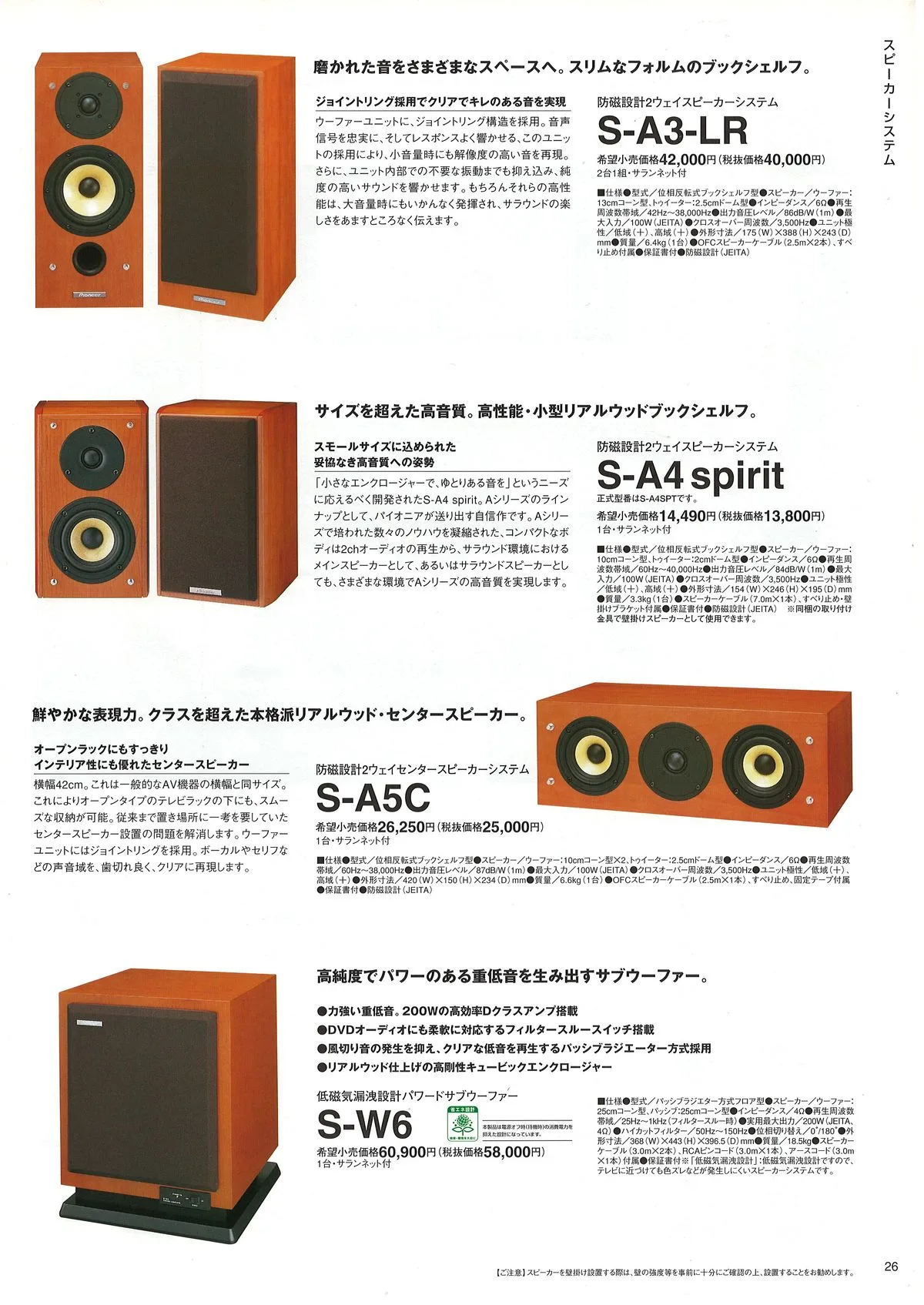

| PIONEER S-A5C | center channel speaker, A-series | ¥25,000 |
| PIONEER S-W7 | powered subwoofer | ¥87,150 |

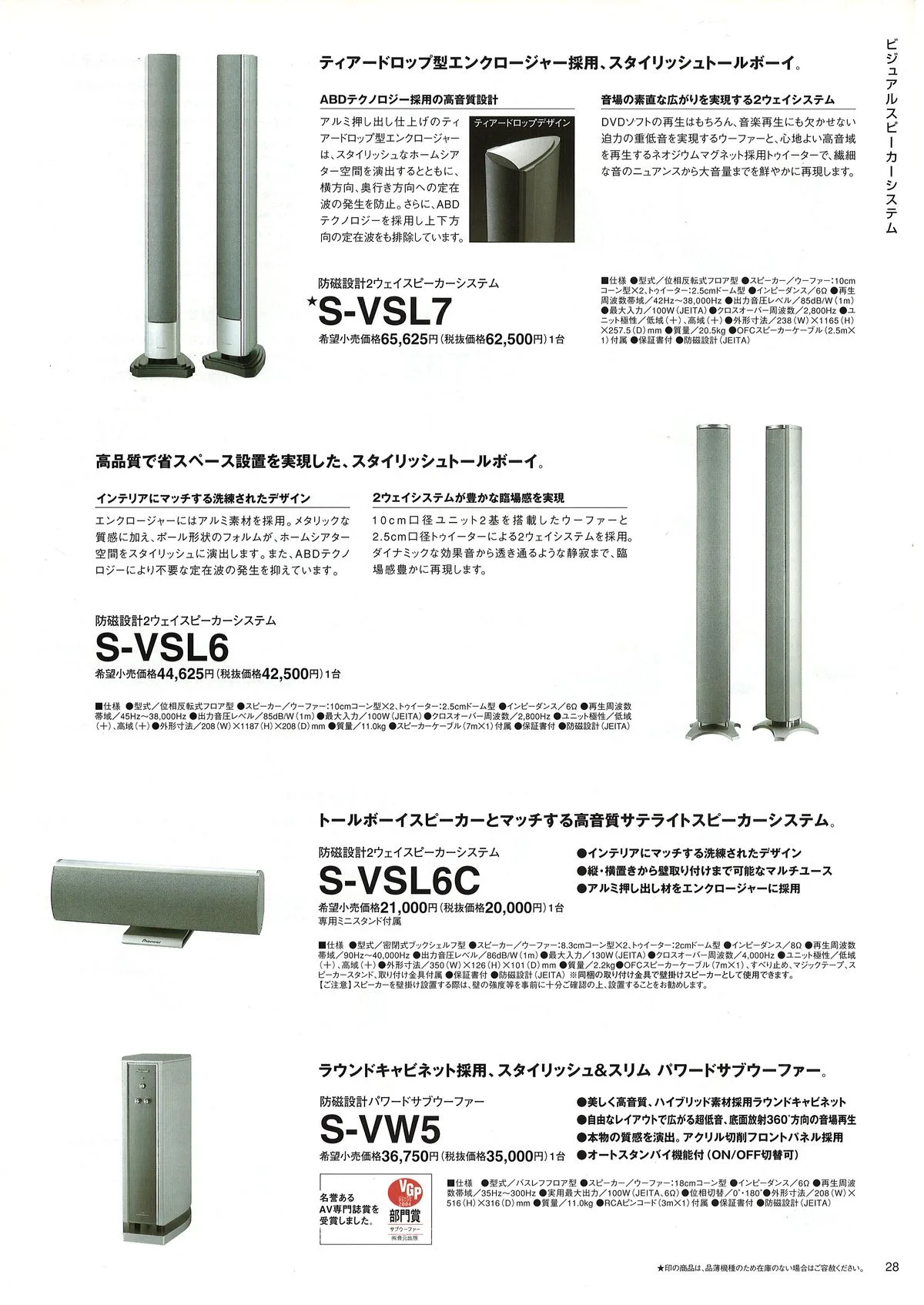

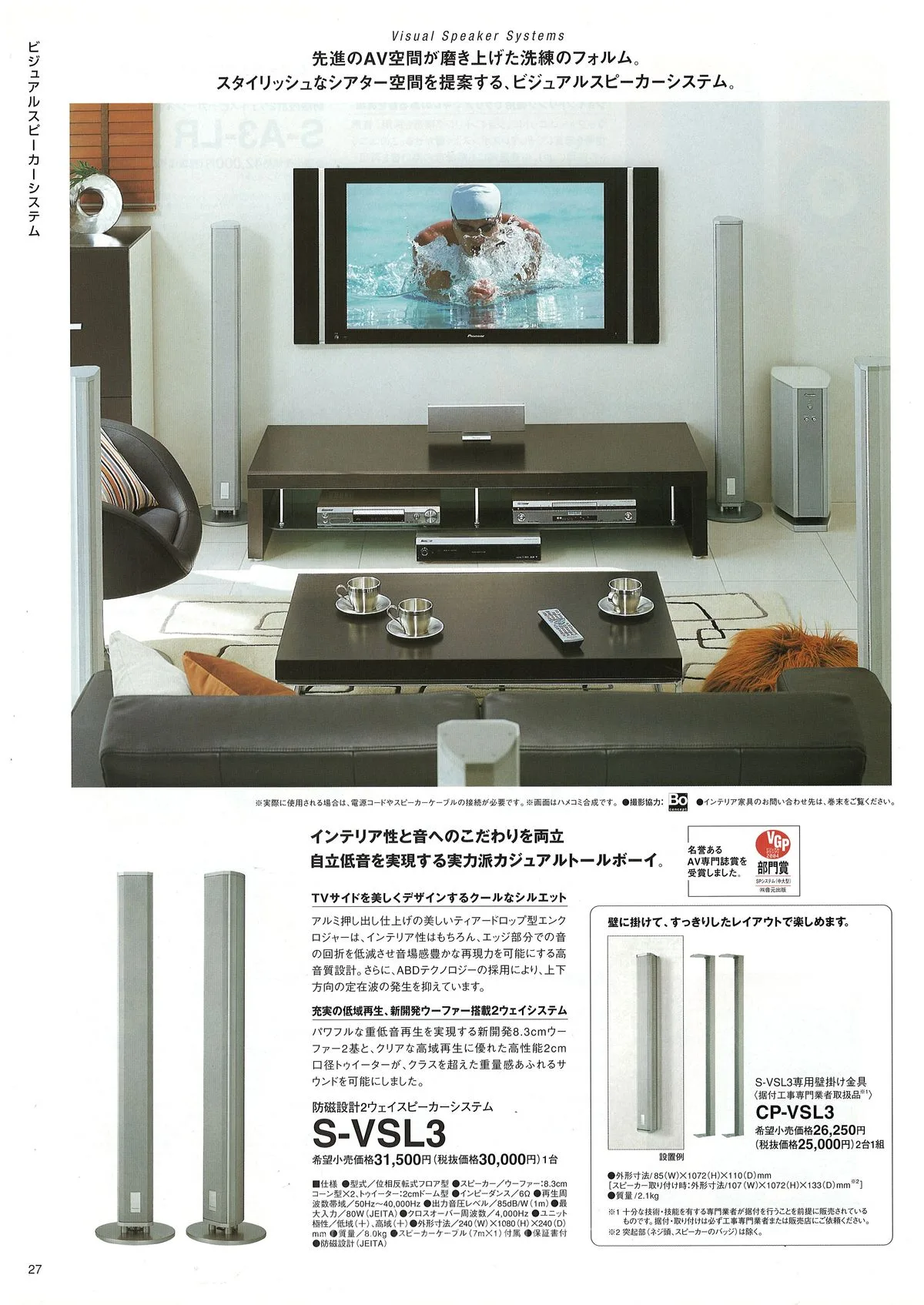

| PIONEER S-VSL3 | slim floorstanding speaker, Visual Speaker System | ¥31,500/台 |
| PIONEER S-VSL7 | floorstanding speaker, Visual Speaker System | ¥29,400/台 |

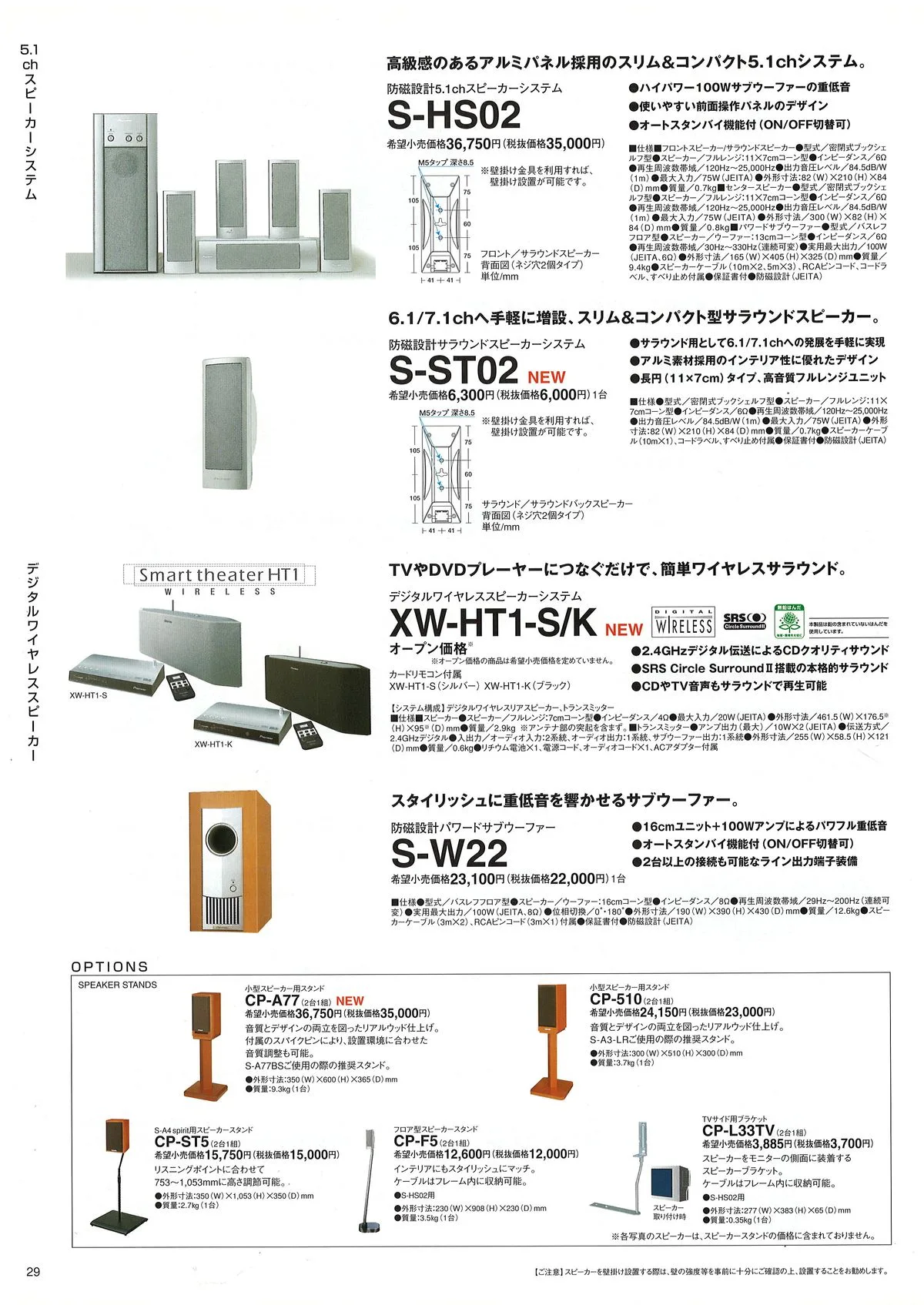

| PIONEER S-HS02 | compact 5.1ch system with aluminum enclosures | ¥35,700 |
| PIONEER DV-S969AVi | DVD/SACD player with i.LINK, flagship | ¥107,100 |

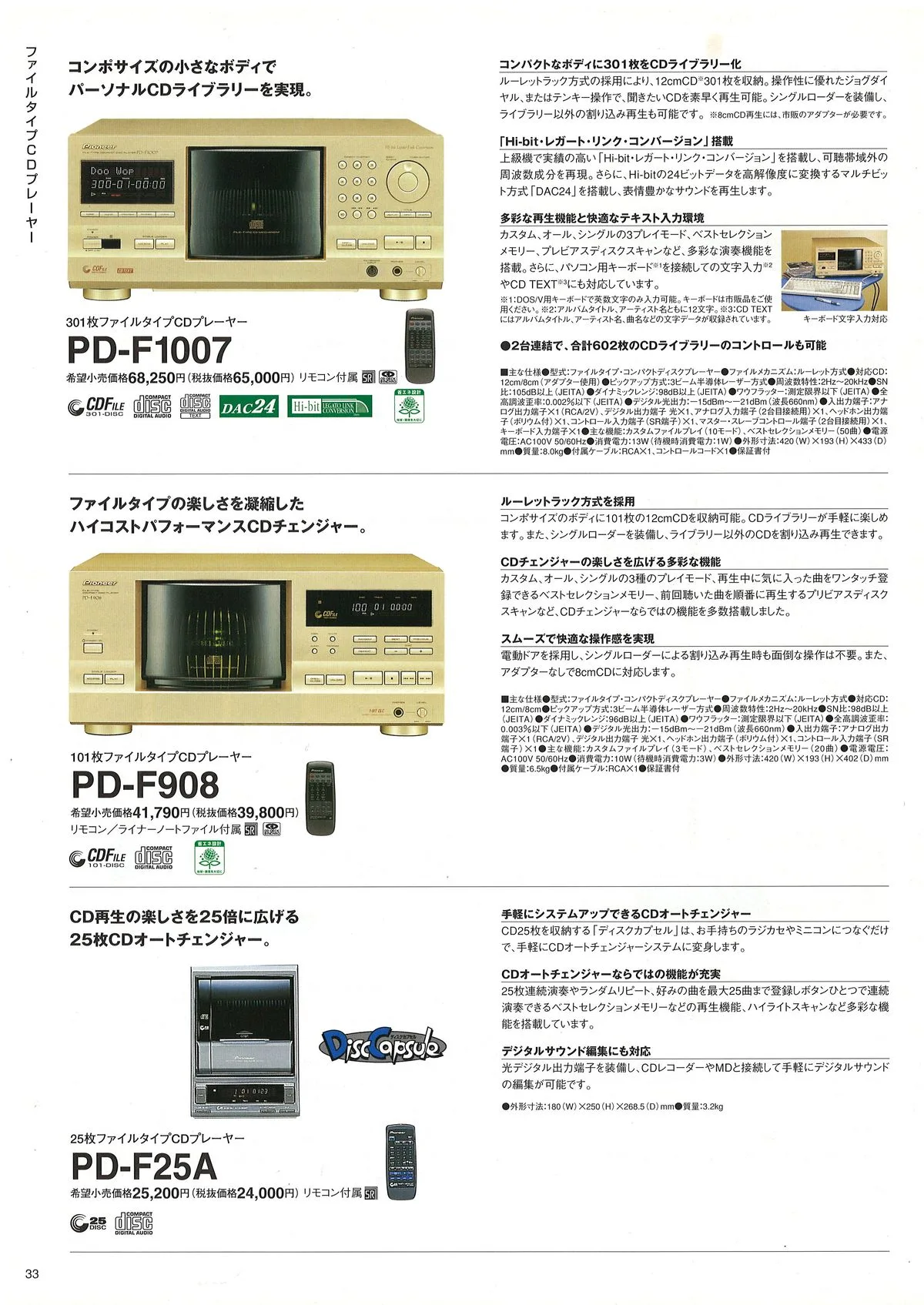

| PIONEER PD-F1007 | 301-disc file-type CD changer | ¥68,250 |
| PIONEER PD-F908 | 102-disc file-type CD changer | ¥41,790 |
| PIONEER PD-F25A | 25-disc file-type CD changer | ¥25,200 |

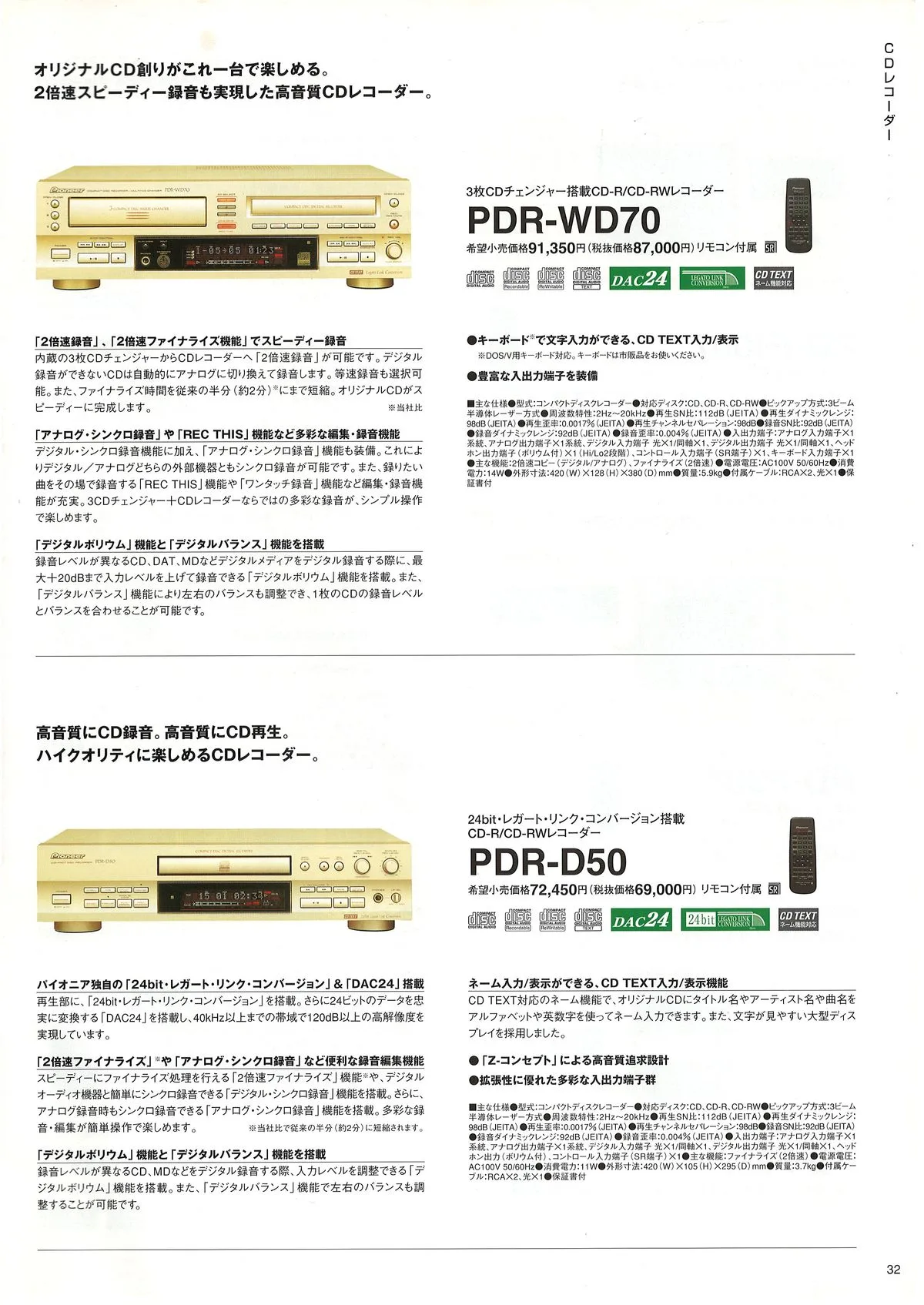

| PIONEER PDR-WD70 | 2-deck CD recorder 3x speed, DAC24 | ¥81,900 |
| PIONEER PDR-D50 | single-deck CD recorder, 24-bit | ¥72,450 |

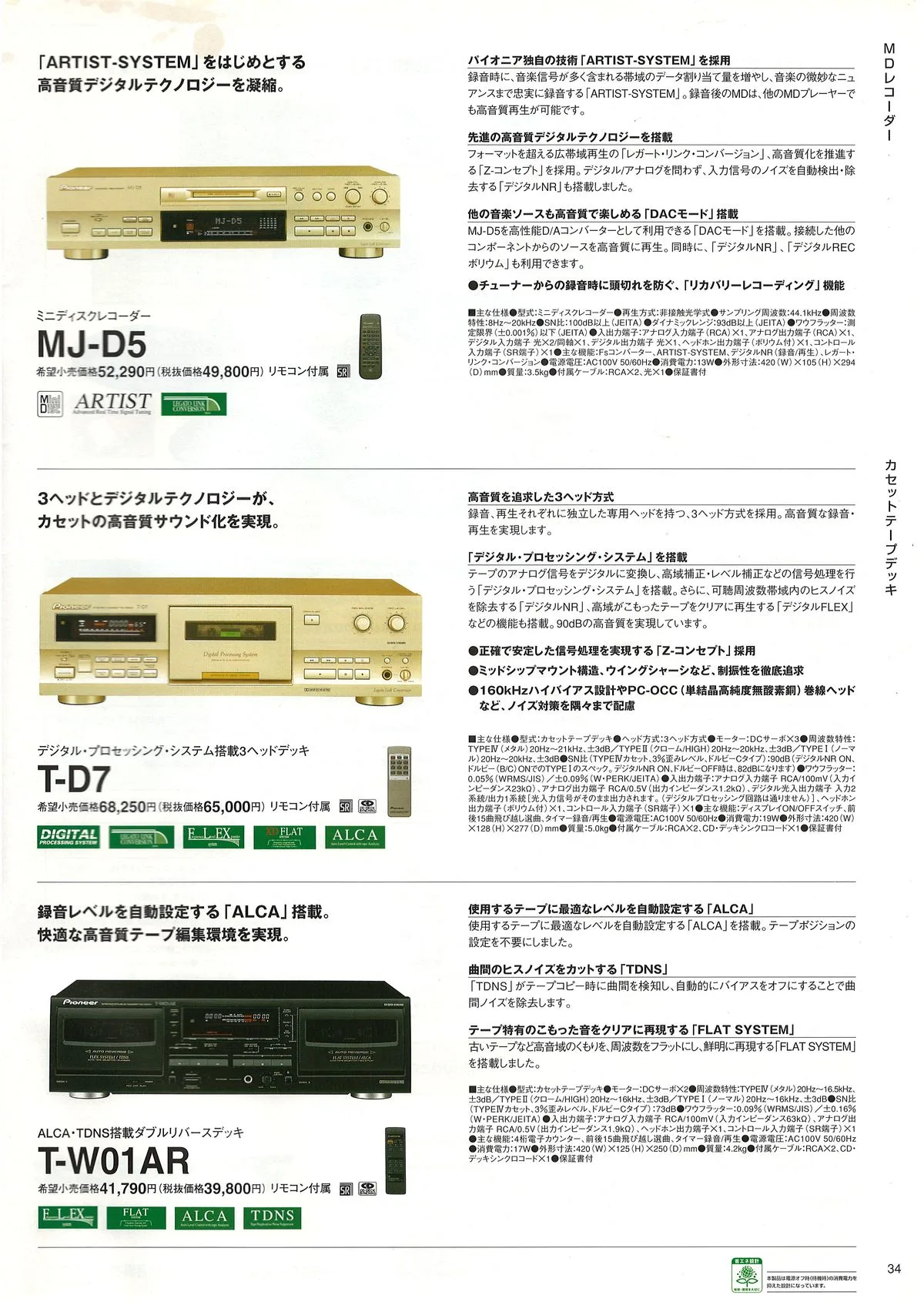

| PIONEER MJ-D5 | MD recorder with ARTIST System | ¥52,290 |
| PIONEER T-D7 | cassette deck 3-head with digital processing and ALCA | ¥46,200 |
| PIONEER T-W01AR | cassette deck with ALCA and FLAT SYSTEM | ¥41,790 |
昭和79年11月（2004 November）34G-5108-C
