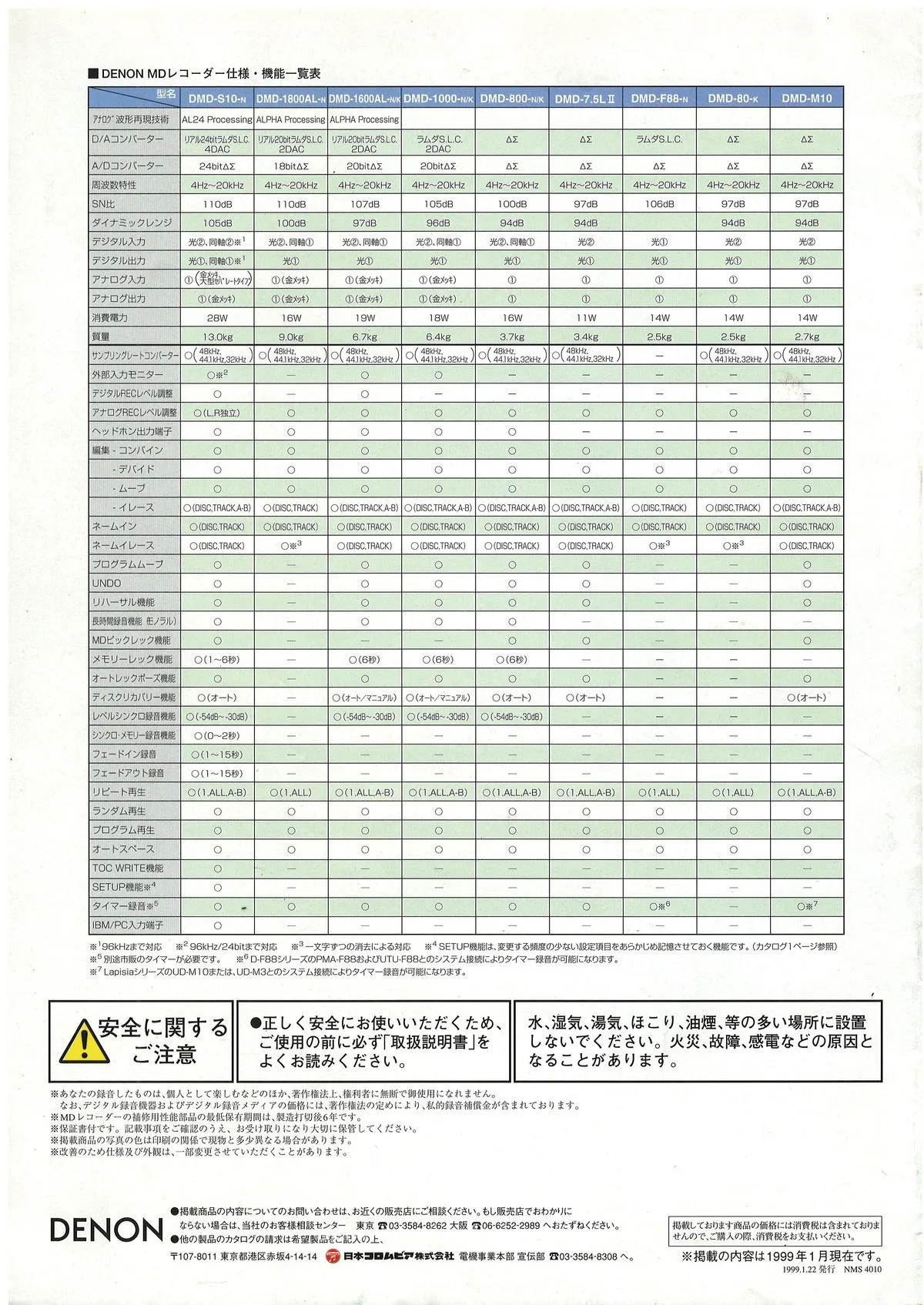

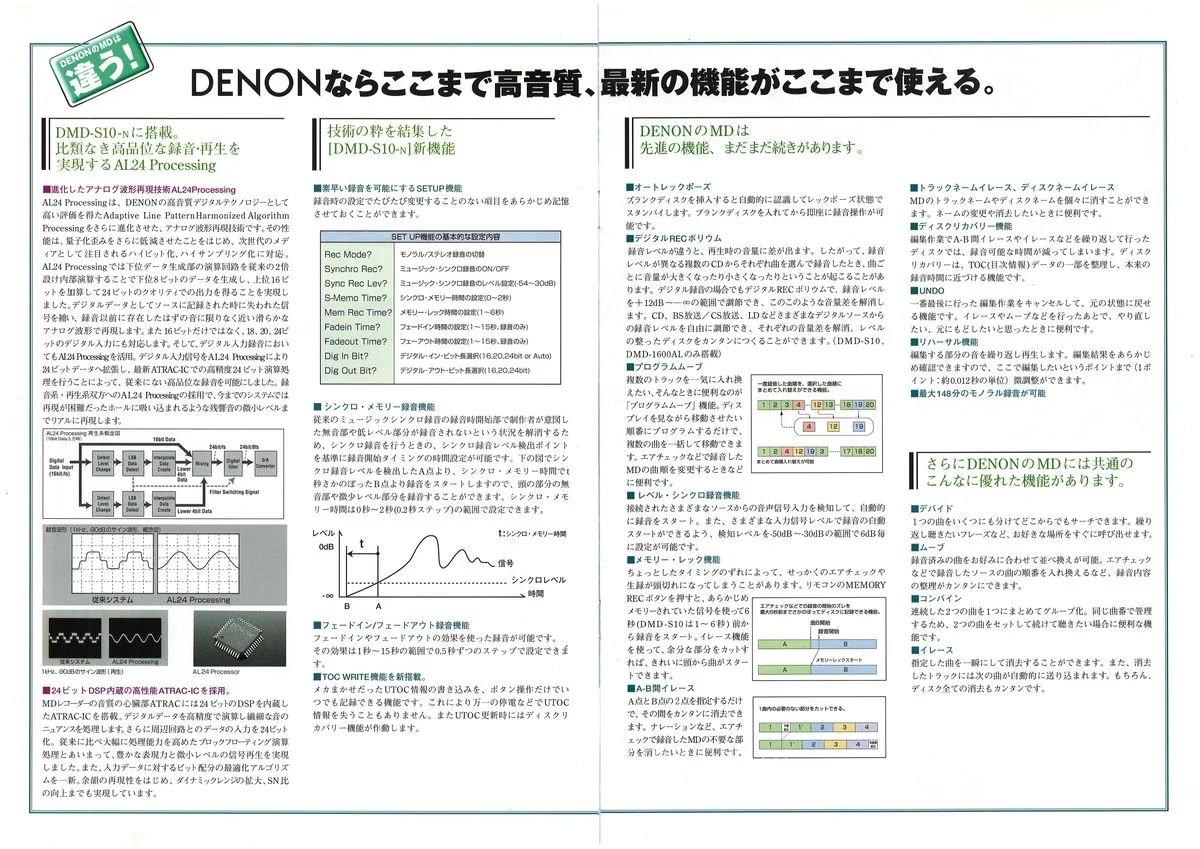

A 12-page booklet - the comprehensive catalog of DENON’s entire MD recorder lineup, issue No.4, January 1999. The flagship DMD-S10-N runs the proprietary AL24 Processing and a 24-bit 4DAC (110 dB SN, mono recording up to 148 minutes), below it the DMD-1800AL-N and DMD-1600AL-N/K use the ALPHA processor with a real 20-bit ΛS.L.C., then the DMD-1000-N/K, the budget DMD-800-N/K and the compact/system DMD-7.5LII, DMD-F88-N, DMD-80-K and DMD-M10. The first spread is entirely about AL24 Processing and the common MD recording and editing functions (program move, memory rec, synchro memory, level synchro, TOC write, disc recovery), and the back cover carries a large comparison table covering all nine base models. Prices run from ¥48,000 for the DMD-M10 to ¥230,000 for the DMD-S10-N, catalog number NMS 4010.

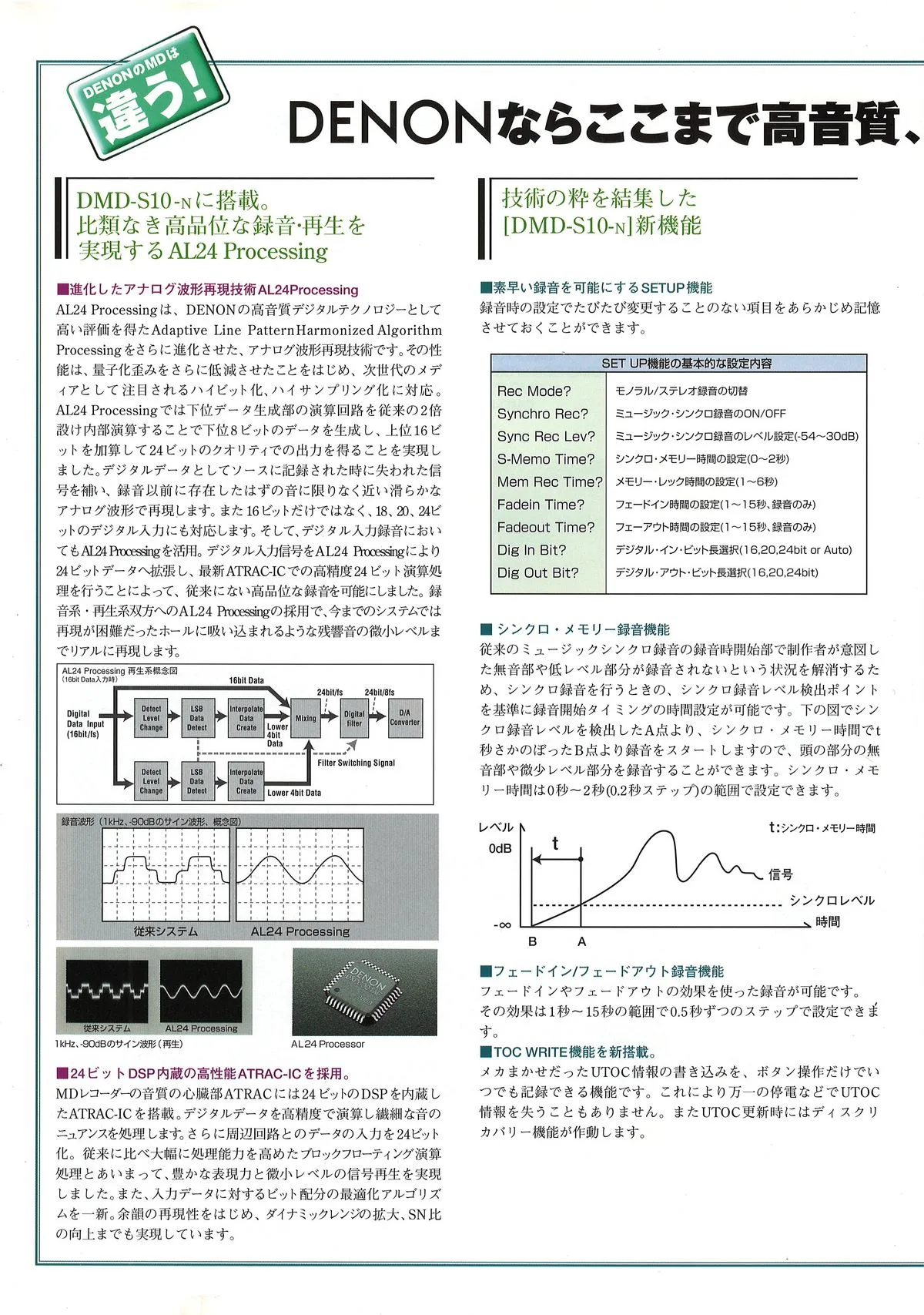

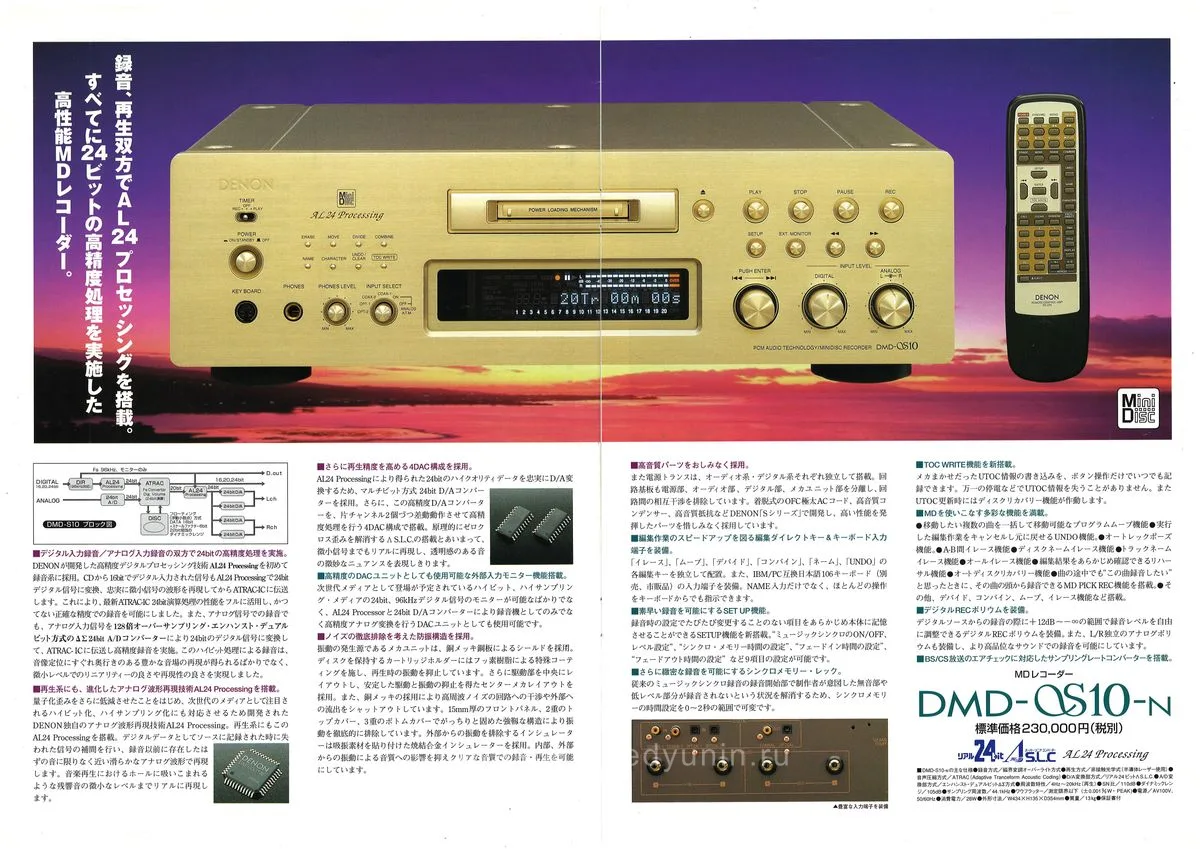

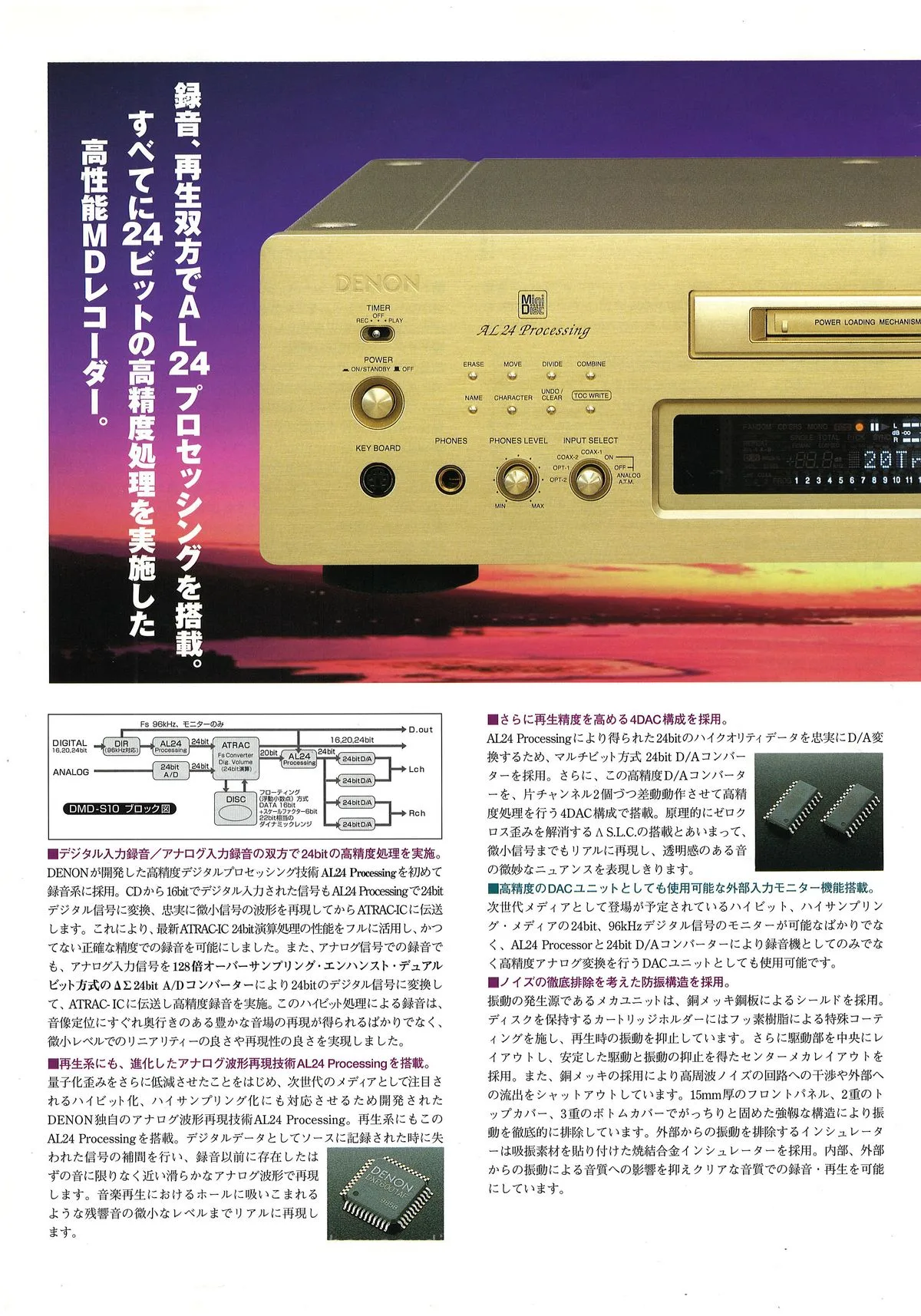

- AL24 Processing - Adaptive Line Pattern Harmonized Algorithm Processing - analog waveform reproduction technology: synthesizes added data from the lower 8 bits onto the upper 16 bits for 24-bit-grade output. DMD-S10-N only

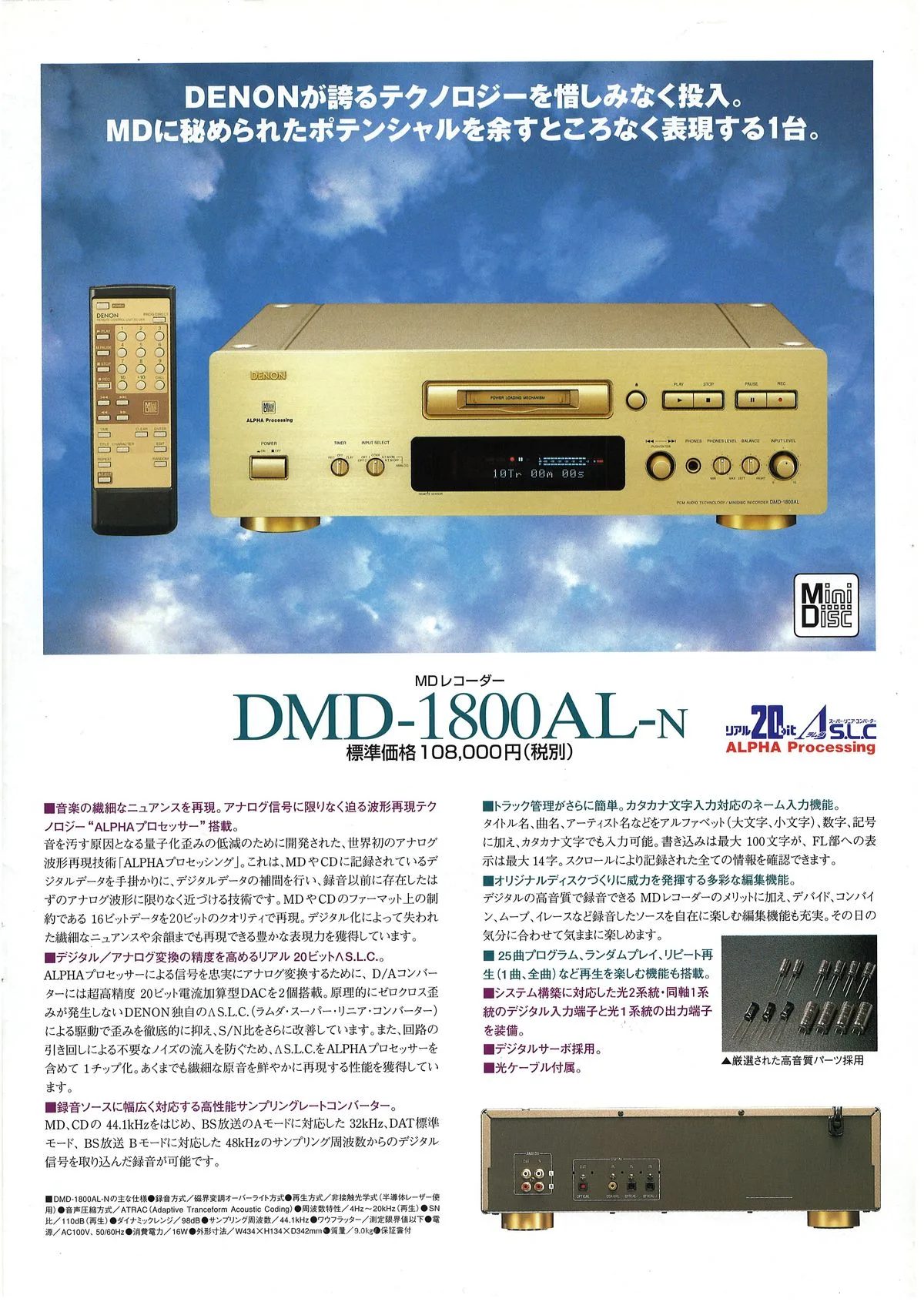

- ALPHA プロセッサー - ALPHA Processing - analog waveform reproduction, reconstructs 16-bit data to 20-bit-grade quality. In DMD-1800AL and DMD-1600AL
- ΛS.L.C. (ラムダ・スーパー・リニア・コンバーター) - Lambda Super Linear Converter - DENON proprietary DAC that eliminates zero-cross distortion by principle
- 24ビットDSP内蔵 ATRAC-IC - ATRAC-IC with built-in 24-bit DSP, block floating processing
- 4DAC構成 - 4DAC configuration (DMD-S10-N) for high-precision D/A conversion

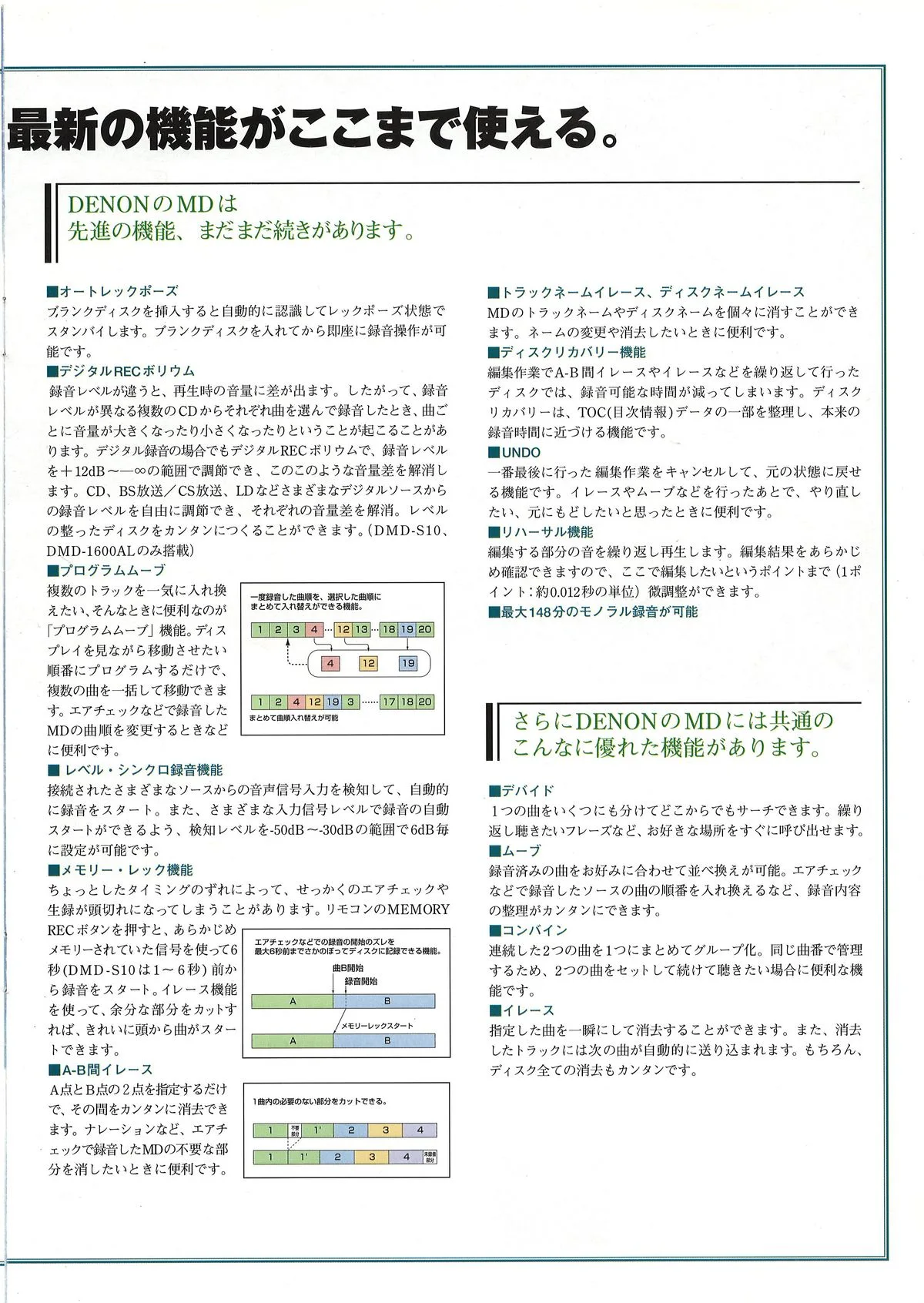

- TOC WRITE機能 - Button-press UTOC write, protection against UTOC loss on power failure plus disc recovery
- プログラムムーブ - Program Move - batch rearrangement of tracks in a chosen order
- シンクロ・メモリー録音機能 - Synchro Memory Rec - starts recording t seconds before the synchro-level detection point (0-2 s, 0.2 s step)
- レベル・シンクロ録音機能 - Level Synchro Rec - auto-start on input signal detection, detection level -54 to -30 dB, 6 dB step
- サンプリングレートコンバーター - Sampling Rate Converter - accepts 32 / 44.1 / 48 kHz (BS/CS/DAT) with conversion to 44.1 kHz
- 最大148分のモノラル録音 - Mono recording up to 148 minutes (DMD-S10-N)
| Model | Type | Price |
|---|---|---|

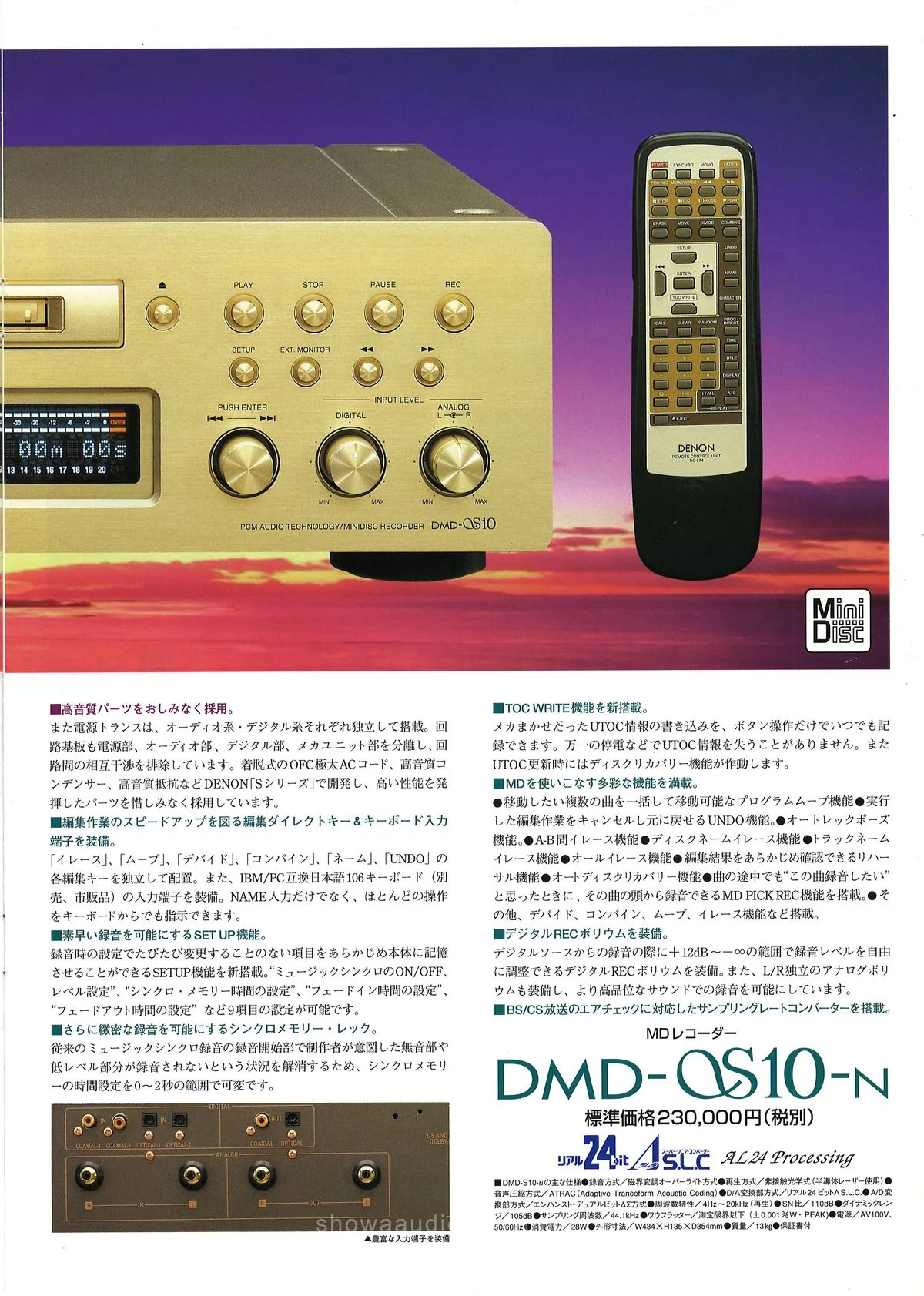

| DENON DMD-S10-N | MD recorder | ¥230,000 |
| DENON DMD-1800AL-N | MD recorder | ¥108,000 |

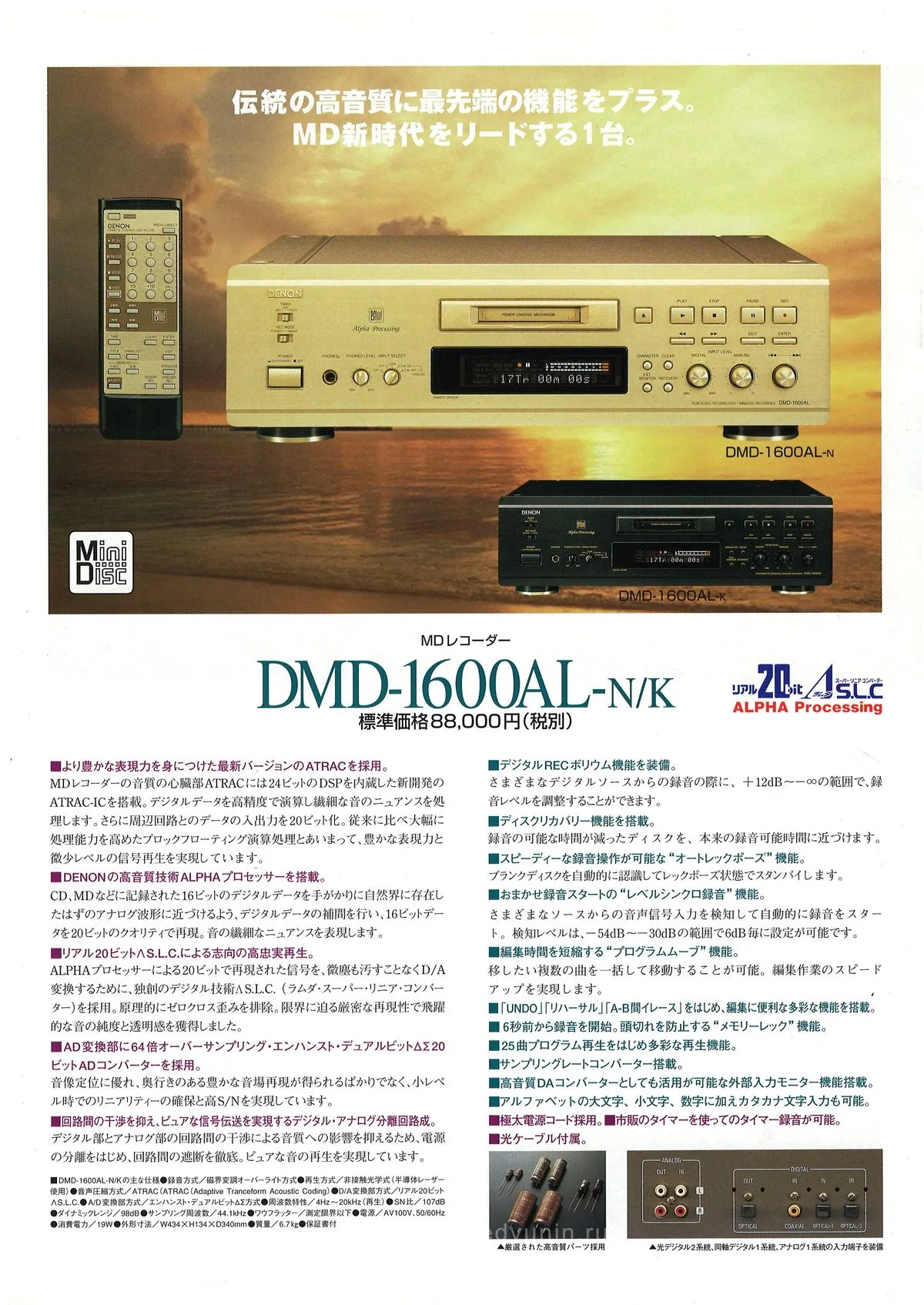

| DENON DMD-1600AL-N | MD recorder | ¥88,000 |
| DENON DMD-1600AL-K | MD recorder | ¥88,000 |

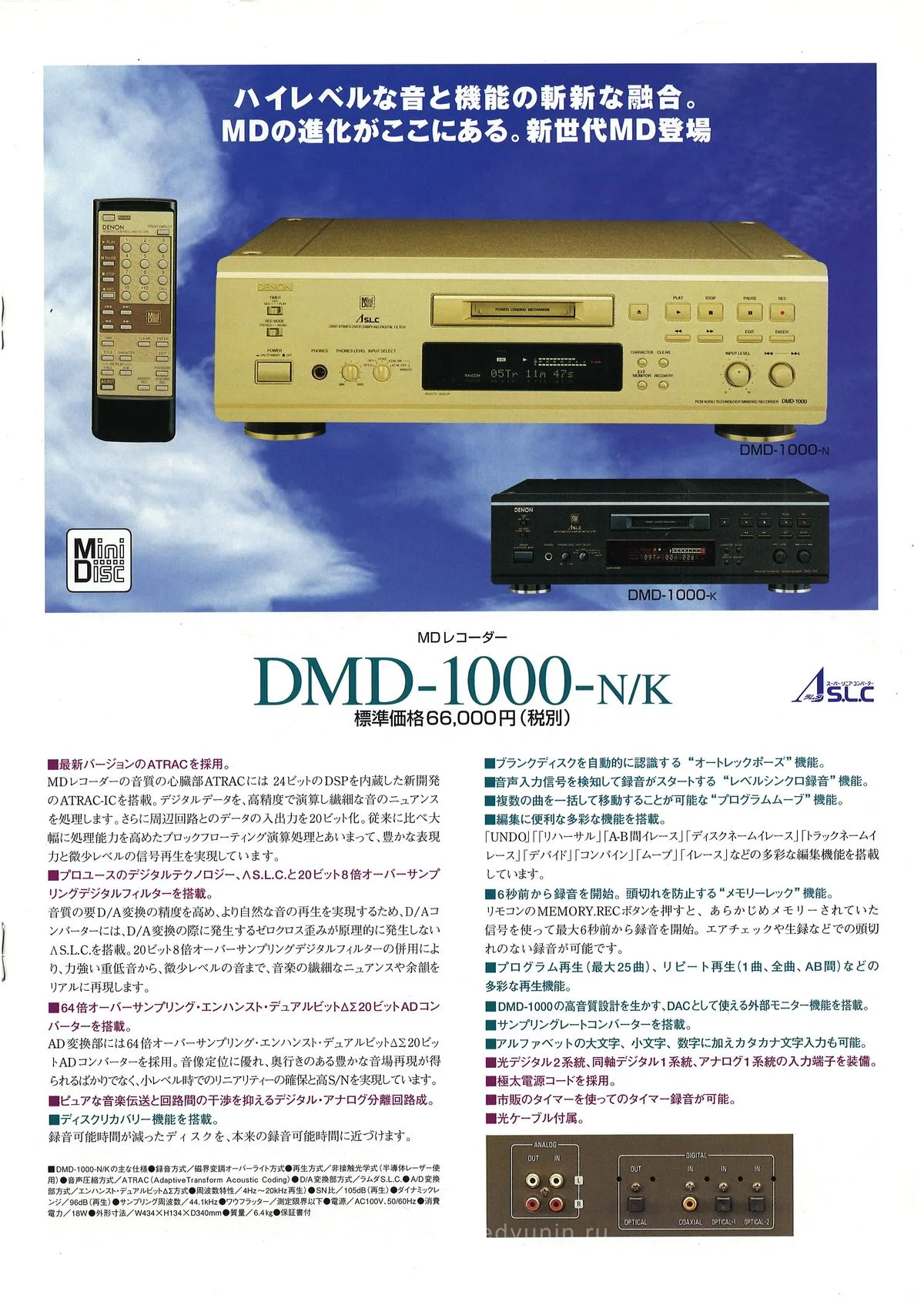

| DENON DMD-1000-N | MD recorder | ¥66,000 |
| DENON DMD-1000-K | MD recorder | ¥66,000 |

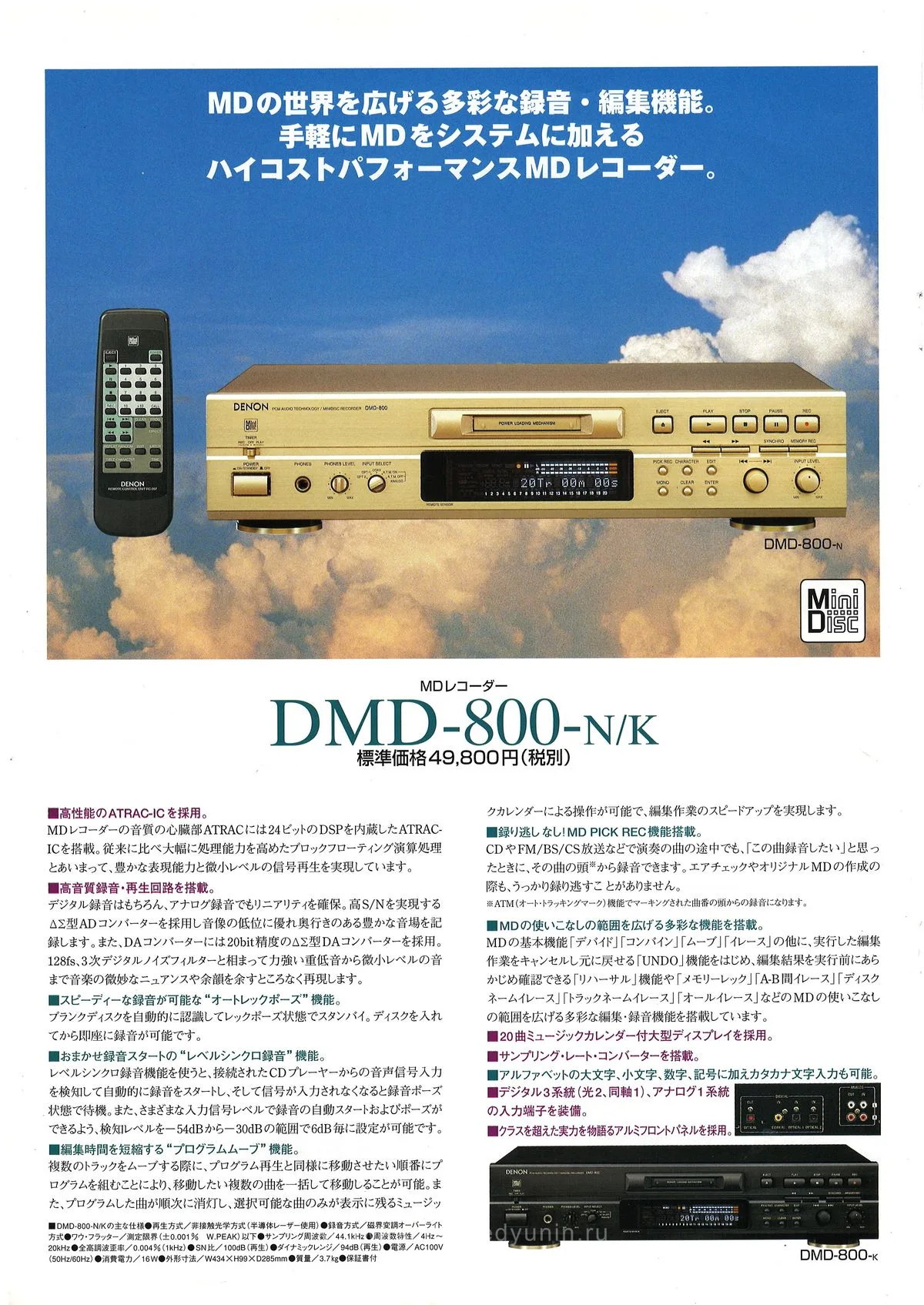

| DENON DMD-800-N | MD recorder | ¥49,800 |
| DENON DMD-800-K | MD recorder | ¥49,800 |

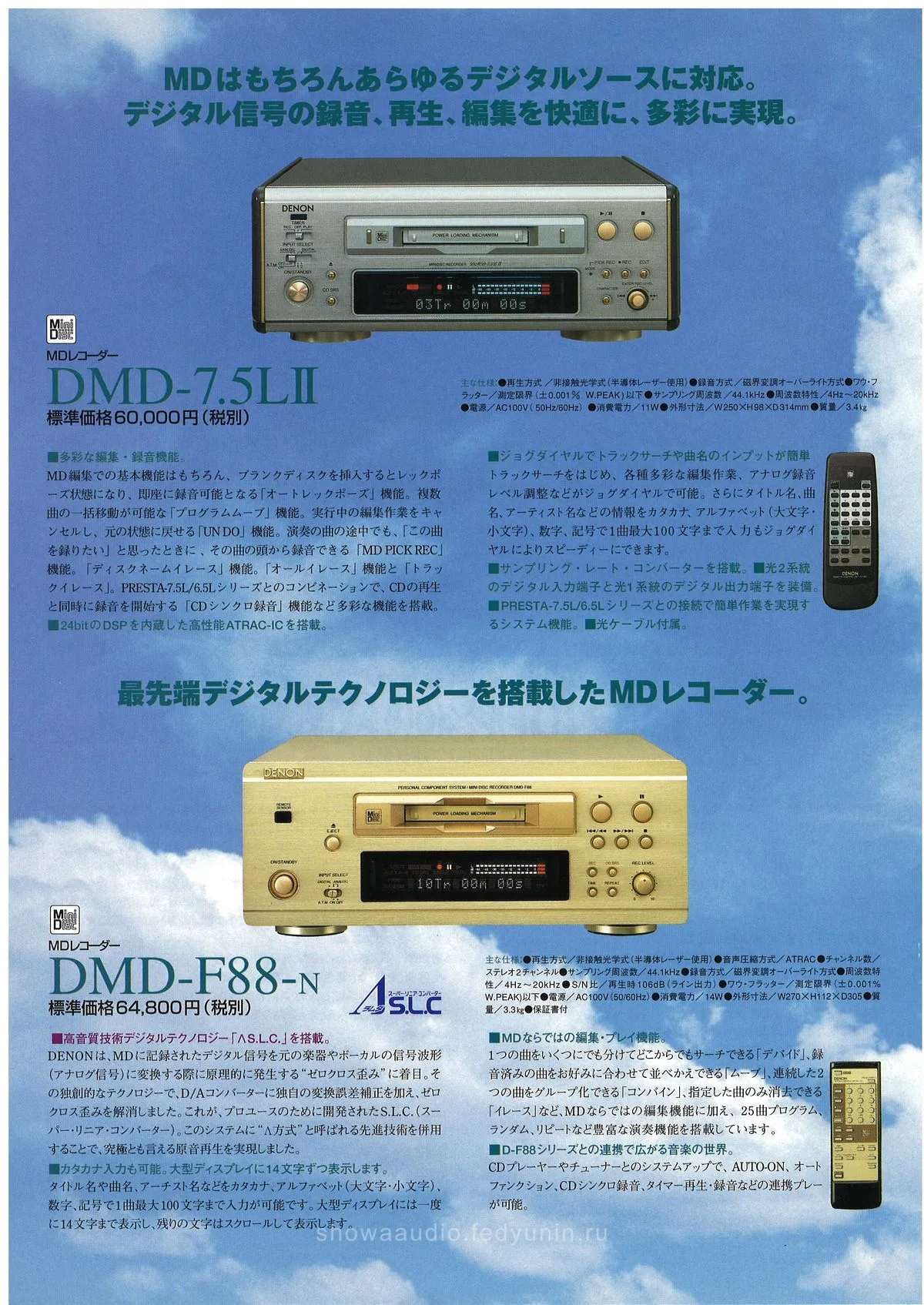

| DENON DMD-7.5LII | MD recorder | ¥60,000 |
| DENON DMD-F88-N | MD recorder | ¥64,800 |

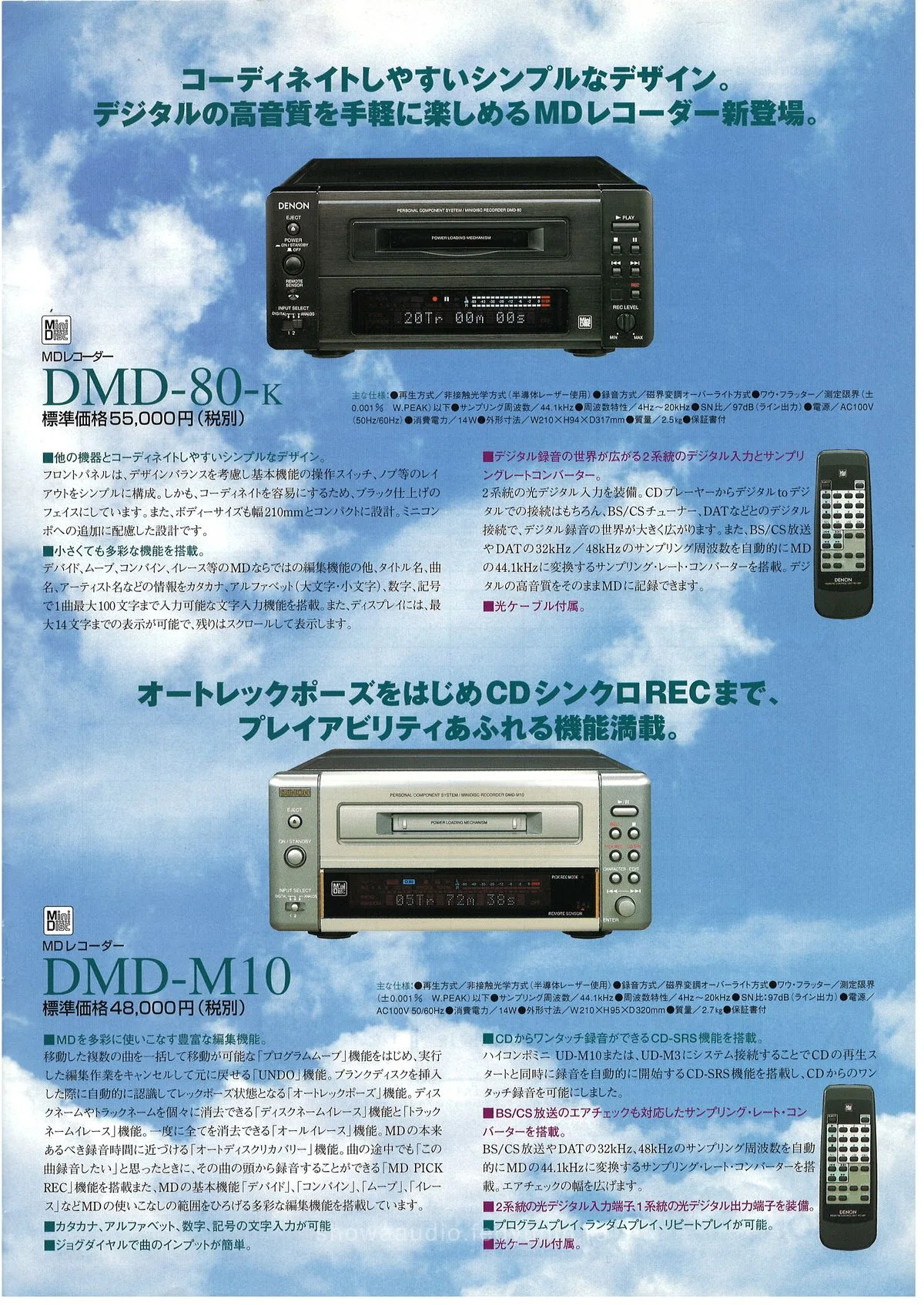

| DENON DMD-80-K | MD recorder | ¥55,000 |
| DENON DMD-M10 | MD recorder | ¥48,000 |
