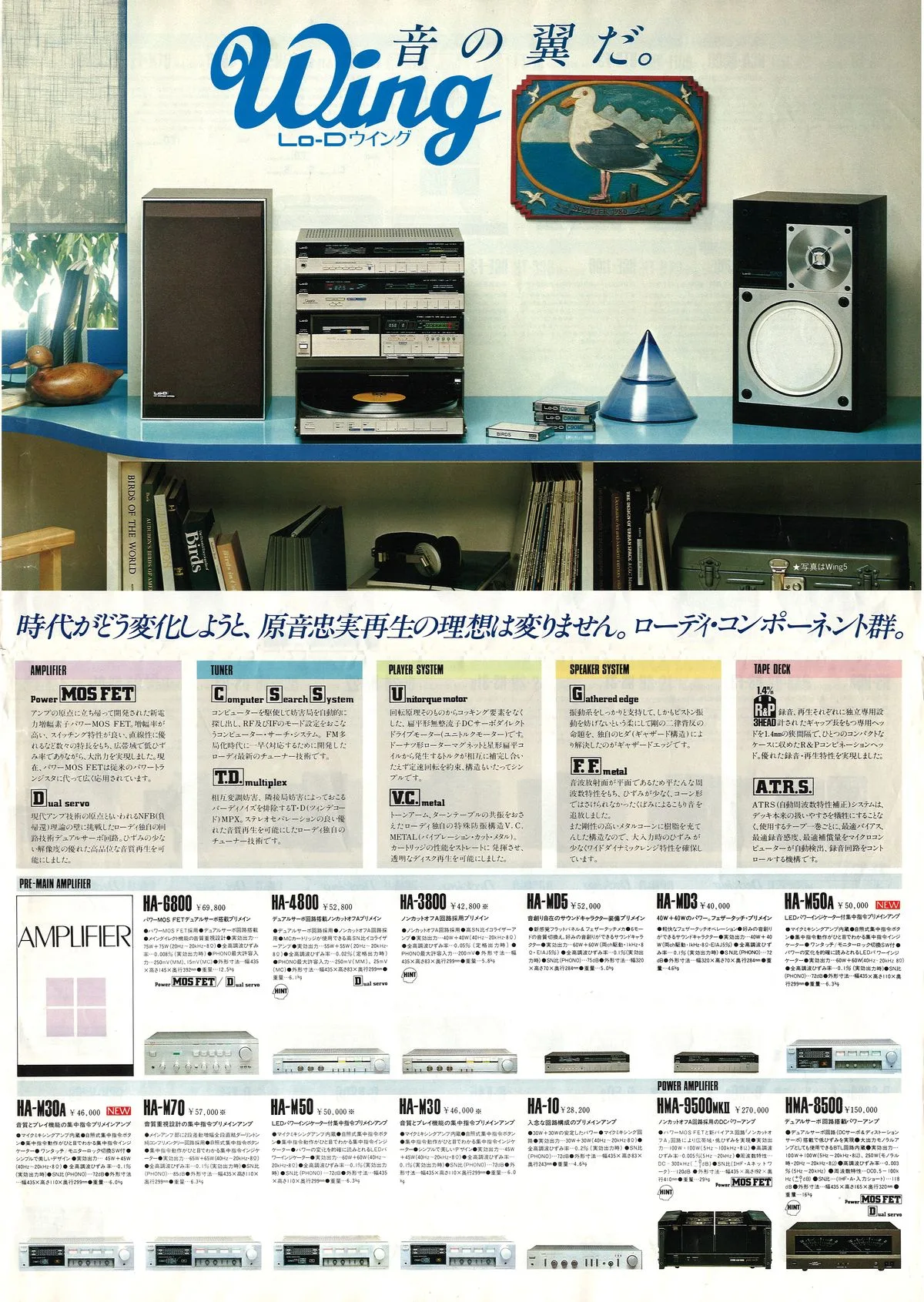

Full Lo-D component catalog for September 1982, A4 stapled format. The cover shows the entire Wing lineup under the slogan “Oto no tsubasa da” - “Wings of Sound.” Around 90 models ranging from Power MOS FET amplifiers (flagship HMA-9500MKII at 270,000 yen) to the Decking series cassette decks featuring the proprietary Close Gap R.P. combination head with a 1.4 micron gap. The speaker lineup includes the HS-10000 at 1.8 million yen - floor-standing monitors with F.F. metal flat diaphragms. Also listed are the PCM-V300 at 498,000 yen for digital recording via VHS, and 8-track decks D-KA5 and D-K800 - a format nearing the end of its life.

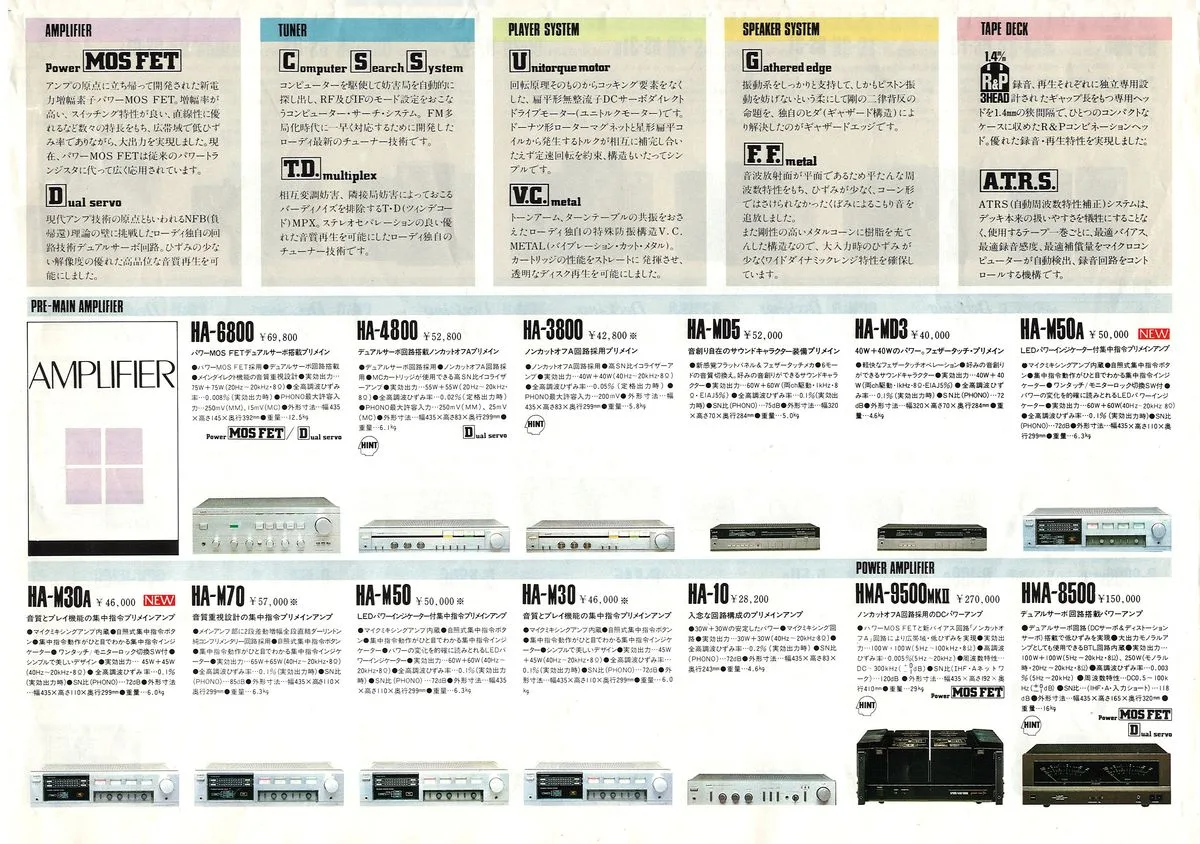

- Power MOS FET - Power MOS FET - high-linearity power MOSFETs with wide bandwidth for amplifier output stages (HA-6800, HMA-9500MKII)
- Dual servo - Dual servo - dual feedback stabilization system for amplifier operating points
- Computer Search System - C.S.S. - computerized station search and automatic preset memory (FT-5500)
- T.D. multiplex - T.D. multiplex - multipath interference cancellation for FM without stereo separation loss
- Unitorque motor - Unitorque motor - single-coil direct-drive motor eliminating cogging torque
- V.C. metal - V.C. metal - anti-vibration tonearm construction with metal inserts
- F.F. metal - F.F. metal (Flat Face) - flat metal diaphragm for uniform frequency response
- Gathered edge - Gathered edge - corrugated surround for accurate low-frequency diaphragm excursion
- A.T.R.S. - A.T.R.S. - microcomputer-based automatic tape response calibration system
- Close Gap R.P. combination head - Close Gap R.P. - combination record/playback head with 1.4 micron gap for 3-head configuration
| Model | Type | Price |
|---|---|---|
| HA-6800 | Pre-main amplifier | ¥69,800 |
| HA-4800 | Pre-main amplifier | ¥52,800 |
| HA-3800 | Pre-main amplifier | ¥42,800 |
| HA-MD5 | Pre-main amplifier | ¥52,000 |
| HA-MD3 | Pre-main amplifier | ¥40,000 |
| HA-M50A | Pre-main amplifier | ¥50,000 |
| HA-M30A | Pre-main amplifier | ¥46,000 |
| HA-M70 | Pre-main amplifier | ¥57,000 |
| HA-M50 | Pre-main amplifier | ¥50,000 |
| HA-M30 | Pre-main amplifier | ¥46,000 |
| HA-10 | Pre-main amplifier | ¥28,200 |
| HMA-9500MKII | Power amplifier | ¥270,000 |
| HMA-8500 | Power amplifier | ¥150,000 |

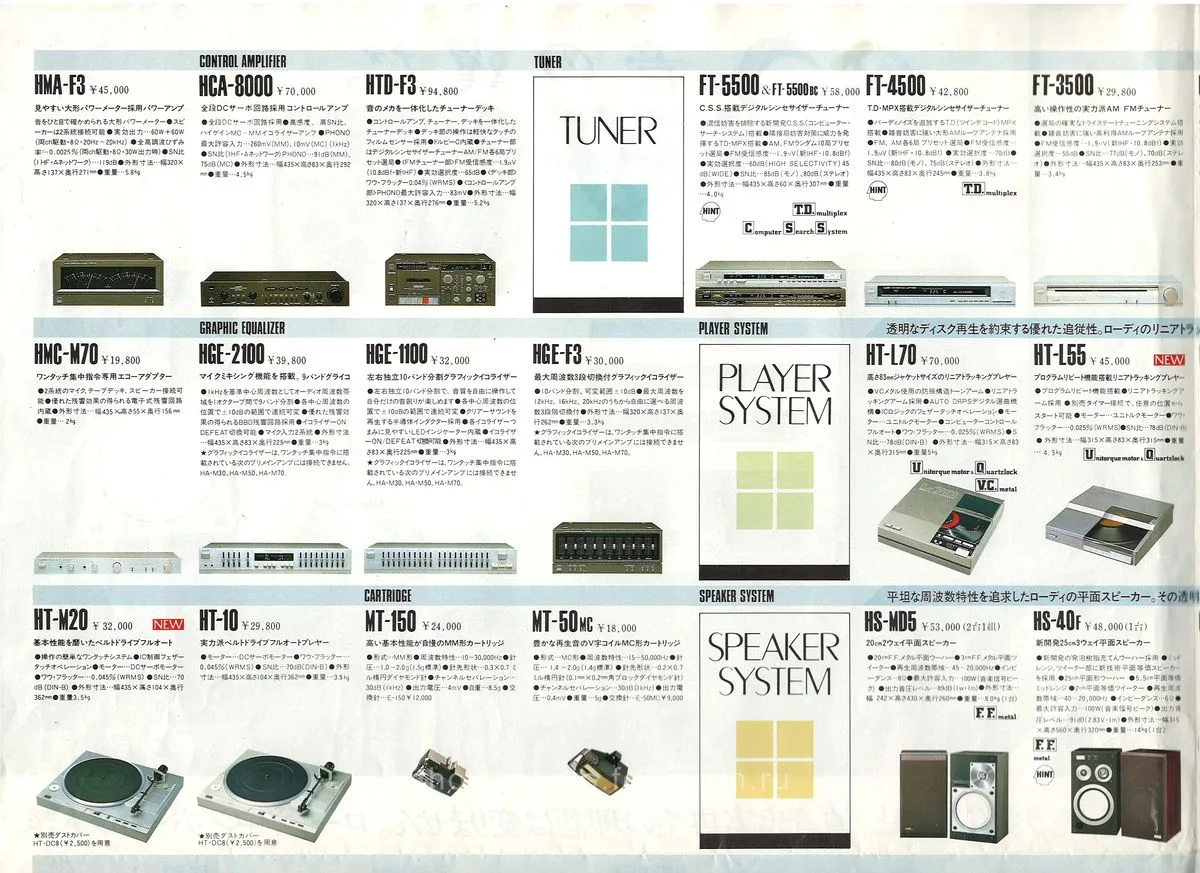

| HMA-F3 | Power amplifier | ¥45,000 |
| HCA-8000 | Control amplifier | ¥70,000 |
| HTD-F3 | Tuner-deck | ¥94,800 |
| FT-5500 | Tuner | ¥58,000 |
| FT-4500 | Tuner | ¥42,800 |
| FT-3500 | Tuner | ¥29,800 |
| FT-MD5 | Tuner | ¥40,000 |
| FT-M70 | Tuner | ¥46,000 |
| FT-M50 | Tuner | ¥35,000 |
| FT-M30 | Tuner | ¥29,000 |
| FT-10 | Tuner | ¥27,000 |
| HGE-2100 | Graphic equalizer | ¥39,800 |
| HGE-1100 | Graphic equalizer | ¥32,000 |
| HGE-F3 | Graphic equalizer | ¥30,000 |
| HT-L70 | Turntable | ¥70,000 |
| HT-L55 | Turntable | ¥45,000 |
| HT-L5 | Turntable | ¥57,000 |
| HT-500 | Turntable | ¥49,800 |
| HT-467 | Turntable | ¥45,000 |
| HT-6MDBZ | Turntable | ¥39,800 |
| HT-338 | Turntable | ¥33,000 |
| HT-M70 | Turntable | ¥45,000 |
| HT-M50 | Turntable | ¥43,000 |
| HT-M20 | Turntable | ¥32,000 |
| HT-10 | Turntable | ¥29,800 |
| HS-10000 | Speaker system | ¥1,800,000/台 |
| HS-90F | Speaker system | ¥160,000/台 |
| HS-70F | Speaker system | ¥108,000/台 |
| HS-50F | Speaker system | ¥60,000/台 |
| HS-MD5 | Speaker system | ¥53,000 |
| HS-40F | Speaker system | ¥48,000/台 |
| HS-X38 | Speaker system | ¥50,000/台 |
| HS-M70LR | Speaker system | ¥48,500/台 |
| HS-M50LR | Speaker system | ¥30,500/台 |
| HS-7 | Speaker system | ¥35,000/台 |
| HS-3 | Speaker system | ¥50,000 |
| HS-M30 | Speaker system | ¥40,000 |
| HS-F3 | Speaker system | ¥40,000 |
| HS-10 | Speaker system | ¥24,000 |
| HS-31 | Speaker system | ¥36,000 |
| HS-31II | Speaker system | ¥36,000 |
| HS-MD3 | Speaker system | ¥24,000 |
| HS-22 | Speaker system | ¥24,000 |
| HS-03 | Speaker system | ¥12,000 |
| HS-01 | Speaker system | ¥10,000 |

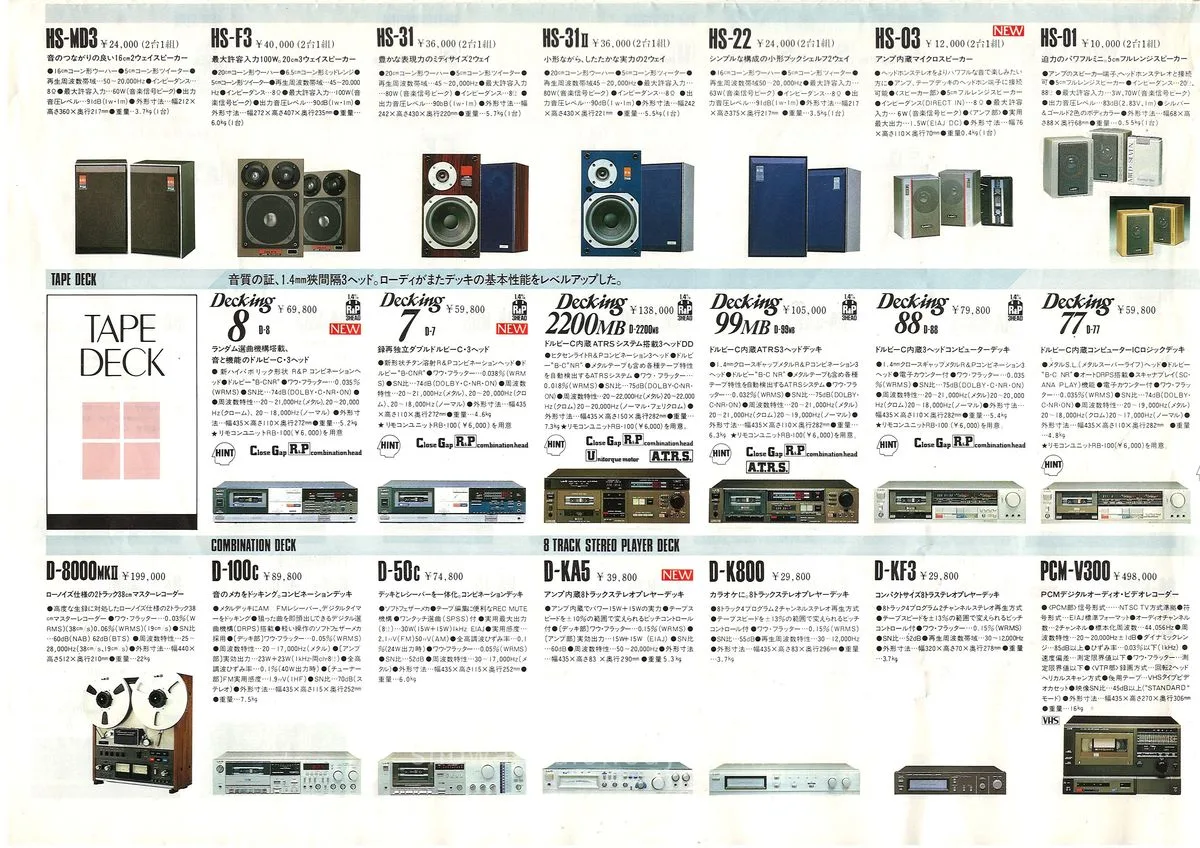

| D-2200MB | Cassette deck | ¥138,000 |
| D-99MB | Cassette deck | ¥105,000 |
| D-88 | Cassette deck | ¥79,800 |
| D-8 | Cassette deck | ¥69,800 |
| D-7 | Cassette deck | ¥59,800 |
| D-77 | Cassette deck | ¥59,800 |
| D-MD5 | Cassette deck | ¥55,000 |
| D-MC50 | Cassette deck | ¥69,800 |
| D-M30 | Cassette deck | ¥47,800 |
| D-33 | Cassette deck | ¥42,800 |
| D-22 | Cassette deck | ¥32,800 |
| D-3300M | Cassette deck | ¥148,000 |
| D-W700 | Double cassette deck | ¥69,800 |
| D-8000MKII | Reel-to-reel tape recorder | ¥199,000 |
| D-100c | Combination deck | ¥89,800 |
| D-50c | Combination deck | ¥74,800 |
| PCM-V300 | PCM digital audio processor | ¥498,000 |
昭和57年9月（1982 September）ス-72(H)
