PIONEER Component Technical Hand Book 1983
https://storage.yandexcloud.net/showaaudio-media/images/items/pioneer-technical-hand-book-1983/main-01.webp198320pioneer198320 📃

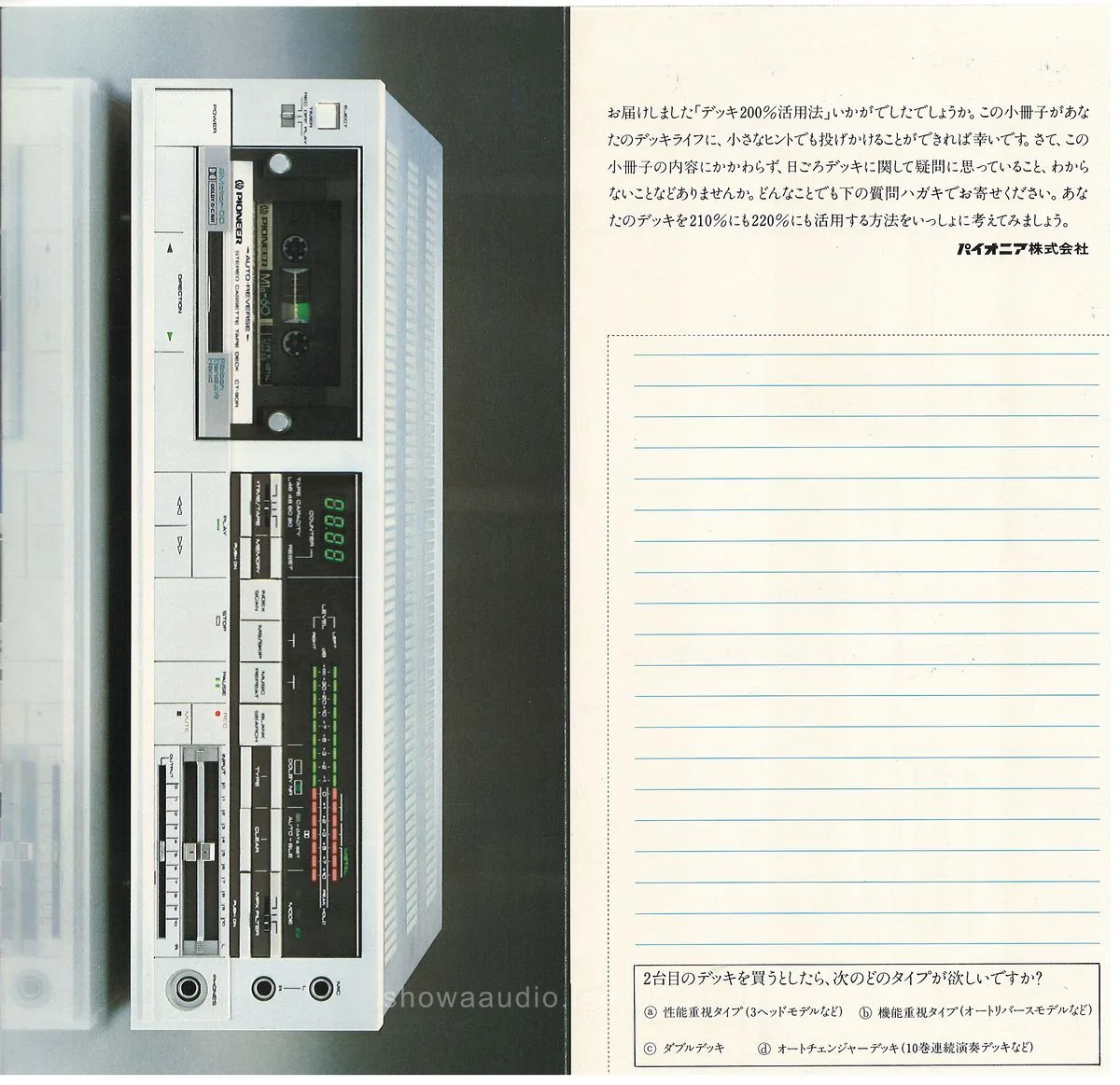

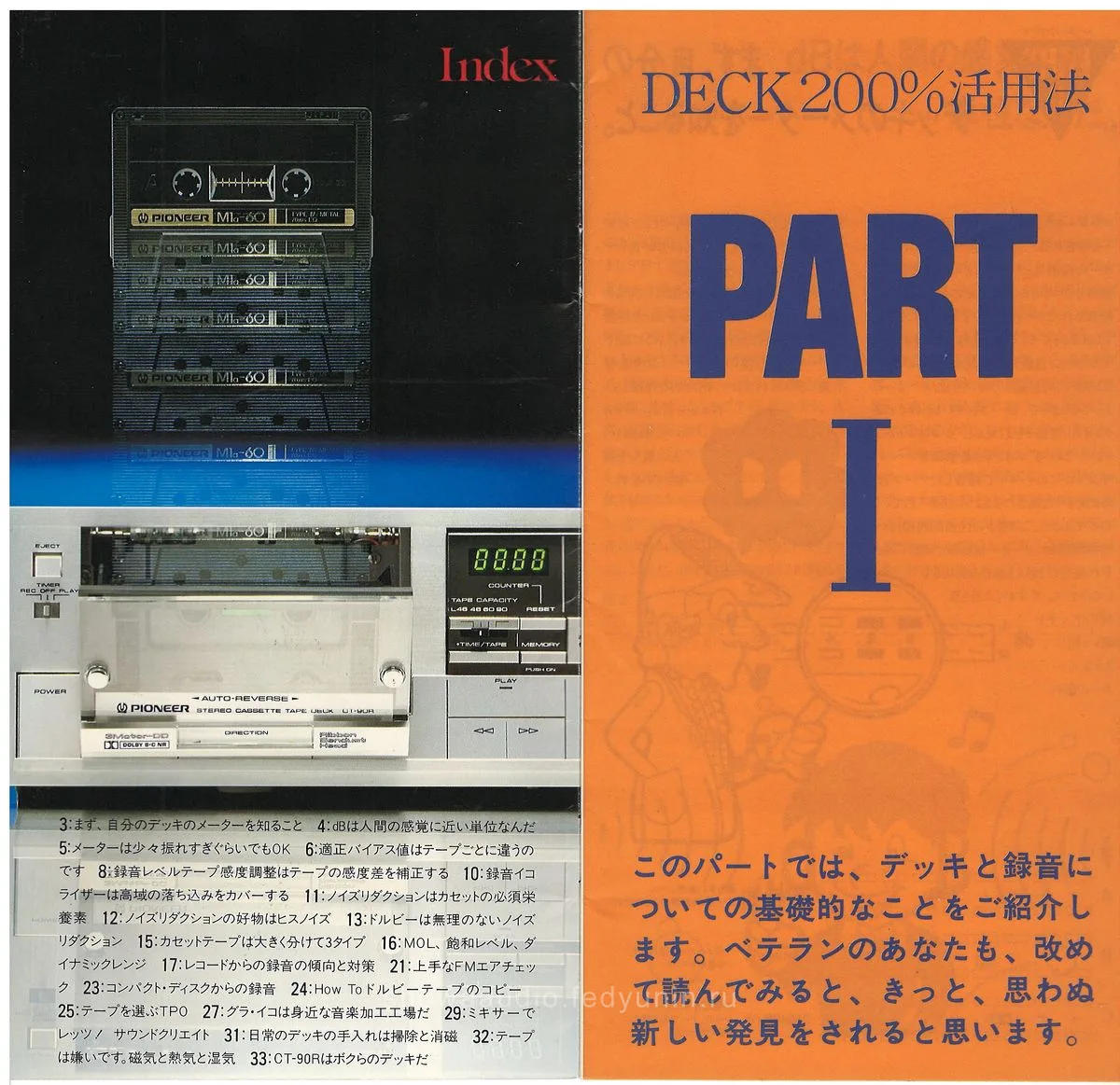

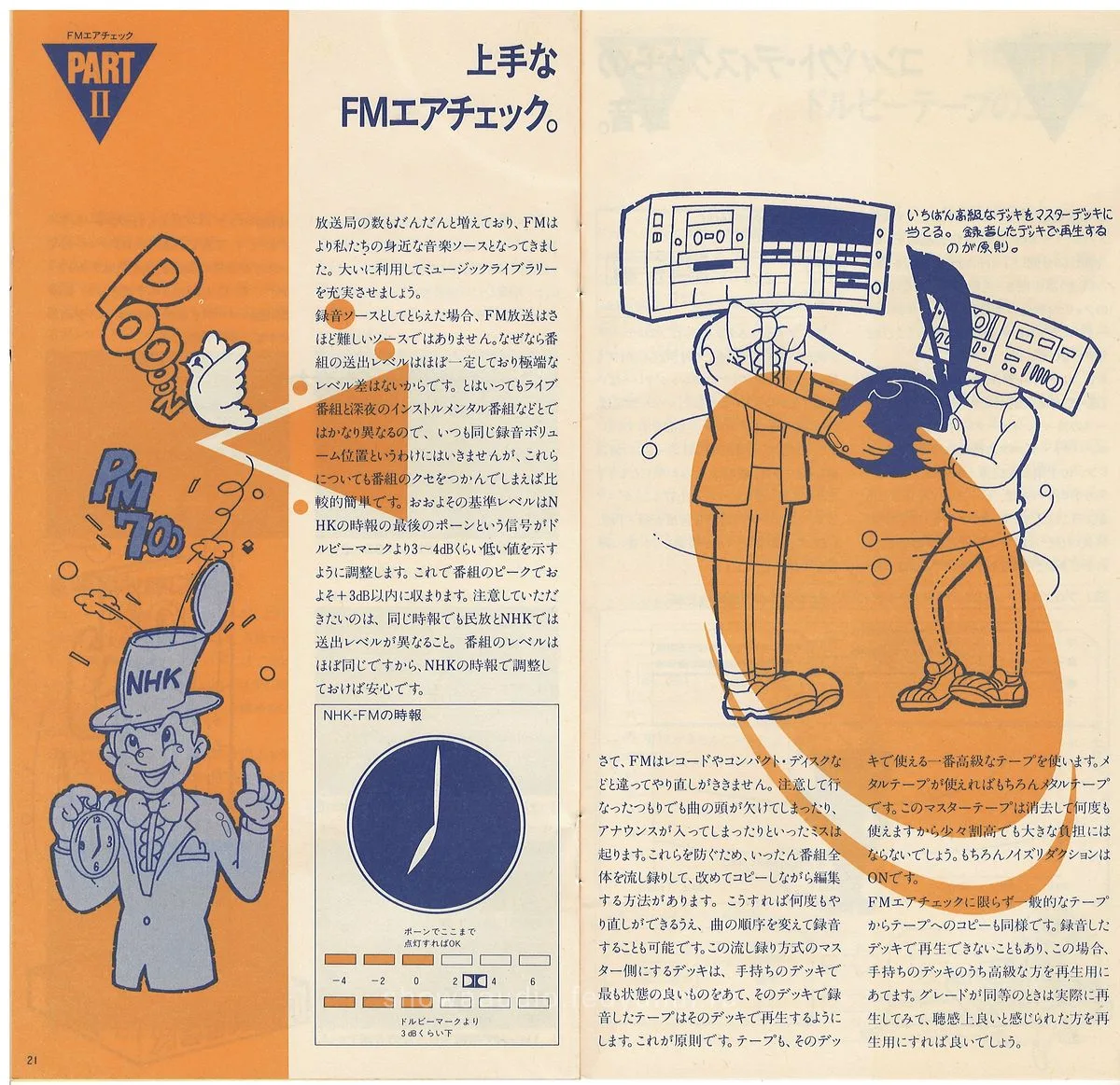

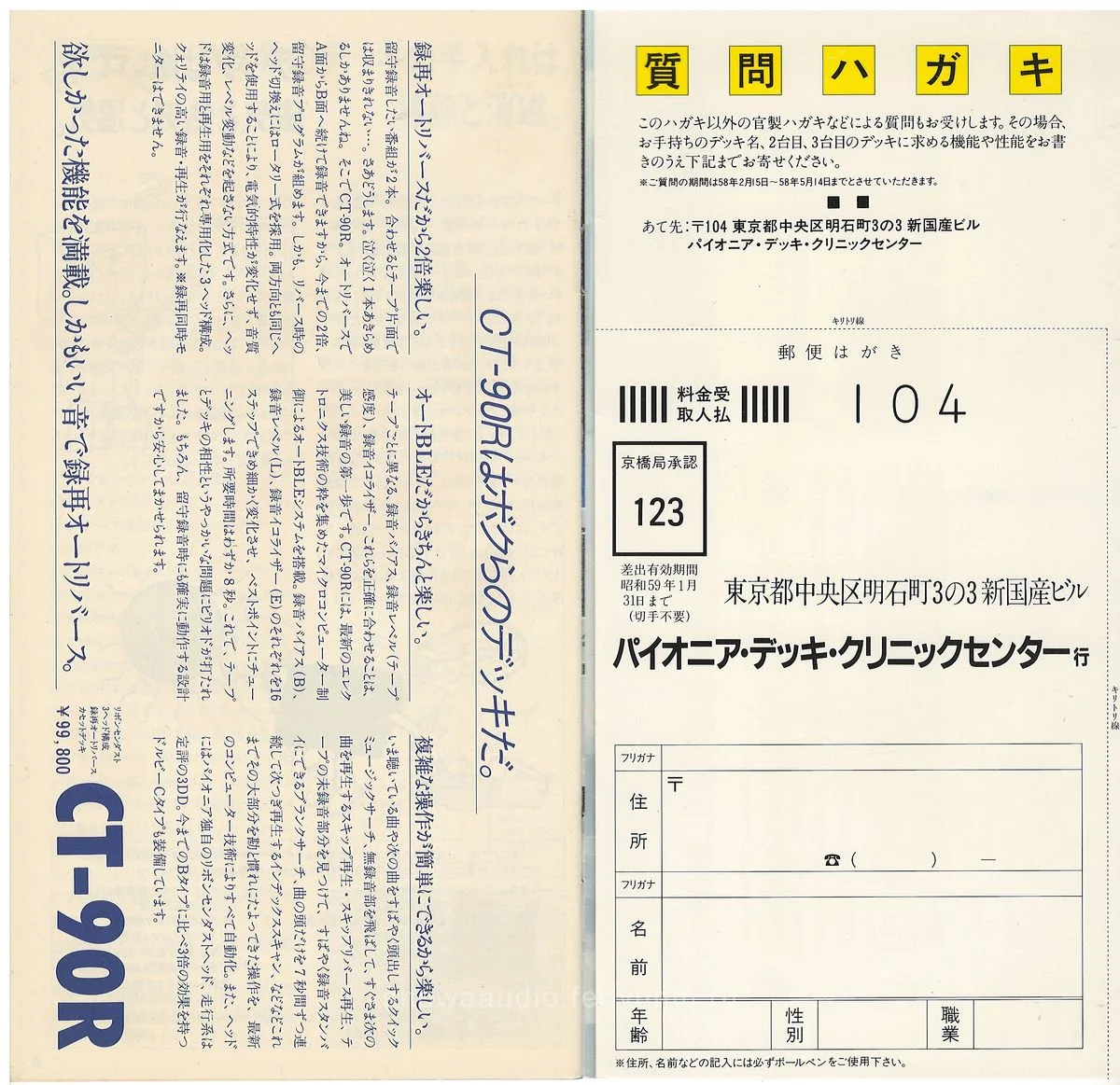

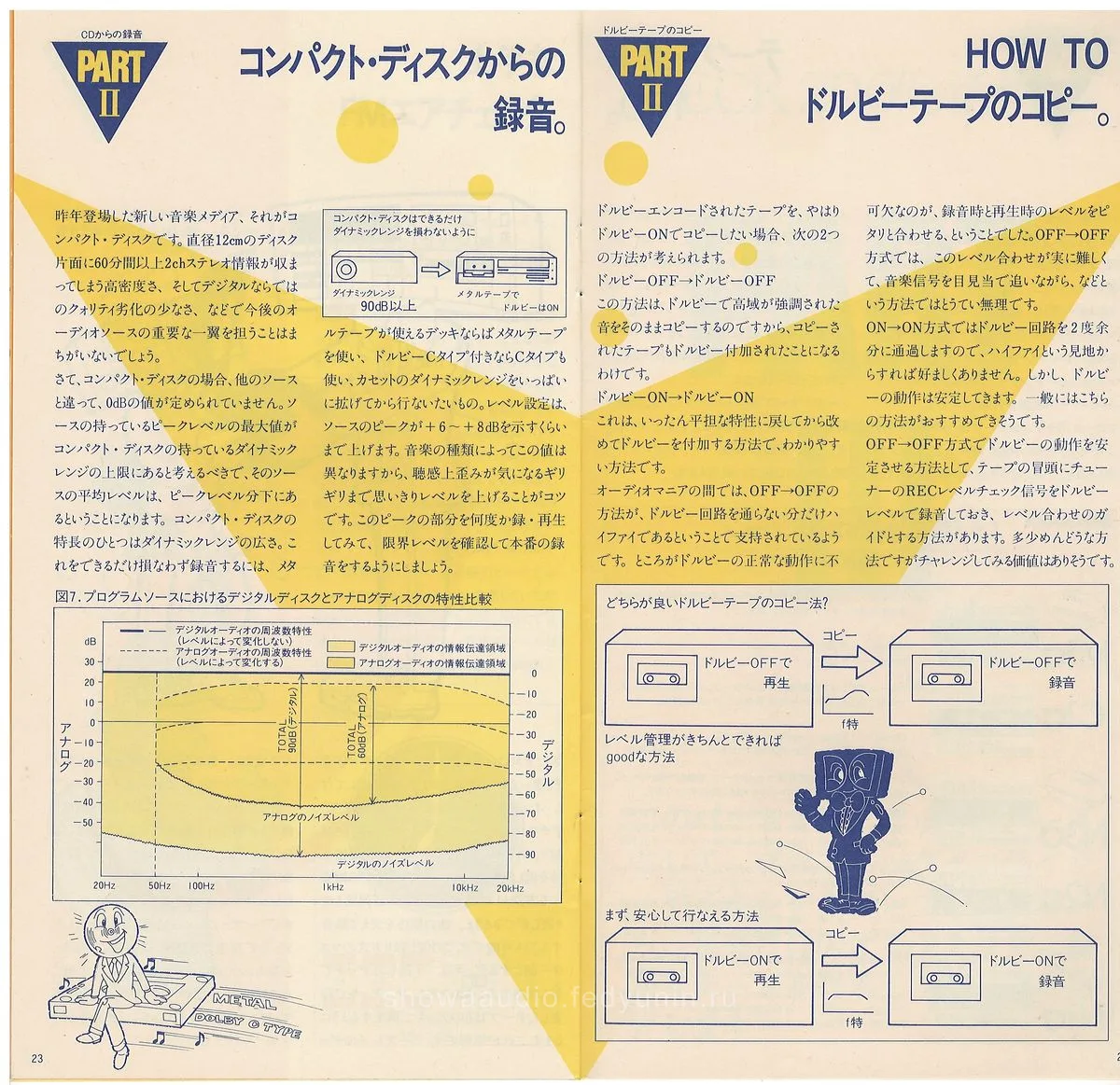

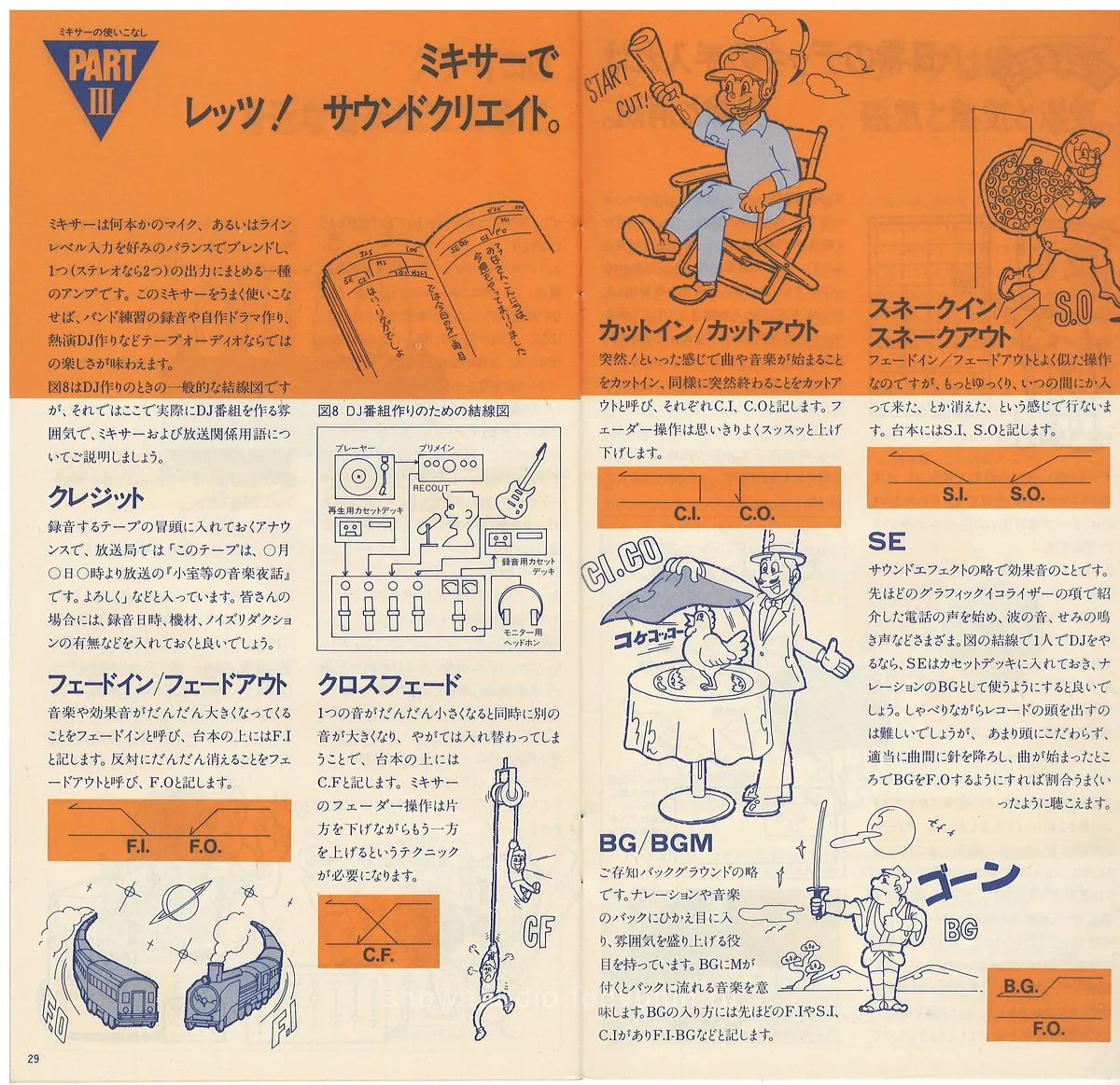

Not a product catalog - Pioneer published this as a consumer education booklet in 1983, titled “Deck 200%活用法” (How to get 200% out of your deck). Three parts cover the basics (bias, Dolby B/C noise reduction, recording EQ at 70 us/120 us), recording from different sources (vinyl, CD, FM, tape types), and advanced techniques including DJ methods like Cross-Fade, Fade-In/Out and Snake-In/Out. The PIONEER CT-90R auto-reverse deck features on the cover and in a dedicated spread. Distributed free of charge, with a tear-out question card addressed to the Pioneer Deck Clinic Center in Tokyo.

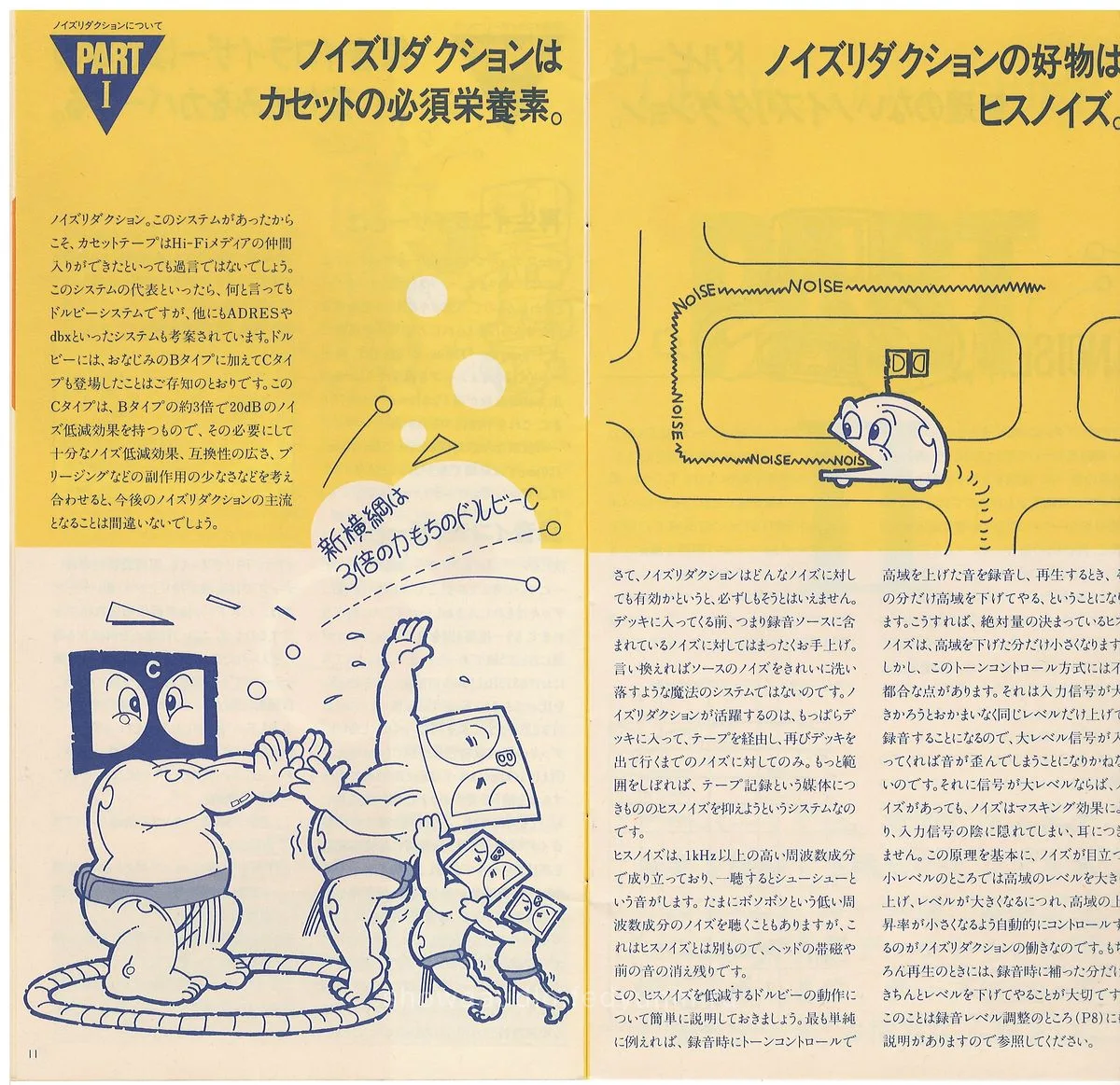

- Dolby B NR - Dolby B noise reduction - 20 dB noise suppression at high frequencies
- Dolby C NR - Dolby C noise reduction - deeper suppression than B-type

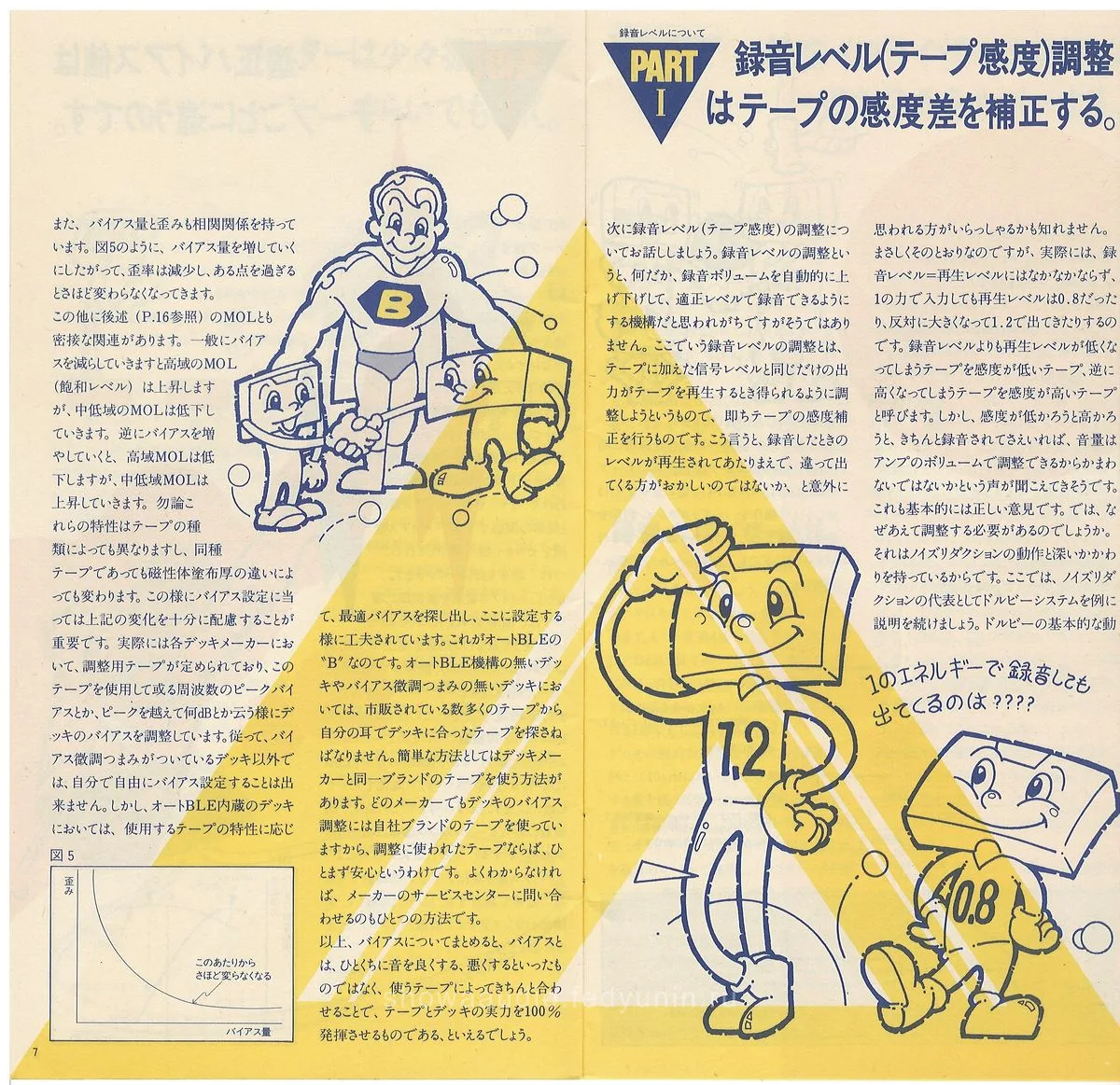

- Auto BLE - automatic bias and level adjustment calibrated to each specific tape type

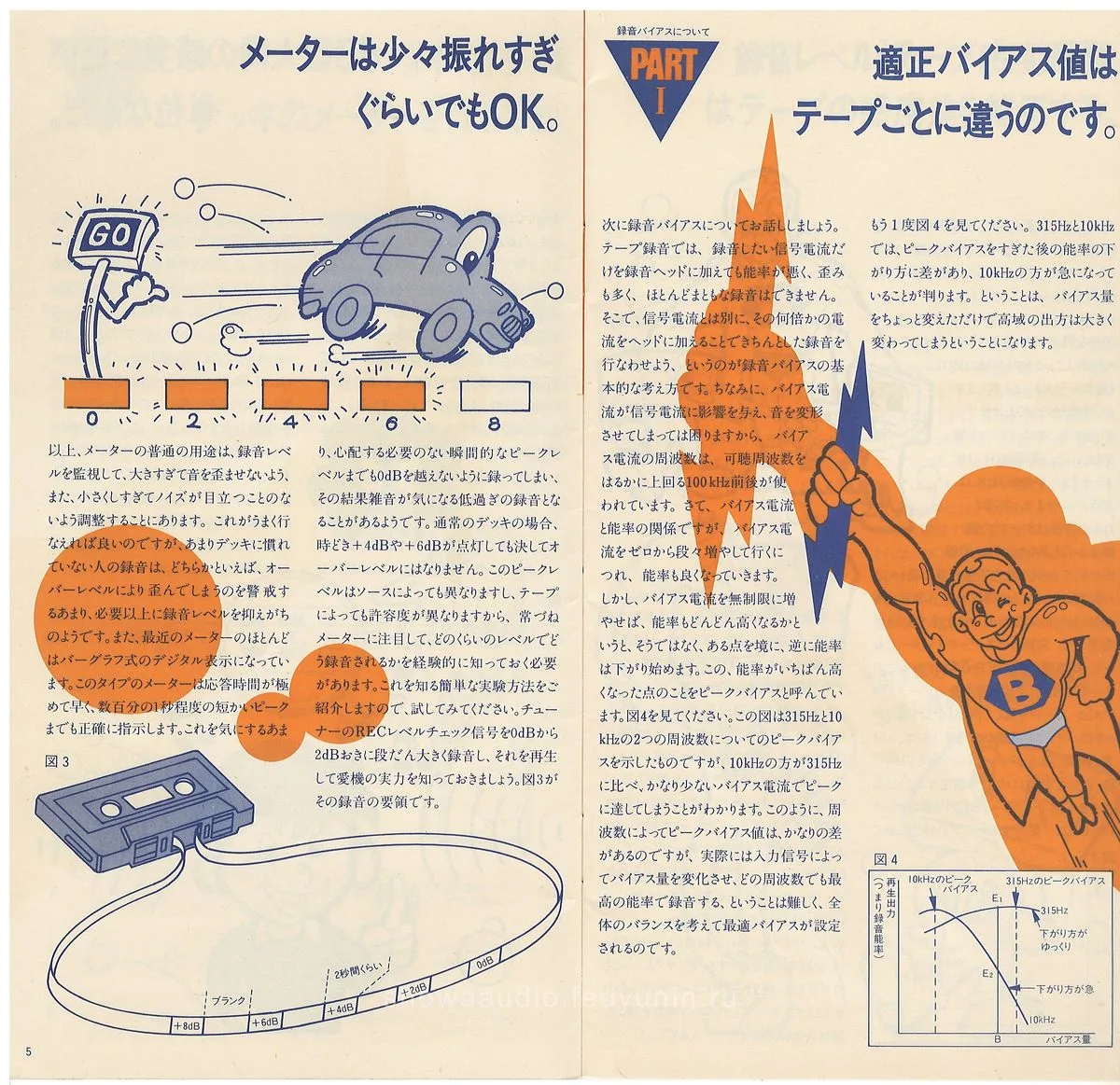

- バイアス調整 - manual bias adjustment per IEC standard at 315 Hz and 10 kHz

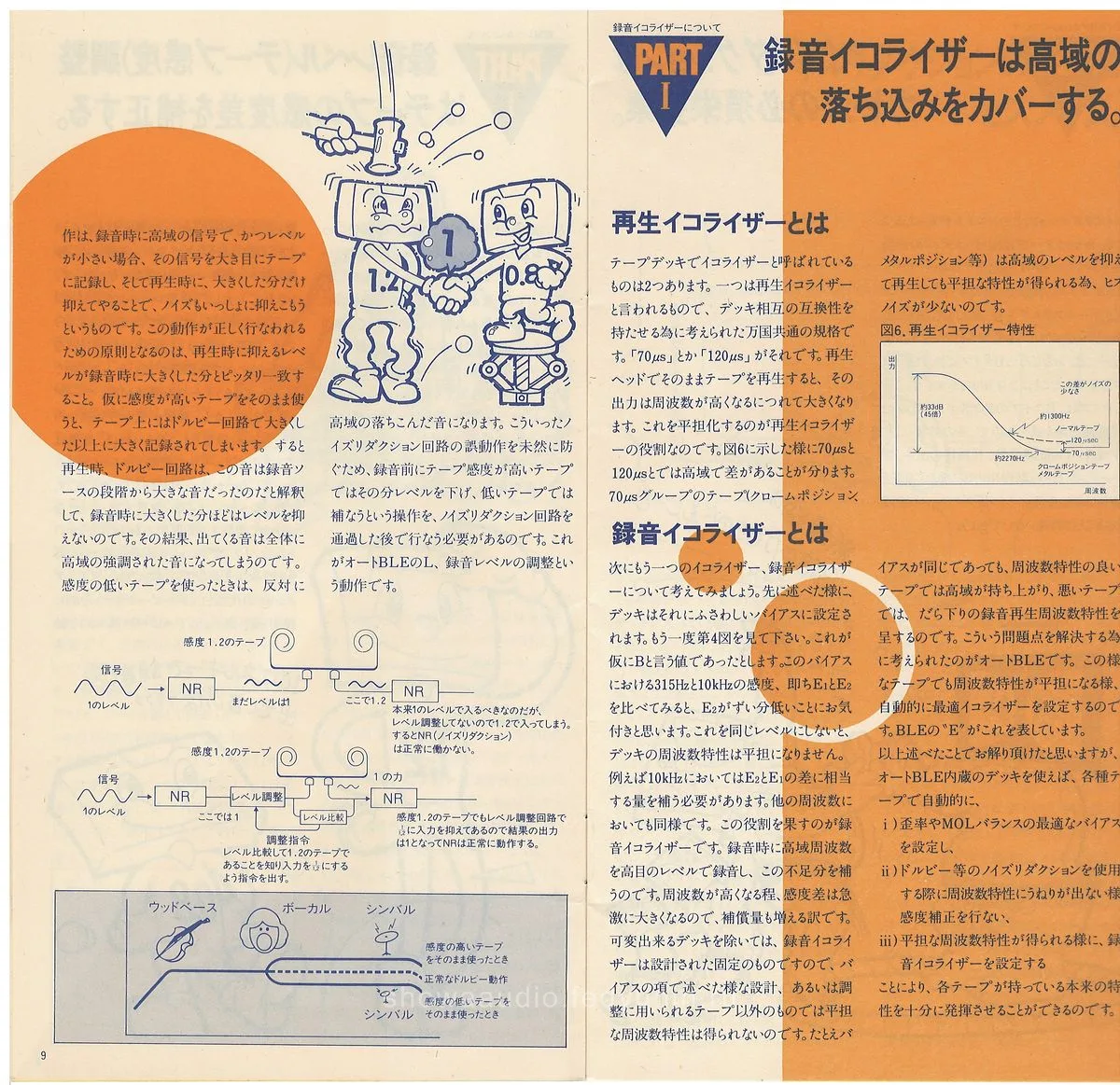

- 録音イコライザー - recording EQ: 70 us for normal position, 120 us for chrome/metal
- 再生イコライザー - playback EQ per IEC standard, separate settings for metal position

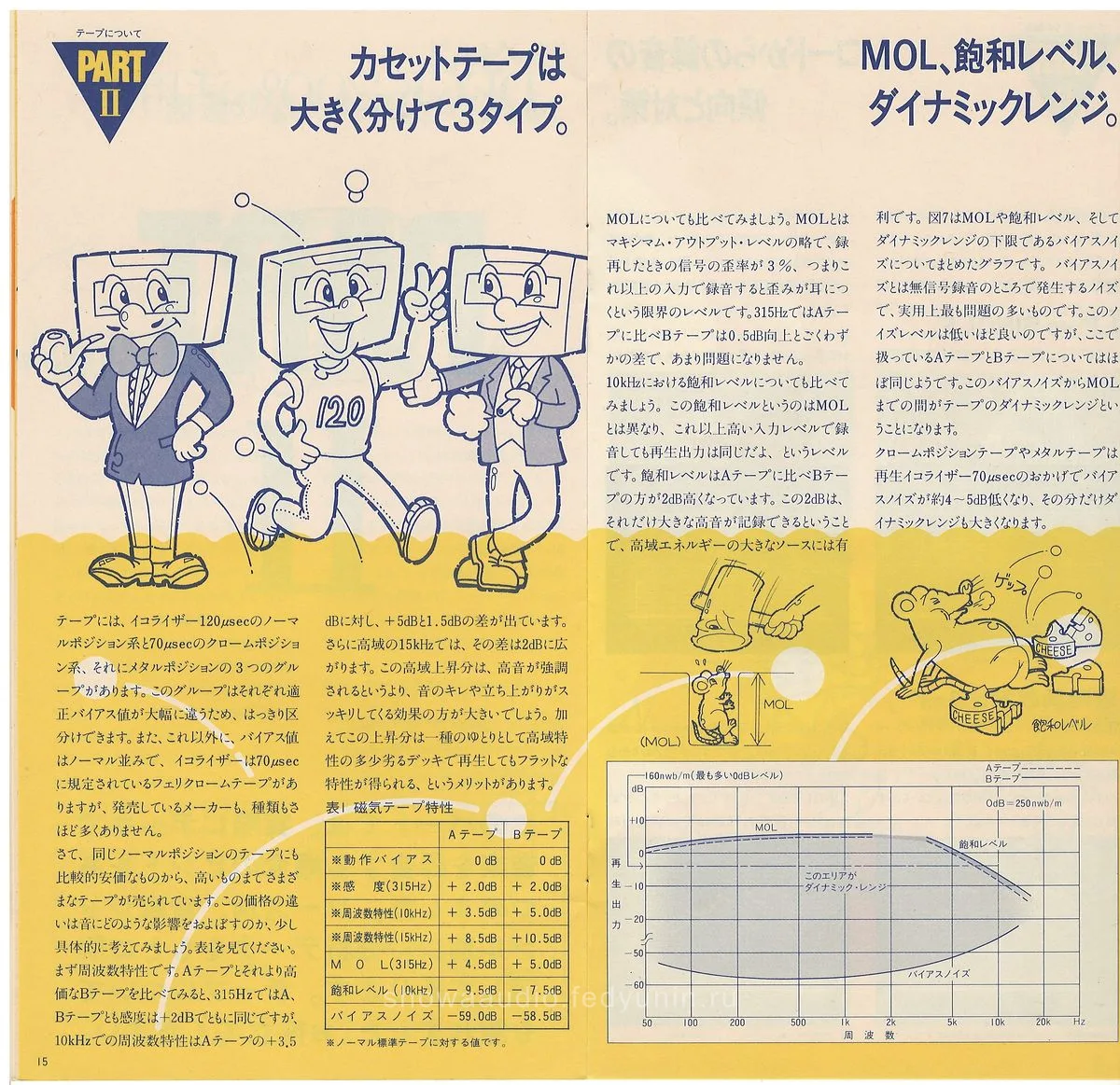

- ダイナミックレンジ - dynamic range: difference between tape MOL and noise floor

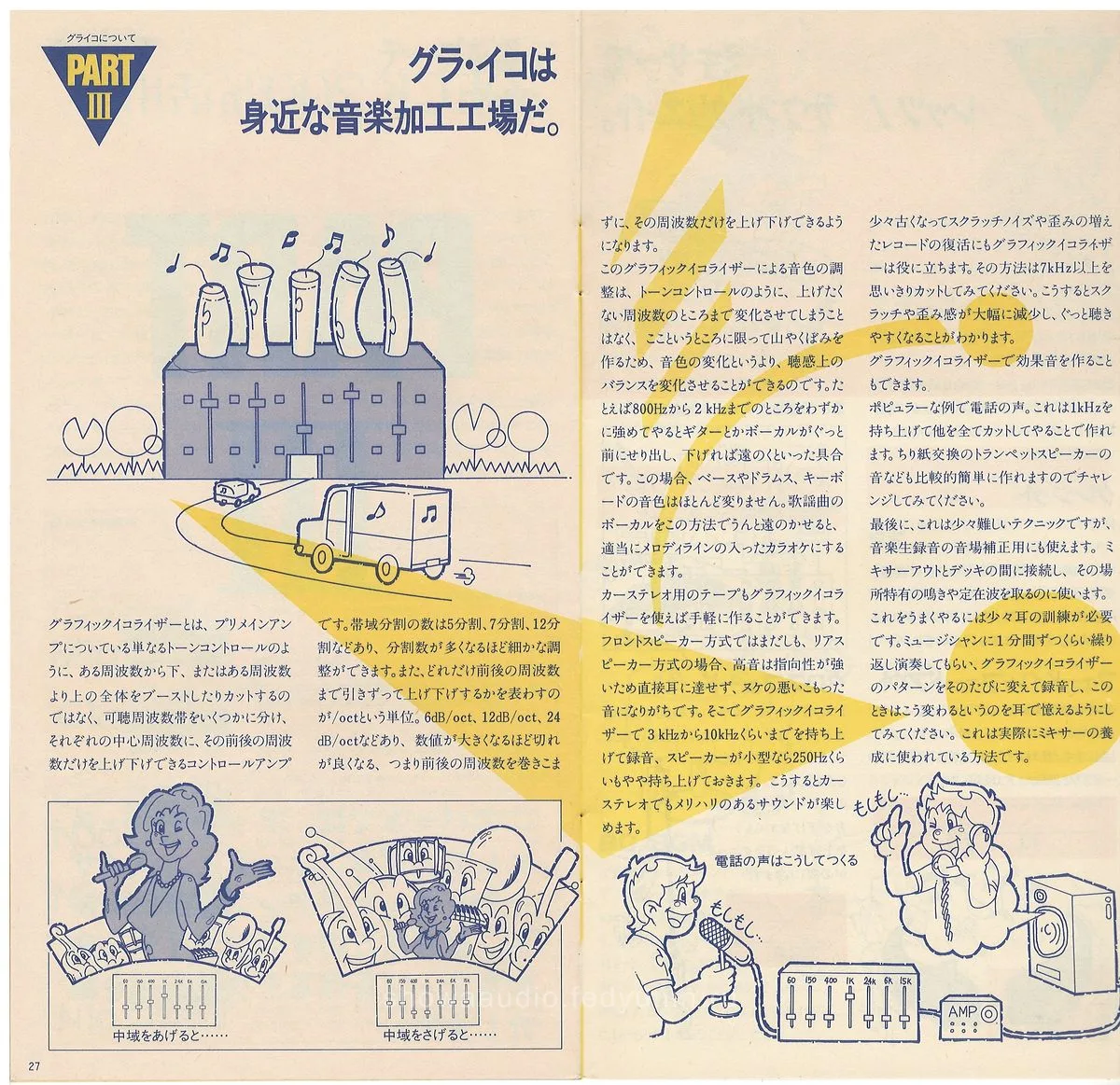

- グラフィックイコライザー - graphic equalizer: 5, 7, 12 and 24-band configurations
| Model | Type | Price |
|---|---|---|
| PIONEER CT-90R | cassette deck | |

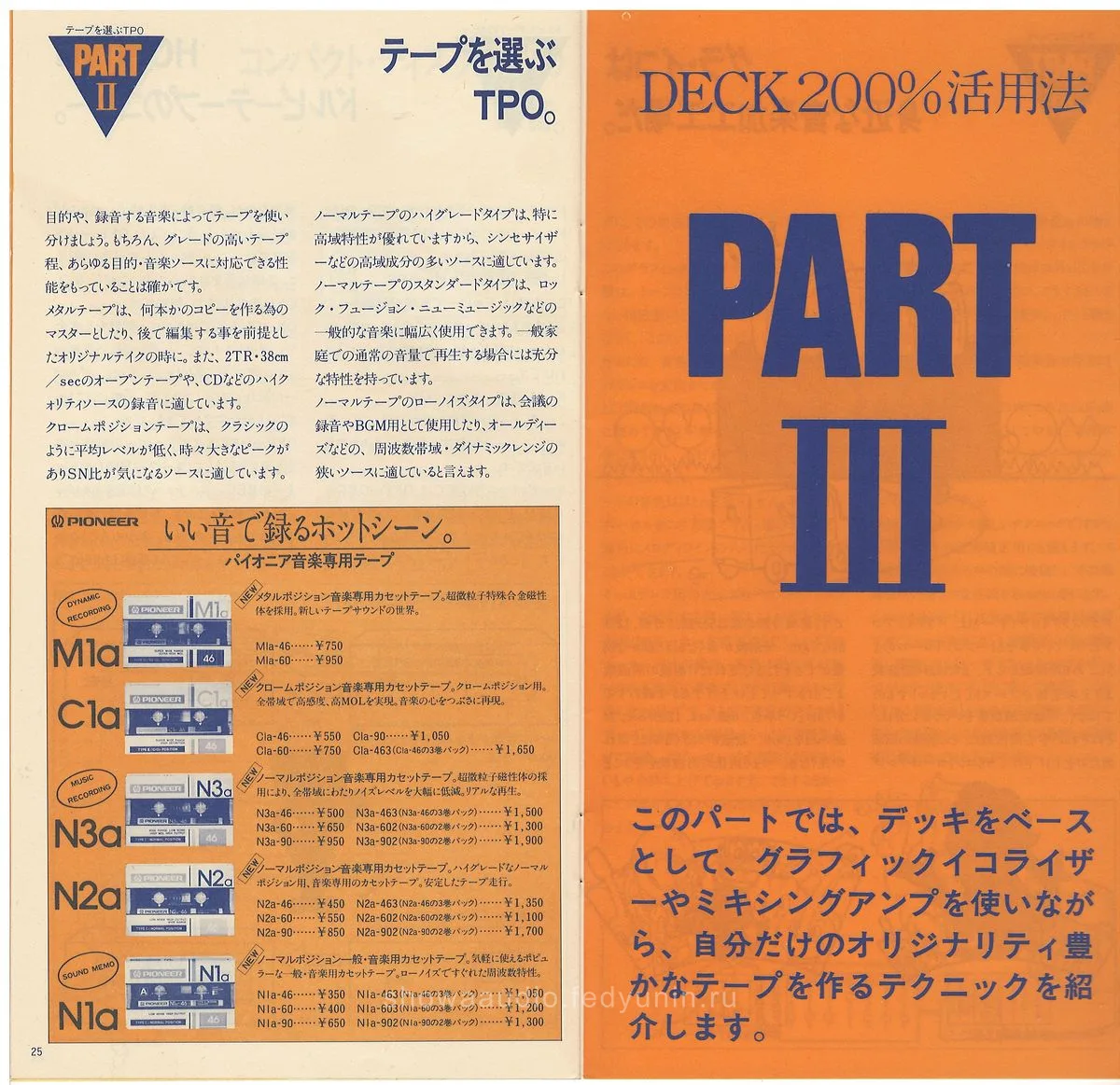

| PIONEER M1a | Type I cassette tape | |
| PIONEER C1a | Type II cassette tape | |
| PIONEER N1a | Type IV cassette tape | |
| PIONEER N2a | Type II cassette tape | |
| PIONEER N3a | Type I cassette tape | |
| PIONEER JT-203D | accessory | ¥600 |
AO-246
