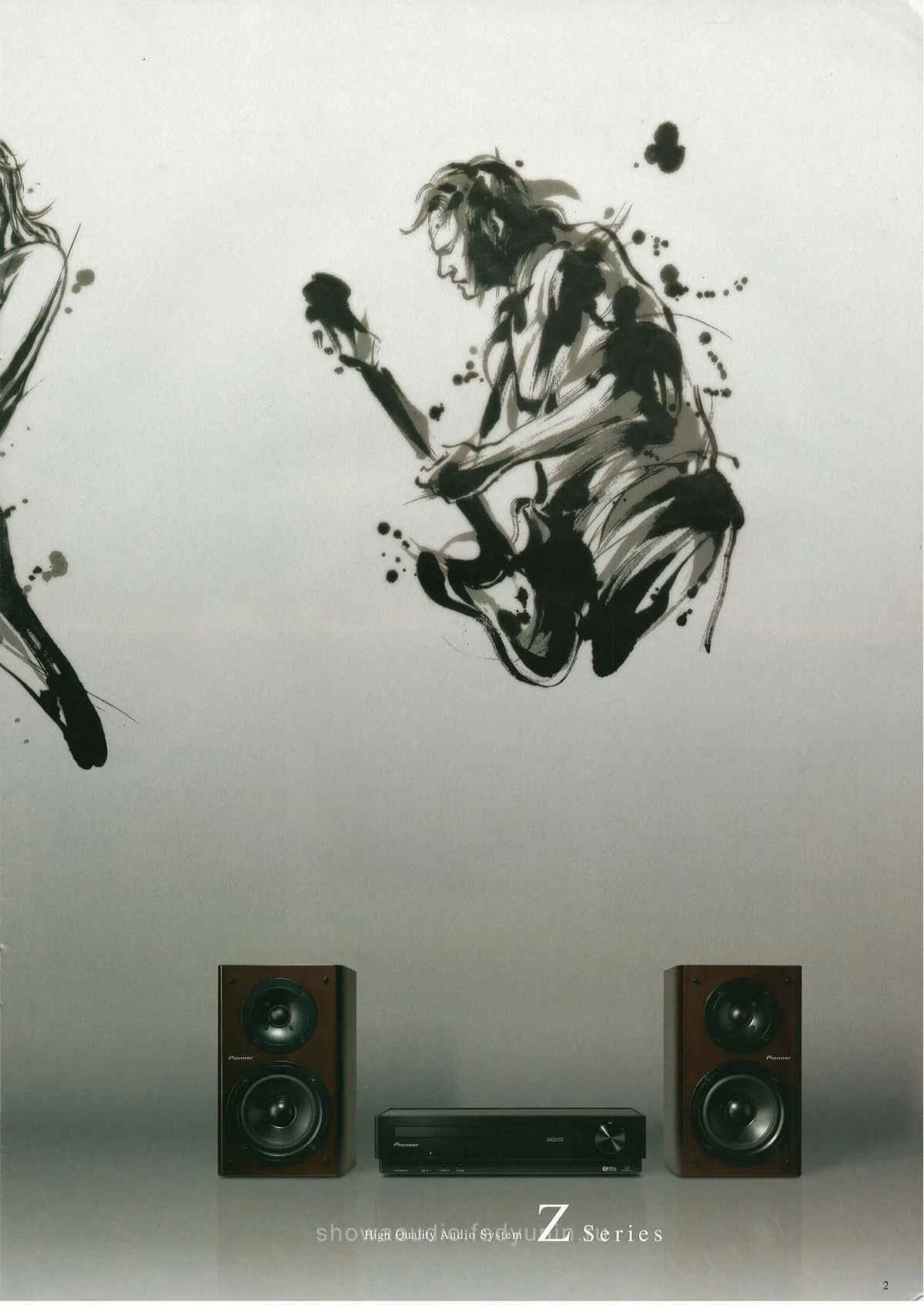

A catalog for the PIONEER Z Series mini-systems - the most recent item in our collection, November 2007. Two models: PIONEER X-Z7 at ¥129,000 and the flagship PIONEER X-Z9 at ¥188,000 - both with SACD, DLNA network playback and direct iPod connection. The sound was tuned by engineers at London’s Air Studios, the studio founded by George Martin - PIONEER put that right on the cover. Optional accessories include two analog turntables with built-in PHONO equalizers for the LINE/PHONO inputs.

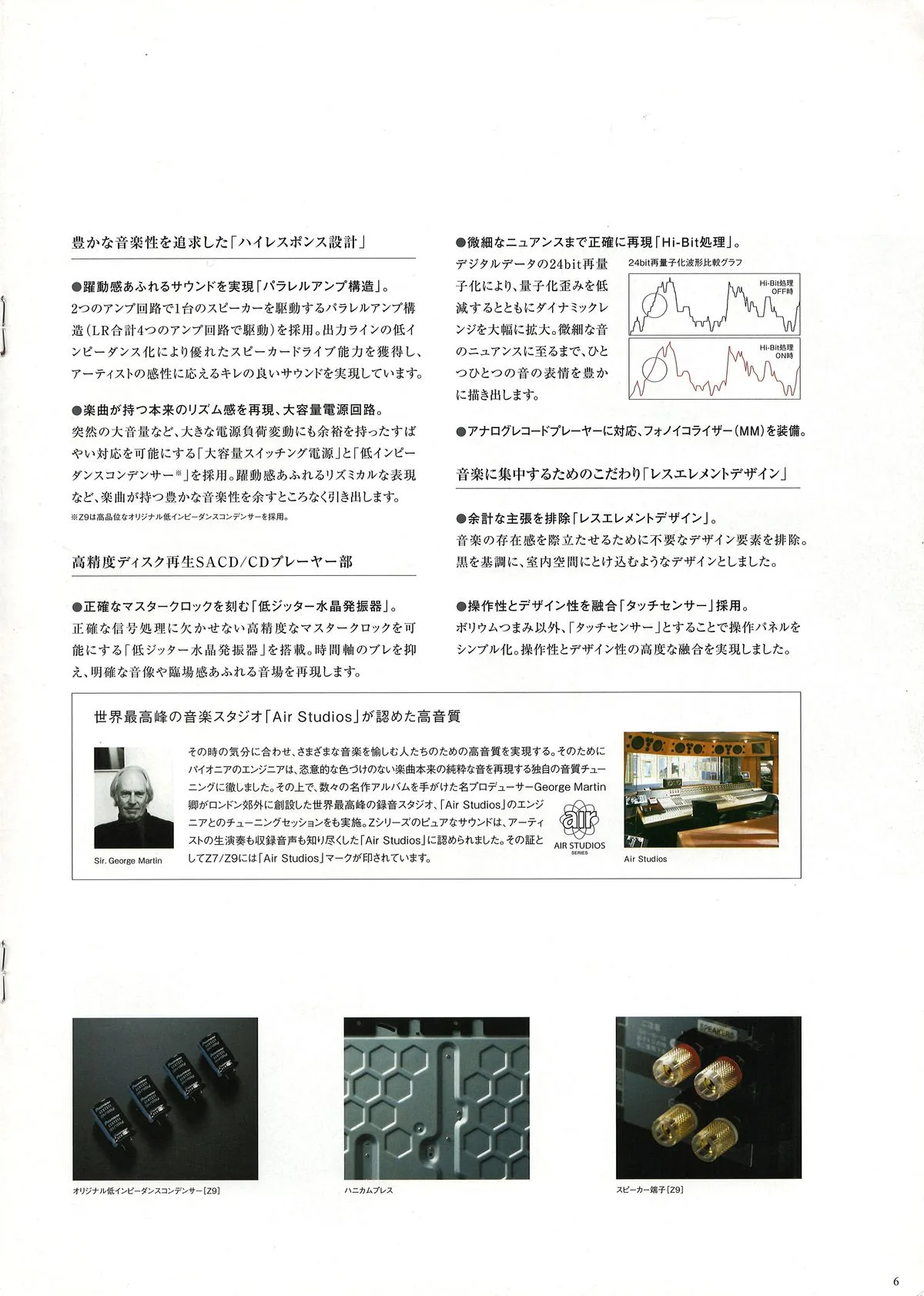

- Air Studios - sound tuning in collaboration with London's Air Studios, founded by George Martin
- アドバンスト・サウンドレトリバー - Advanced Sound Retriever - restores high-frequency content lost in MP3 and similar compressed formats
- ウルトラレゾリューション - Ultra Resolution - 32x oversampling in the DAC section, quantization noise suppression

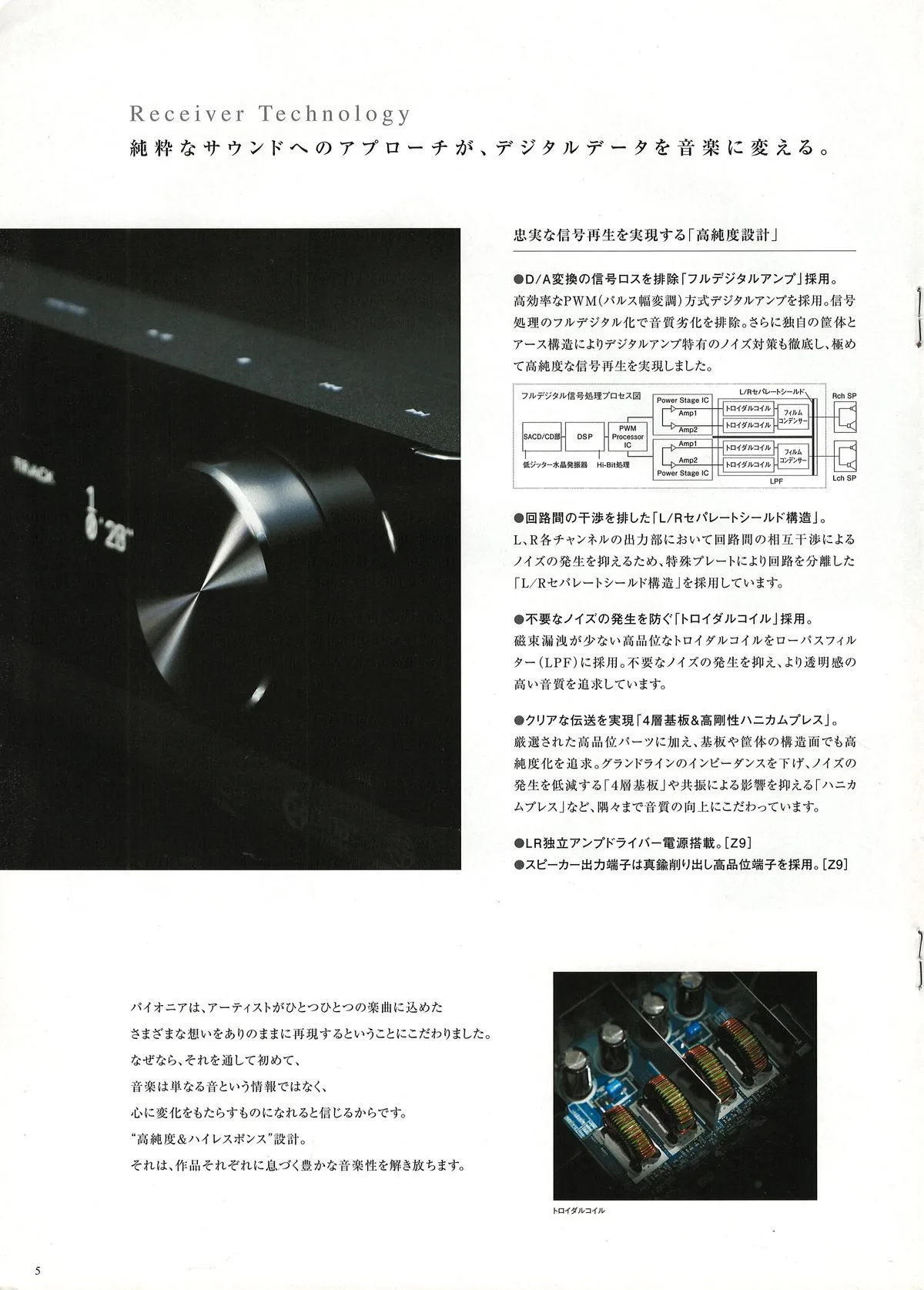

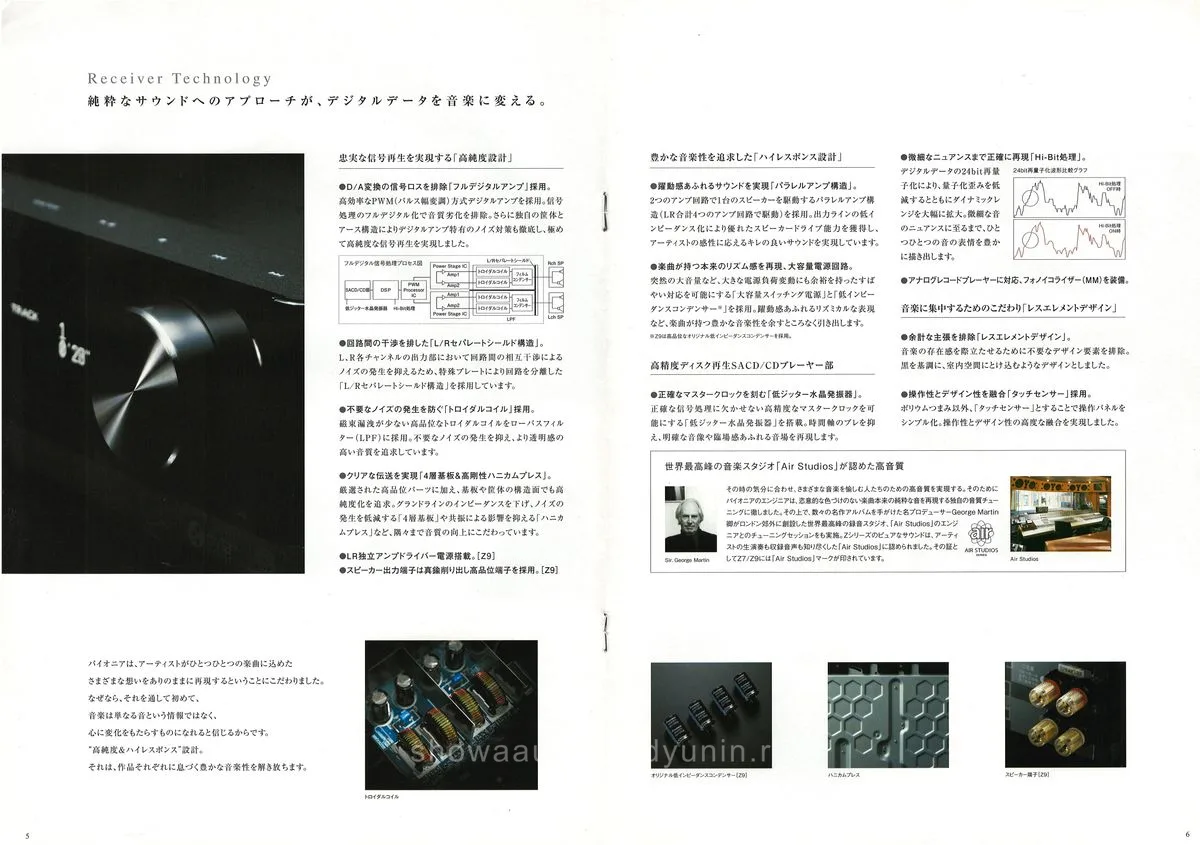

- バイレゾナンス設計 - Bi-Resonance Design - receiver chassis with parallel amplifier and differential input stage, eliminating parasitic resonances

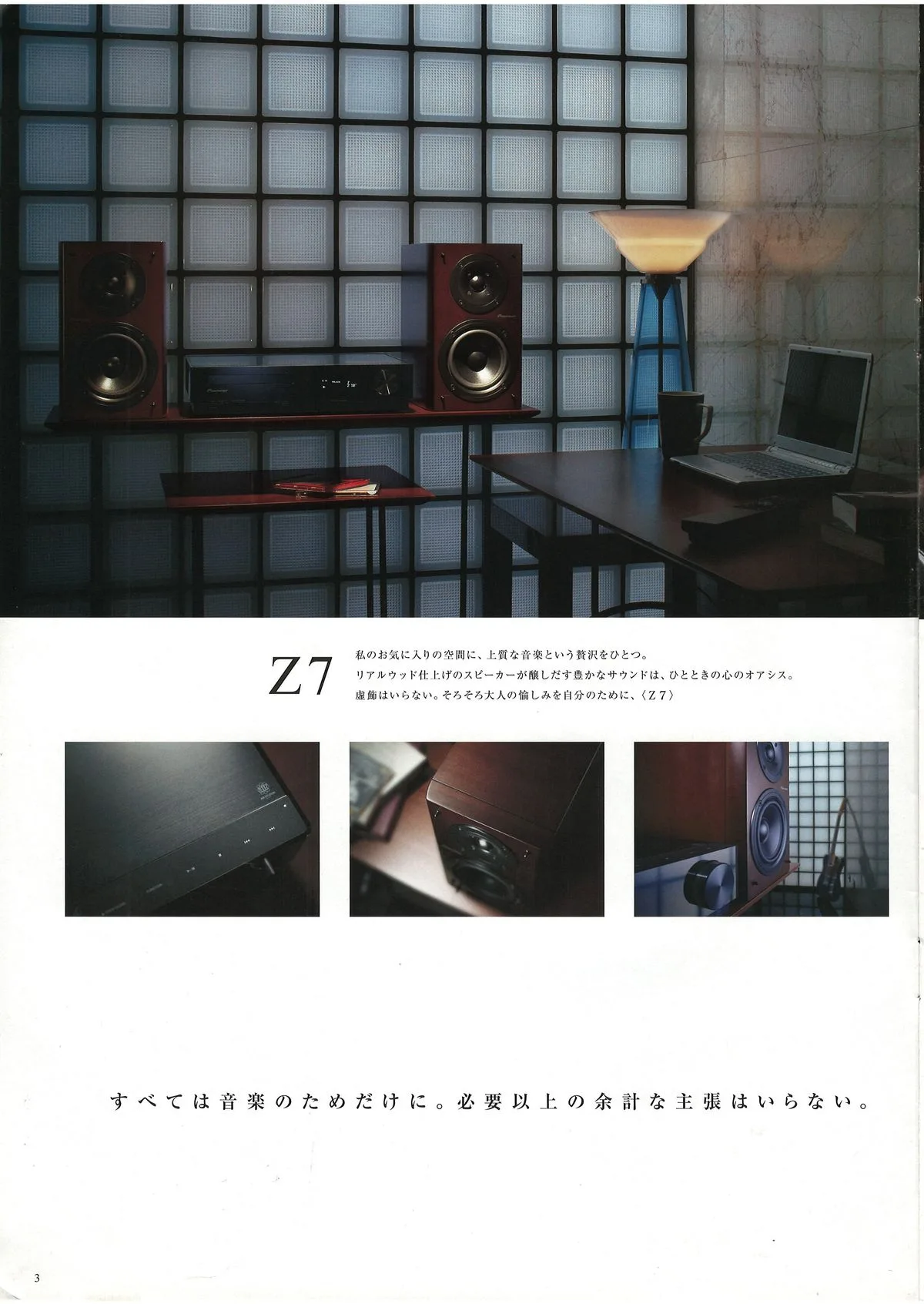

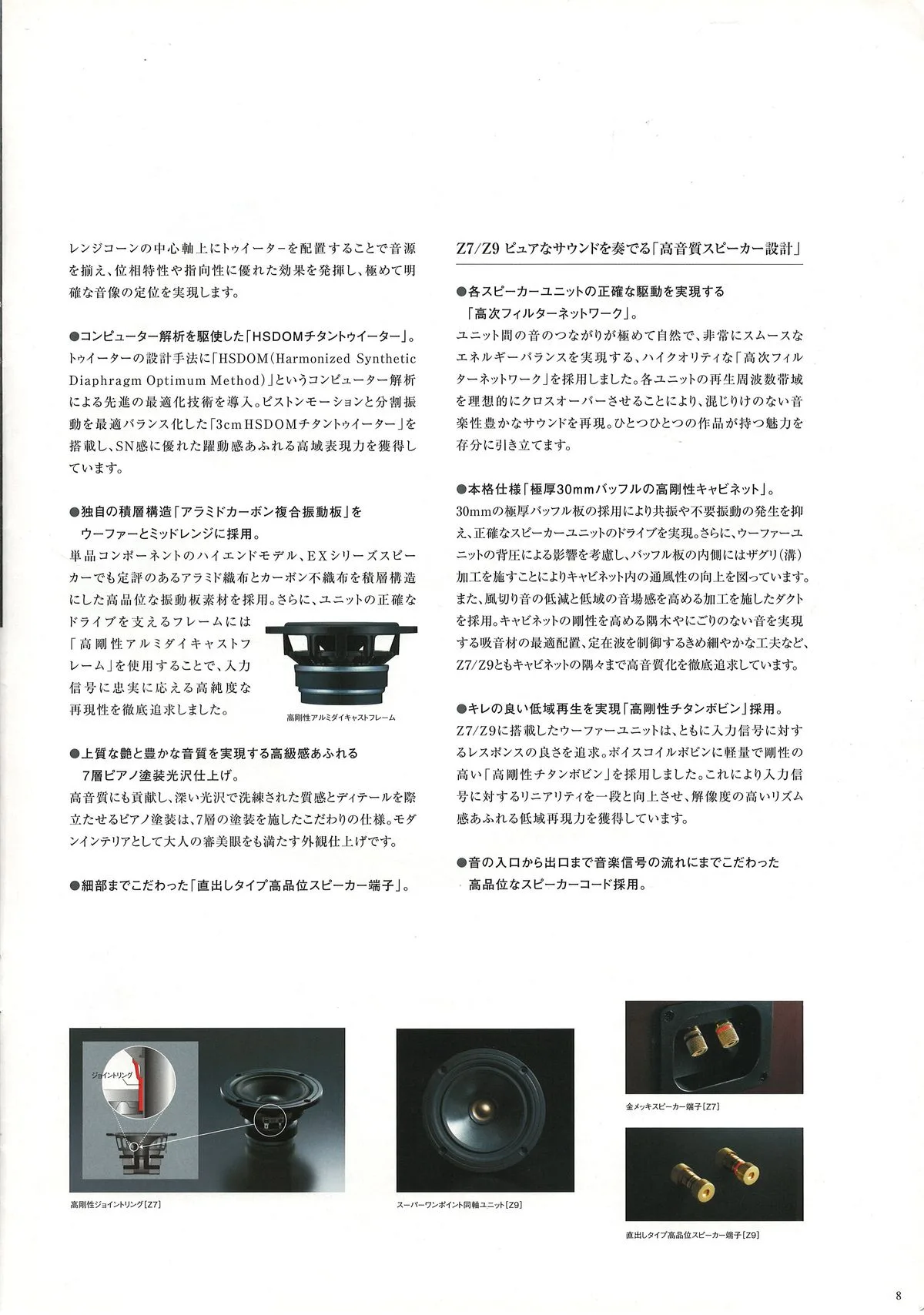

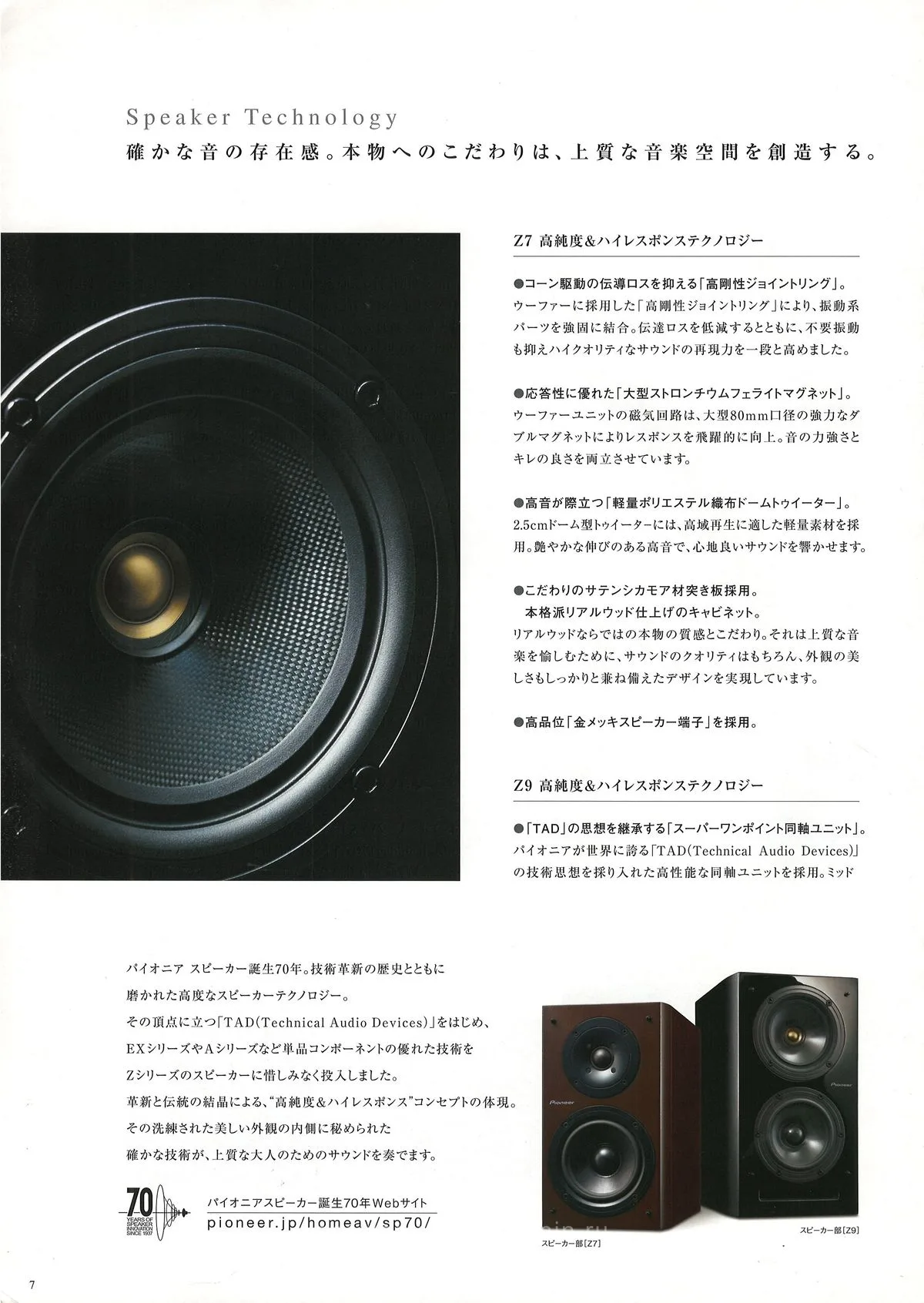

- 高純度ハイレゾナンステクノロジー (Z7) - Z7 driver technology - 13 cm cone woofer with vacuum frame, optimised vibration divider

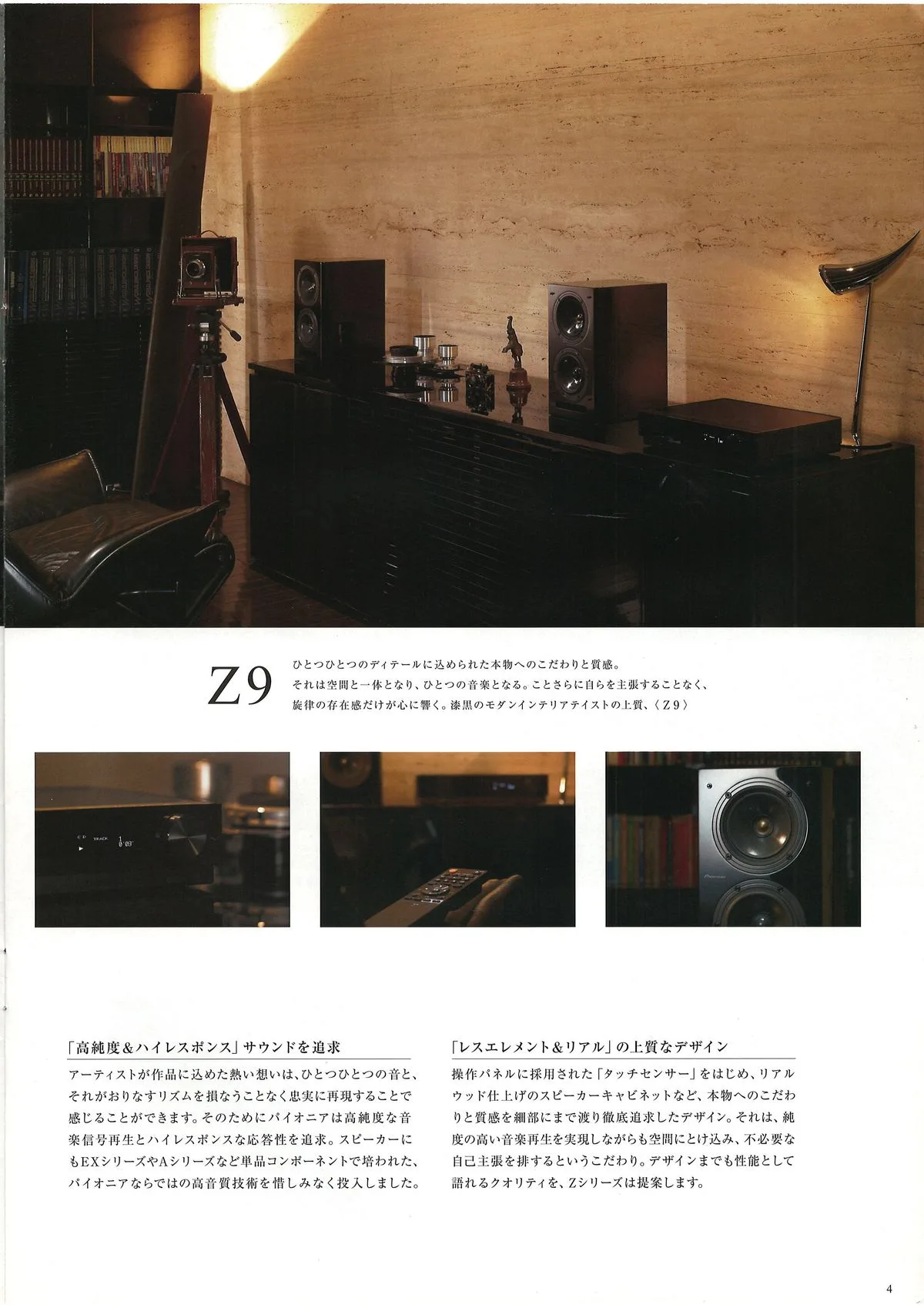

- 高純度ハイレゾナンステクノロジー (Z9) - Z9 driver technology - coaxial 13 cm midrange + 3 cm dome, 36 Hz - 50 kHz response
- RSDO∑ / 共振抑制ダイヤフラム最適化 - Resonance-Suppressed Diaphragm Optimisation - Z9 midrange diaphragm geometry and material optimised to suppress parasitic resonances

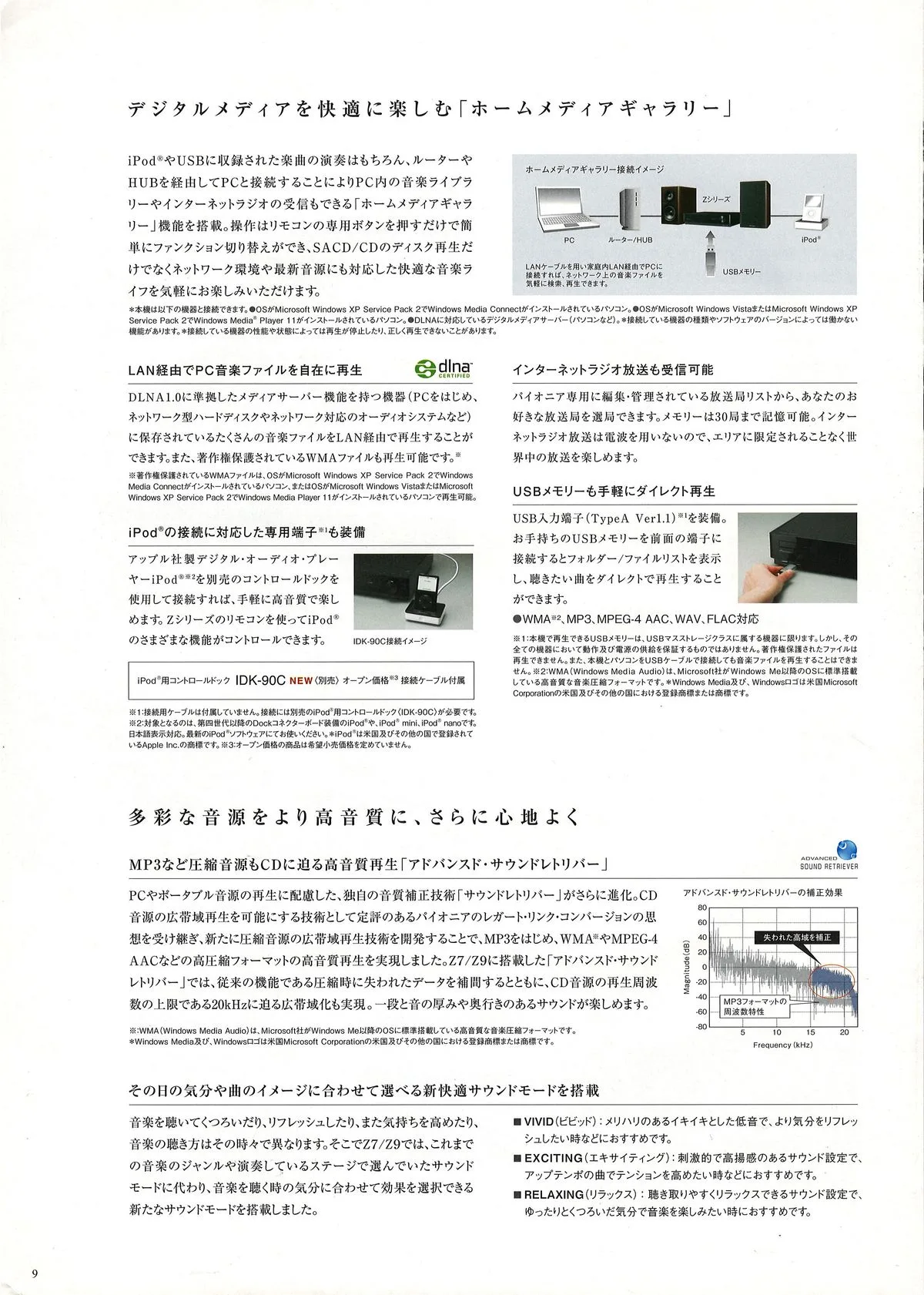

- ホームメディアギャラリー - Home Media Gallery - audio streaming from PC over home LAN, DLNA certified
- iPod接続 - direct iPod connection via proprietary dock, controllable from the receiver's remote
- 金メッキスピーカー端子 - gold-plated speaker terminals

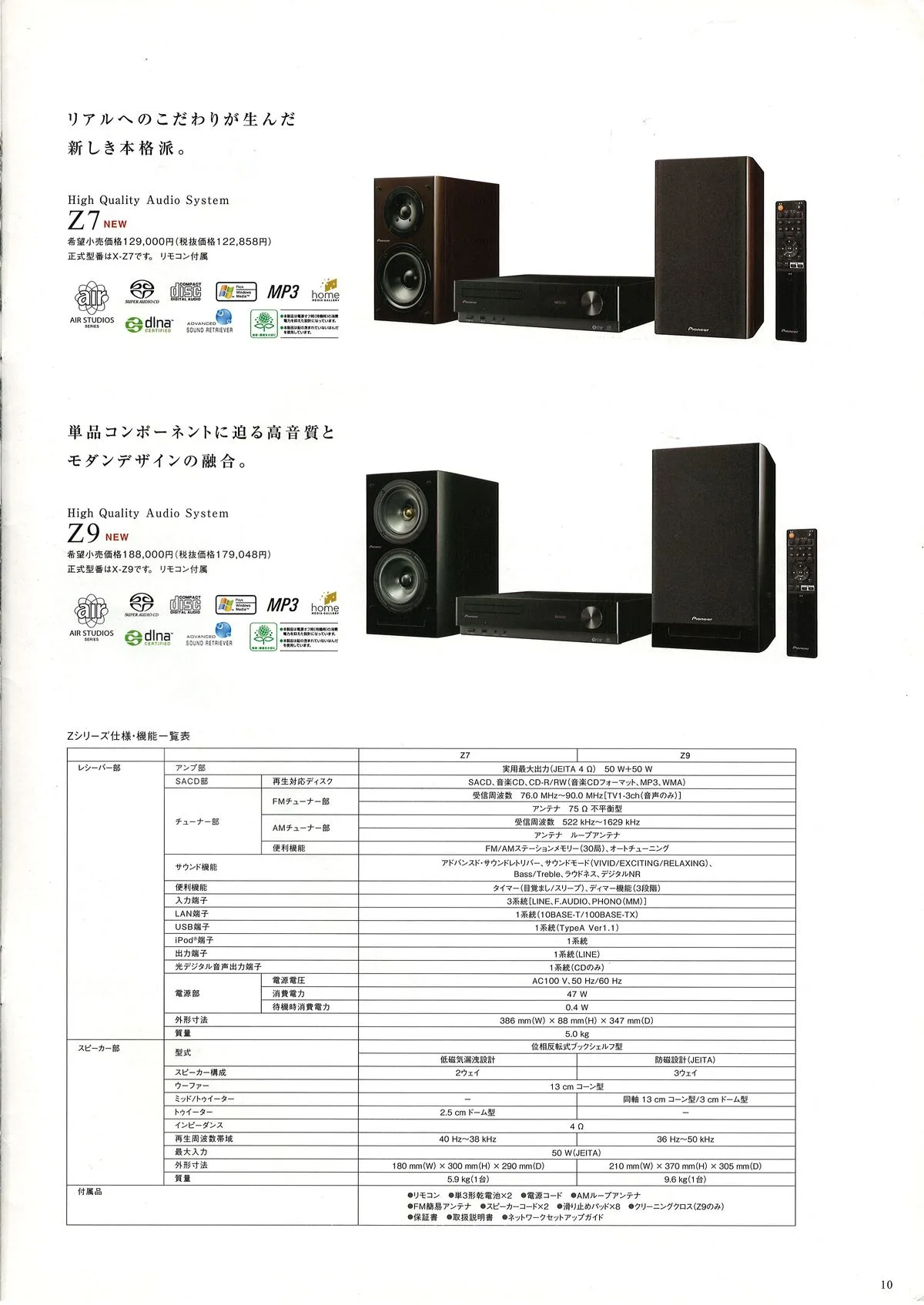

| Model | Type | Price |
|---|---|---|
| PIONEER X-Z7 | High Quality Audio mini-system, SACD/CD, FM/AM, DLNA, iPod, 50+50 W, 2-way speakers | ¥129,000 |
| PIONEER X-Z9 | High Quality Audio mini-system, SACD/CD, FM/AM, DLNA, iPod, 50+50 W, 3-way speakers | ¥188,000 |

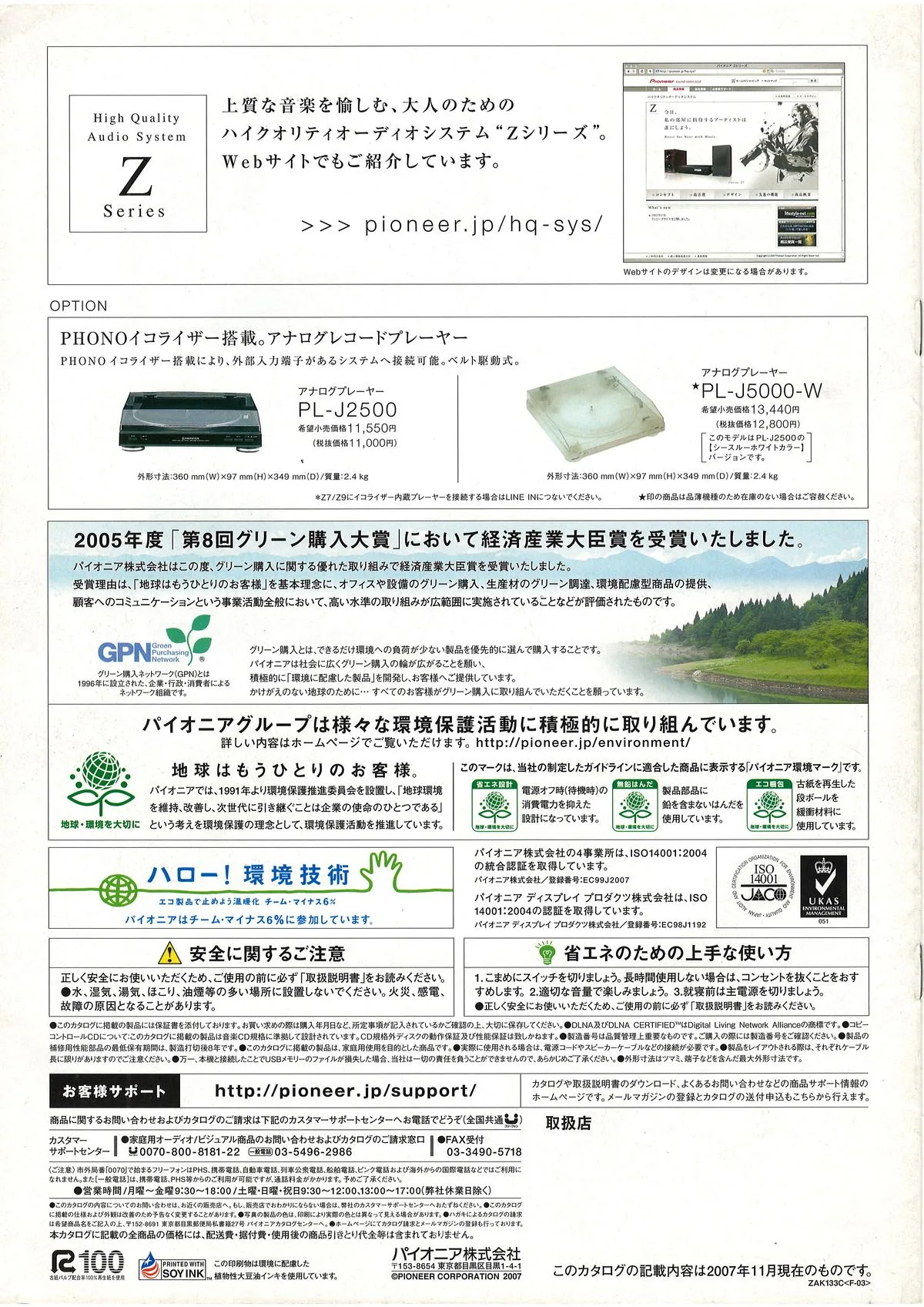

| PIONEER PL-J2500 | analog turntable, belt drive, built-in PHONO equalizer | ¥11,550 |
| PIONEER PL-J5000-W | analog turntable, white, built-in PHONO equalizer | ¥21,000 |
昭和82年11月（2007 November）ZAK-HQS-P-01
