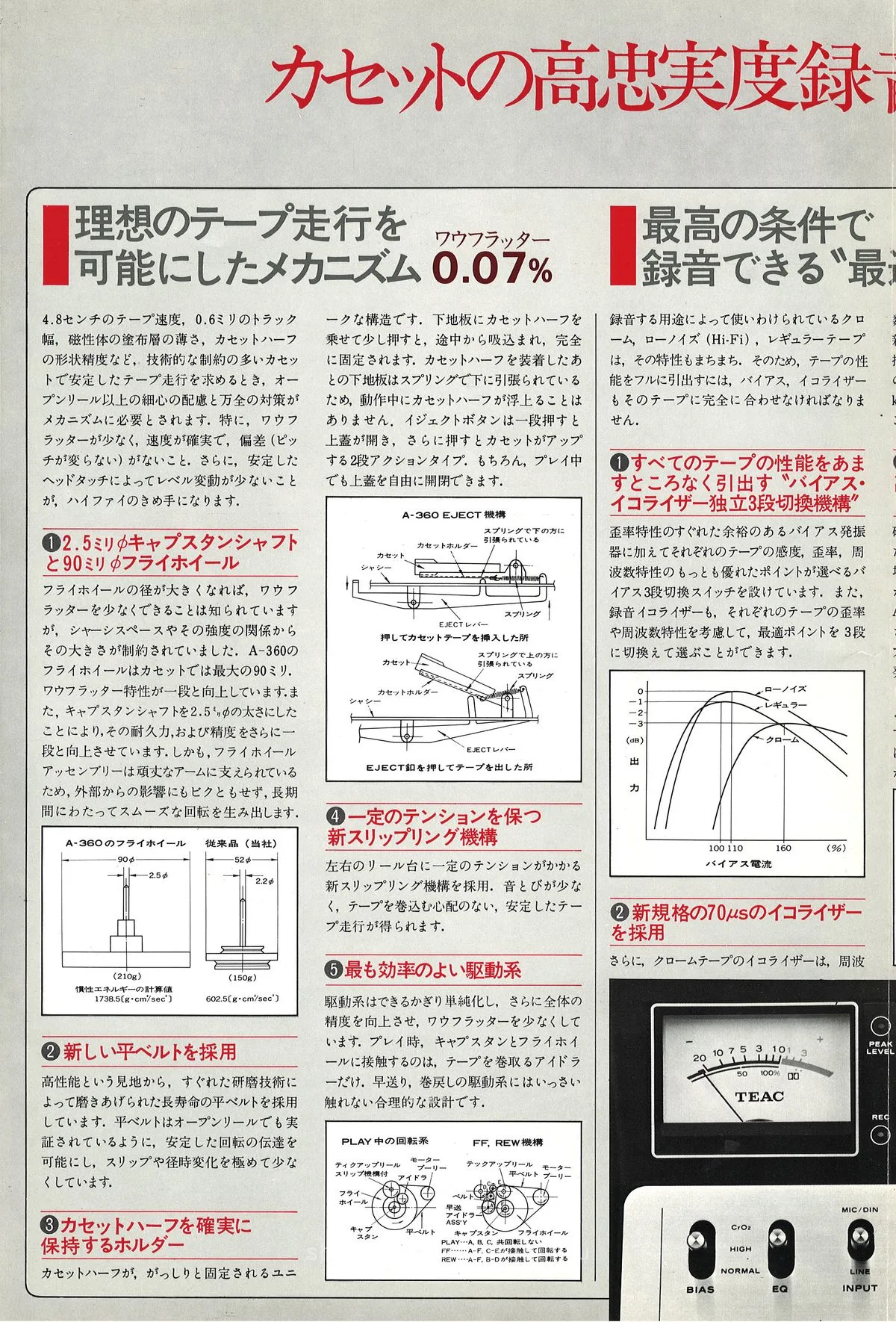

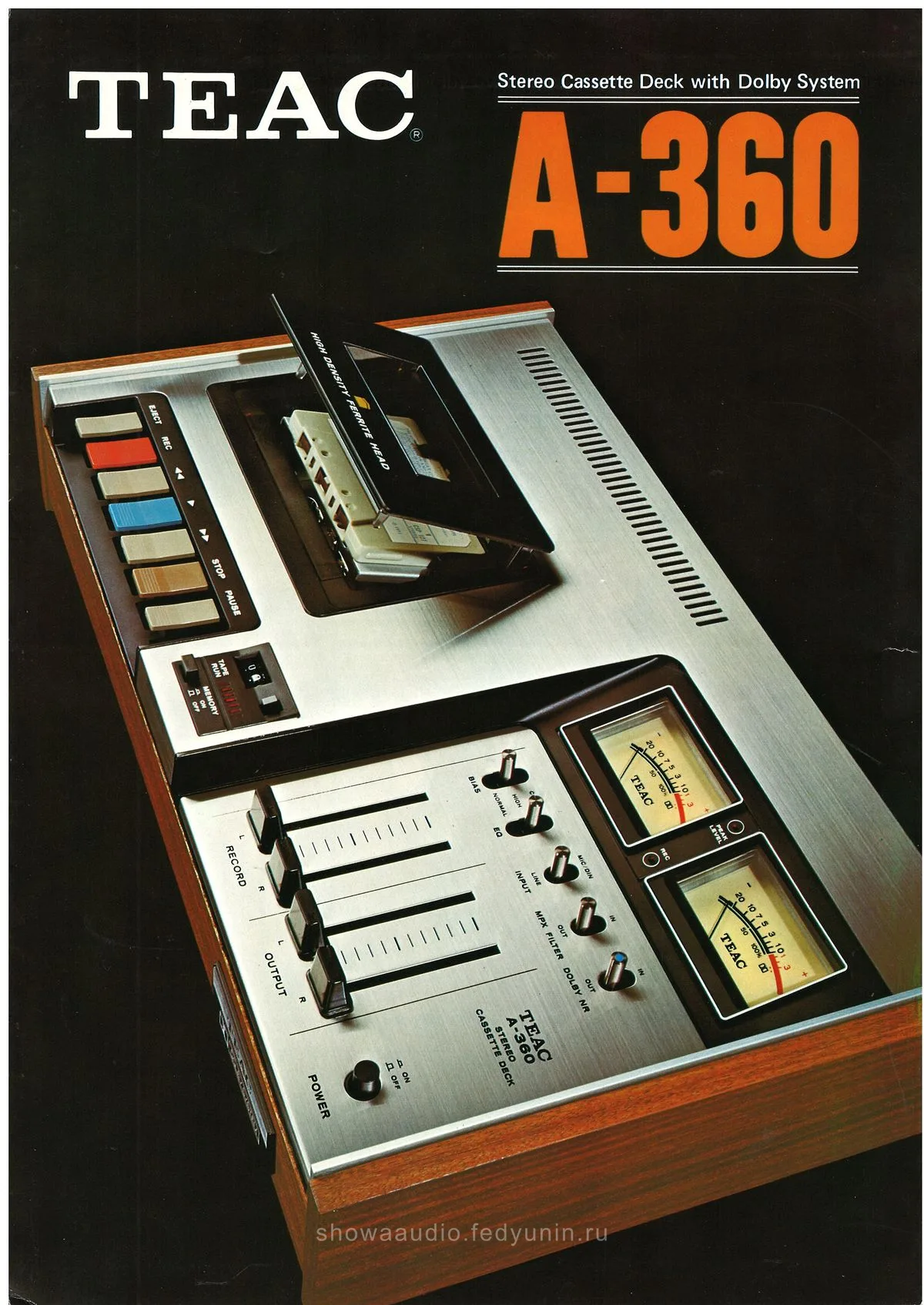

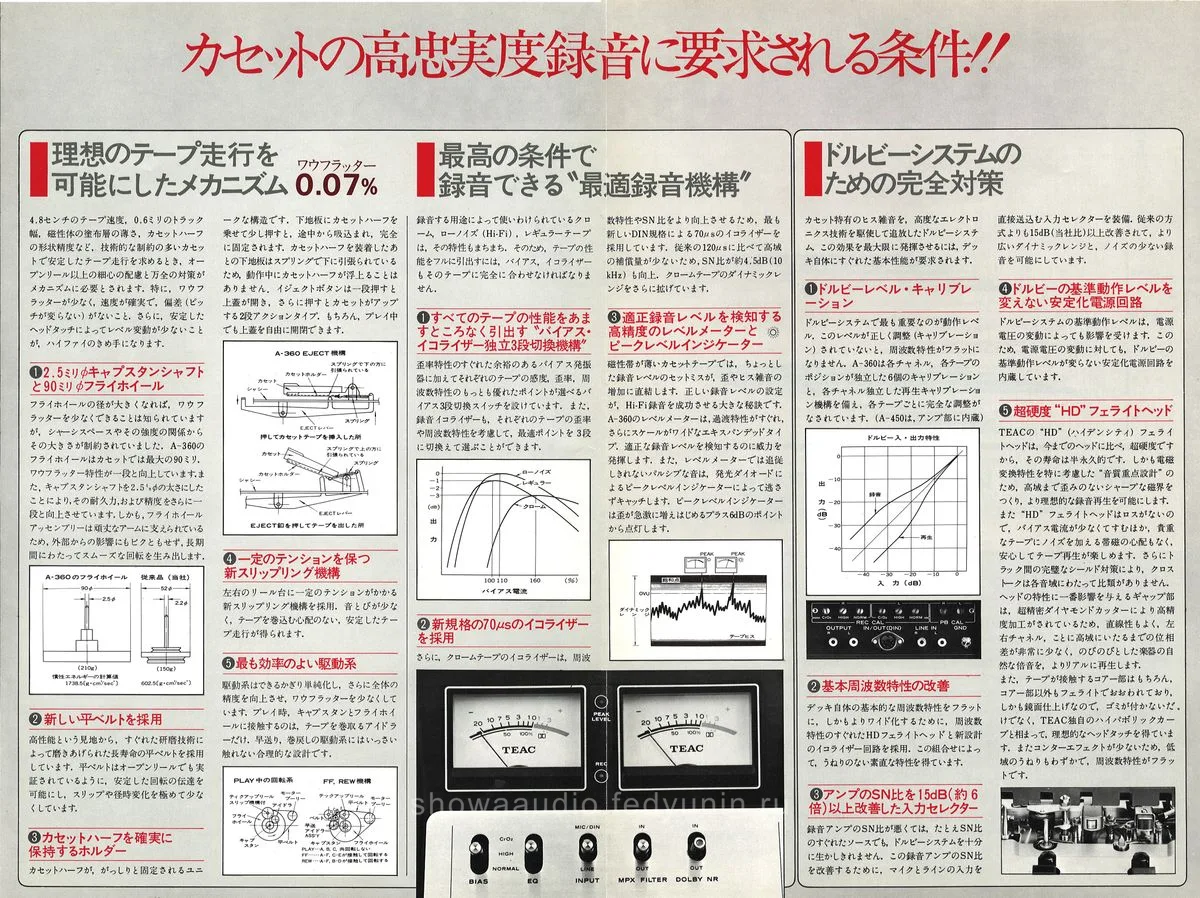

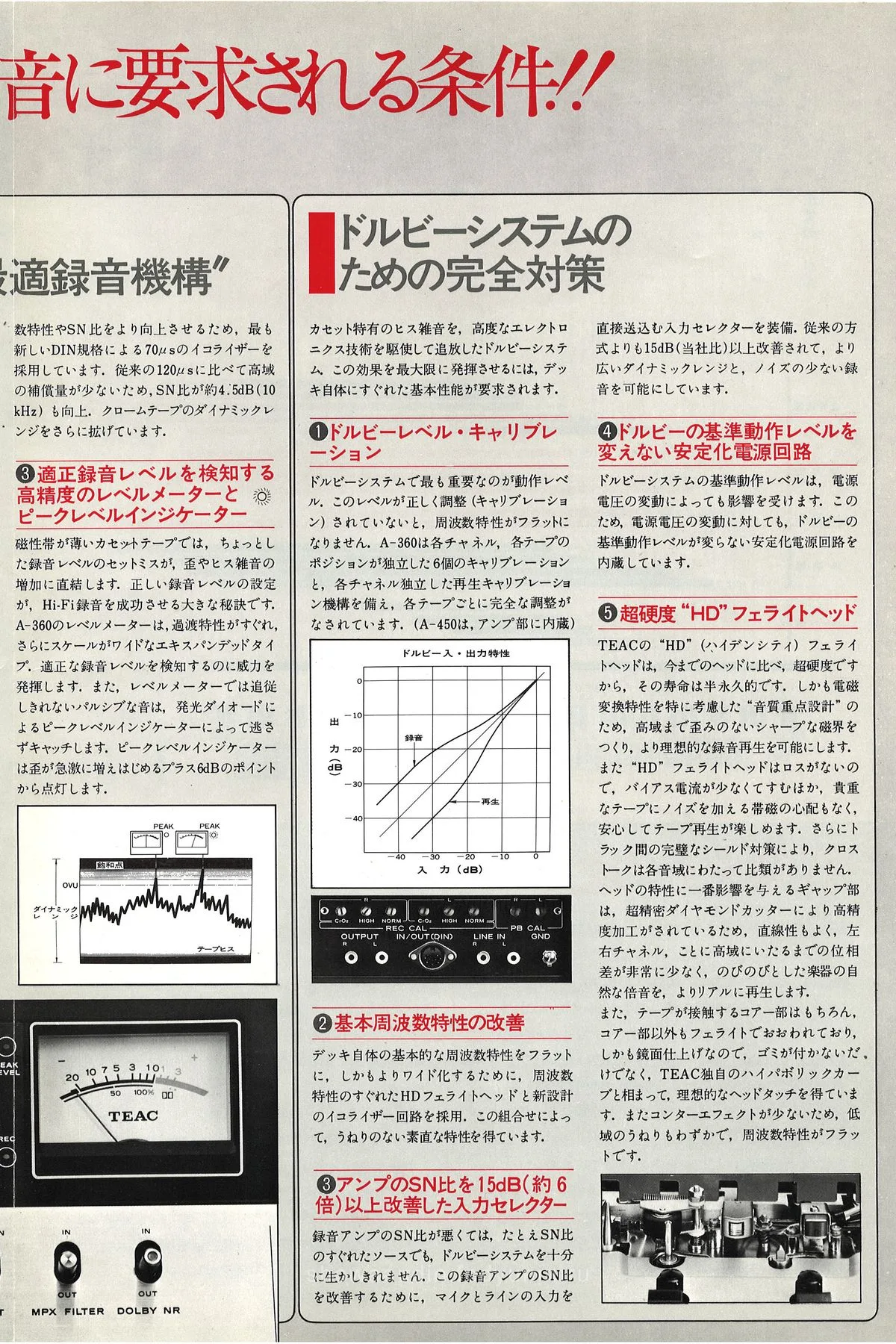

A leaflet for the TEAC A-360 stereo cassette deck with built-in Dolby B. Frequency response 30-18,000 Hz, wow-flutter 0.07% - the catalog states the transport mechanism was carried over from the reel-to-reel A-450. The inner spread is a technical briefing covering the equalizer circuit, peak recording level indicator, slipping mechanism, and Dolby noise reduction. Price: ¥79,800.
- ワウ・フラッター 0.07% - Wow-flutter 0.07% (peak) - transport mechanism carried over from the reel-to-reel A-450 and adapted for the cassette format
- ドルビーシステム内蔵 - Built-in Dolby B noise reduction - delivers -52 dB S/N ratio
- 最適録音機構 (イコライザー) - Optimum recording equalizer circuit - tailors the frequency response to match LH tape characteristics
- ピーク・レベリング・インジケーター - Peak leveling indicator - displays peak signal levels to prevent overload
- スリッピング機構 - Slipping mechanism - cushions the transport, reducing wow-flutter caused by tape tension variations
| Model | Type | Price |
|---|---|---|
| TEAC A-360 | Stereo cassette deck, Dolby B, 2-head | ¥79,800 |
昭和49年3月（1974 March）2N62-110-1(1)1
