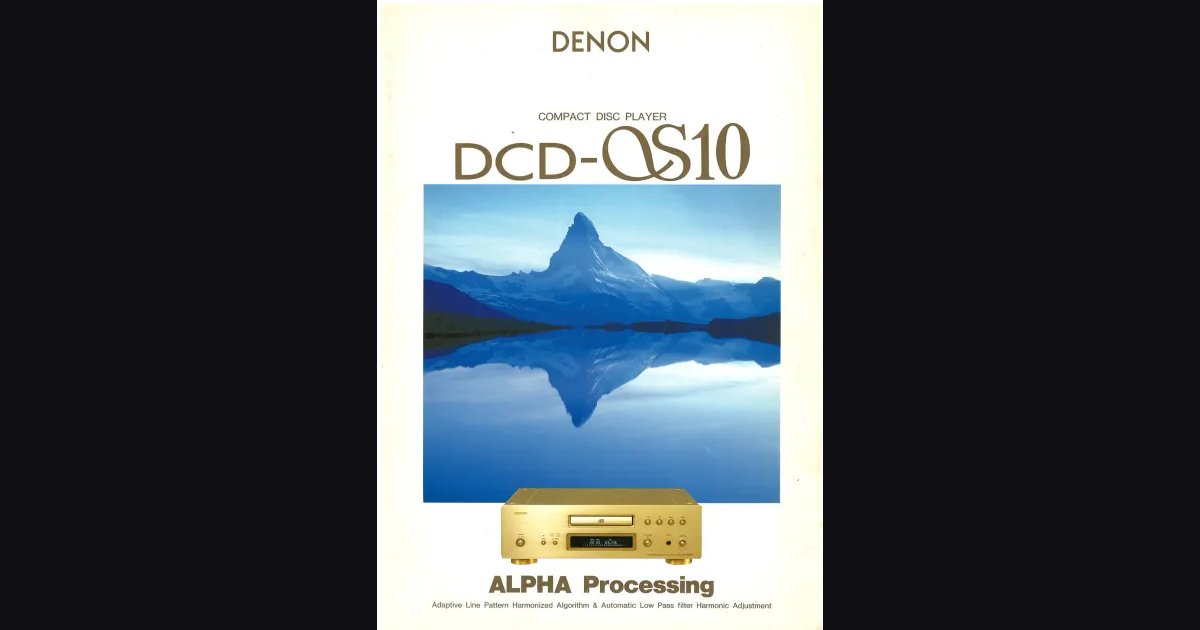

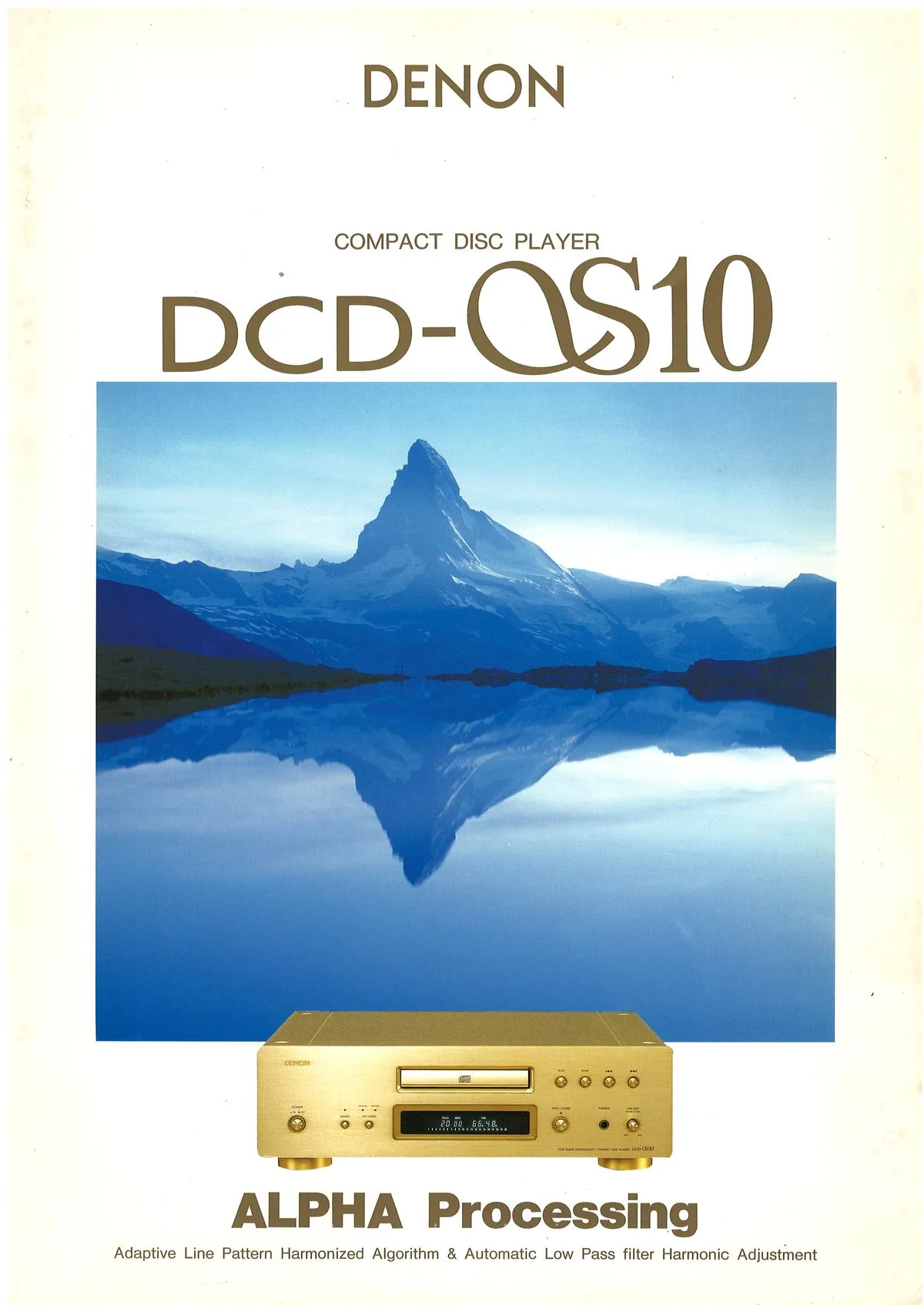

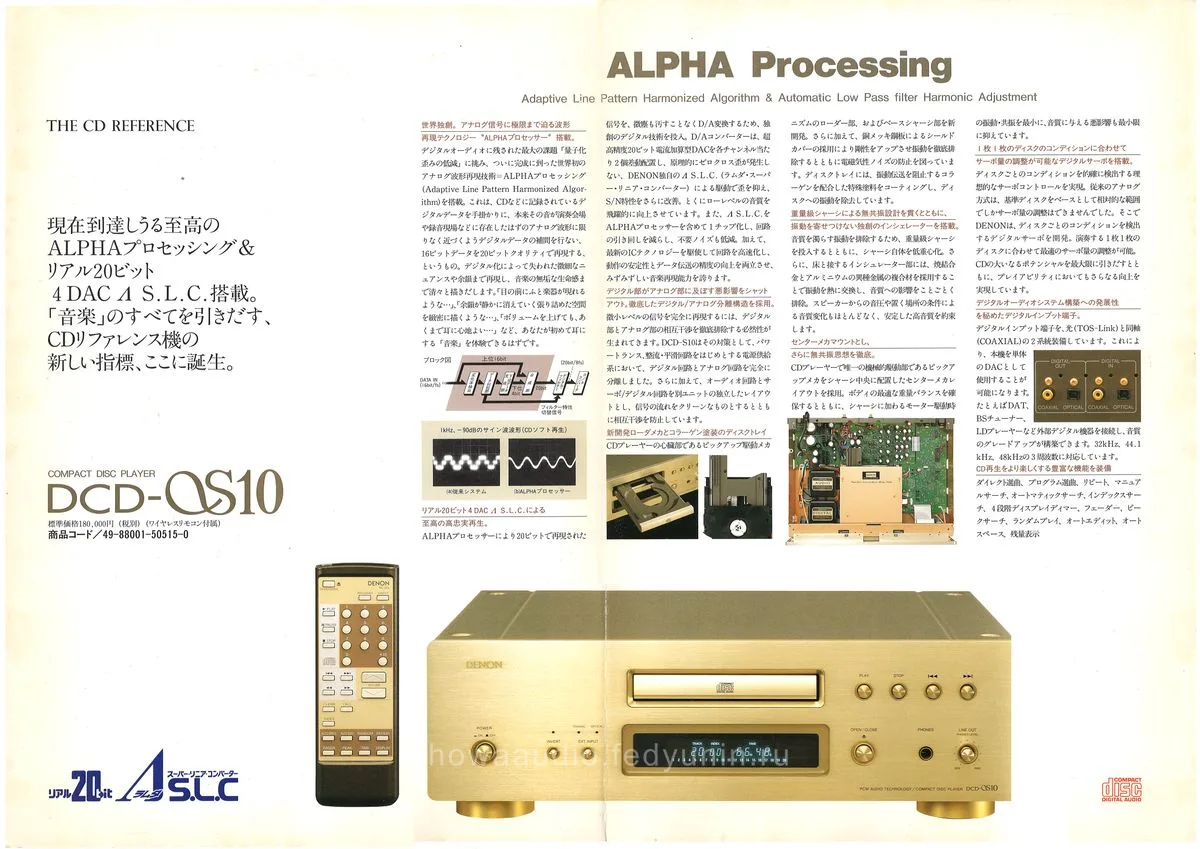

A4-folded brochure for the DENON DCD-αS10, the flagship CD player of DENON’s α series. The cover shows the Matterhorn mirrored in a lake, and the allusion runs both ways: ALPHA as the Greek letter and ALPHA as in the Alps. The headline “ALPHA Processing” spells out the acronym - Adaptive Line Pattern Harmonized algorithm & Automatic Low pass filter Harmonic Adjustment, DENON’s in-house interpolation that turns a 16-bit CD signal into 20-bit quality. Inside: Real 20-bit 4DAC α S.L.C. (Lambda Super Linear Converter), four high-precision voltage-segment DACs (two per channel), a 20-bit 8x oversampling digital filter and a GIC 3rd-order analog filter. The separation of digital and analog circuitry is taken to fanatical lengths: dedicated transformers, rectifiers and power rails for audio and servo, a centred transport mechanism, a heavy non-resonant chassis with insulators made from a sintered-alloy + aluminium composite. The unexpected touches are an adaptive servo that can be tuned to each individual disc, and digital inputs (TOS-Link + coaxial) that turn the player into a standalone 20-bit DAC for DAT and LD at 32 / 44.1 / 48 kHz. Price ¥180,000 before tax, gold front panel in the S-series style, weight 14 kg. The centrefold runs the trademark (a) conventional vs (b) ALPHA waveform diagrams at 1 kHz / -90 dB, the comparison DENON loved to print in every S-series brochure of the era. The slogan inside reads like a manifesto: “THE CD REFERENCE - a new benchmark for the CD reference machine is born here.”
- ALPHAプロセッシング (Adaptive Line Pattern Harmonized Algorithm) - ALPHA Processing - DENON proprietary technique: interpolation that reproduces a 16-bit CD signal at 20-bit quality. Acronym: Adaptive Line Pattern Harmonized algorithm + Automatic Low pass filter Harmonic Adjustment
- リアル20ビット 4DAC α S.L.C. - Real 20-bit 4DAC α S.L.C. (Lambda Super Linear Converter) - four high-precision 20-bit voltage-segment DACs, two per channel, eliminating zero-cross distortion
- 20bit 8倍オーバーサンプリング・デジタルフィルター - 20-bit 8× oversampling digital filter before the DAC stage
- GIC 3次アナログフィルター - GIC (Generalized Impedance Converter) 3rd-order analog filter after the DAC stage
- デジタル/アナログ完全分離 - Complete digital/analog separation: dedicated transformers, rectifiers and power supplies for the audio path and the servo controller
- 重量級シャーシ + 異種金属の複合材インシュレーター - Heavy non-resonant chassis with insulators of sintered alloy + aluminium composite, centred CD transport mechanism
- 1枚1枚のディスクのコンディションに合わせてサーボ最適調整 - Adaptive servo control: tracking parameters can be tuned to each individual disc
- デジタル入力端子 (光TOS-Link + 同軸COAXIAL) - Digital inputs (optical TOS-Link + coaxial) - the unit doubles as a standalone 20-bit DAC for DAT, LD and other 32 / 44.1 / 48 kHz sources
| Model | Type | Price |
|---|---|---|
| DENON DCD-αS10 | CD reference-class player | ¥180,000 |
