DENON, October 1980 PMA-970 - amplifiers
https://storage.yandexcloud.net/showaaudio-media/images/items/denon-pma-970-1980-10/main-01.webp19803denon19803 📃
デンオン カタログ・昭和55年10月

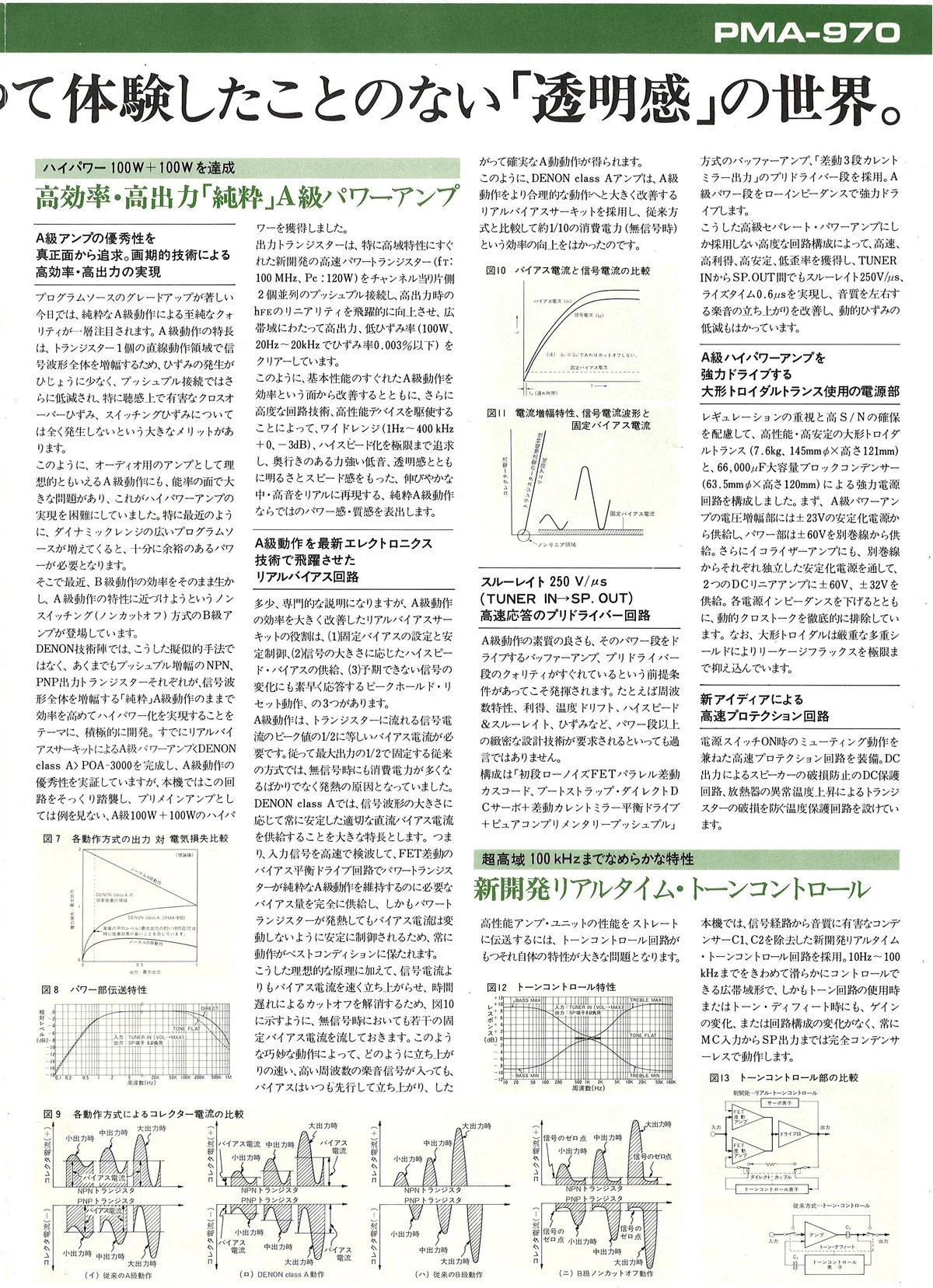

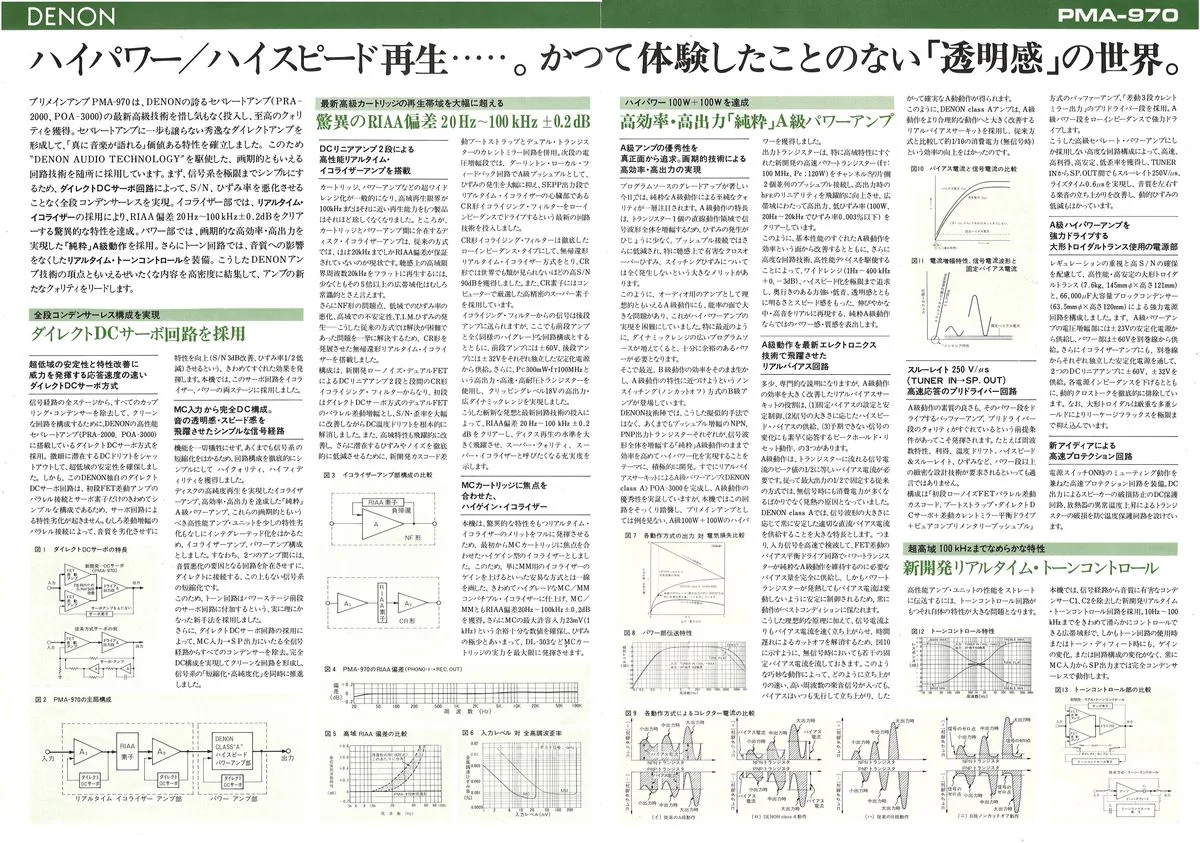

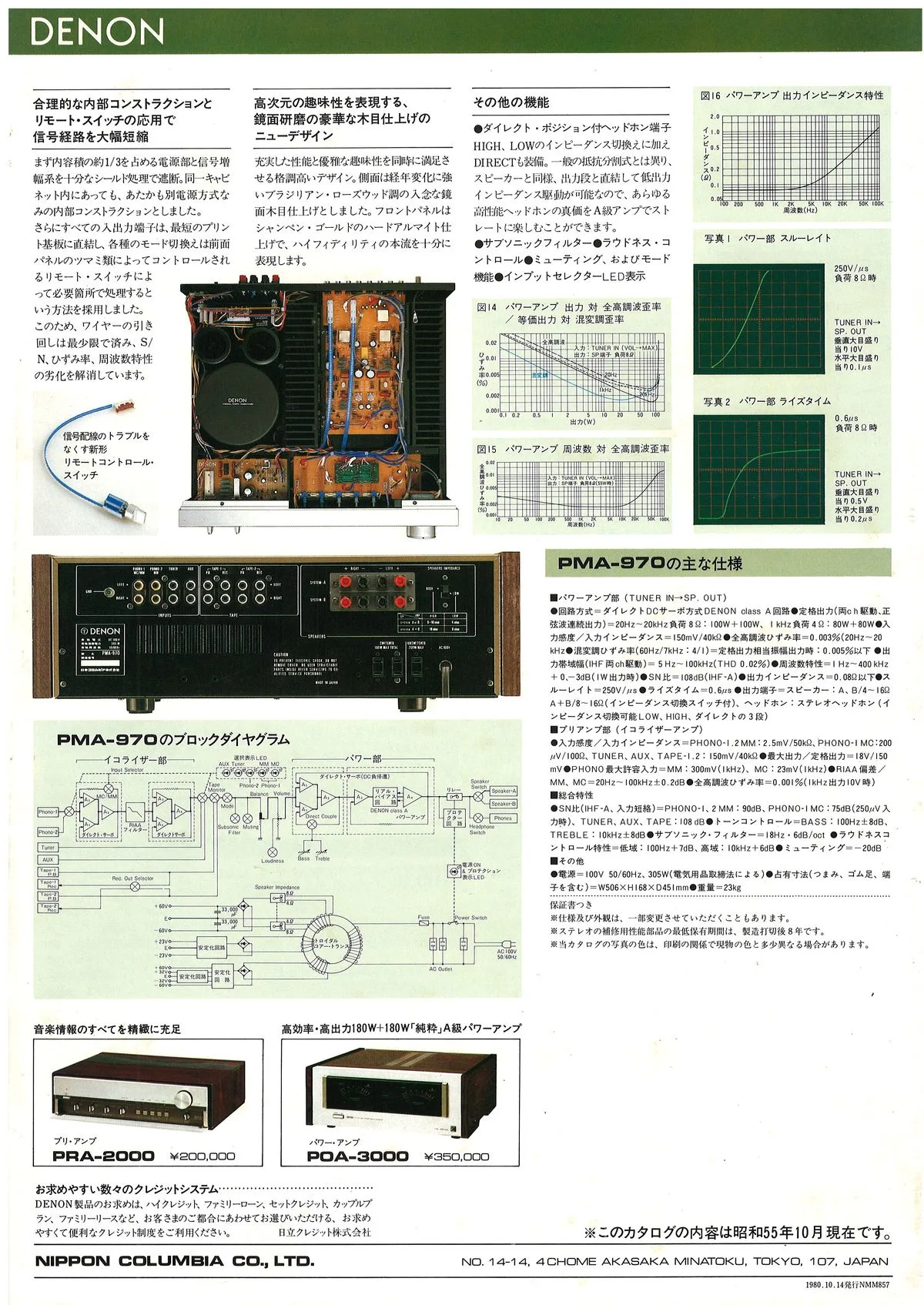

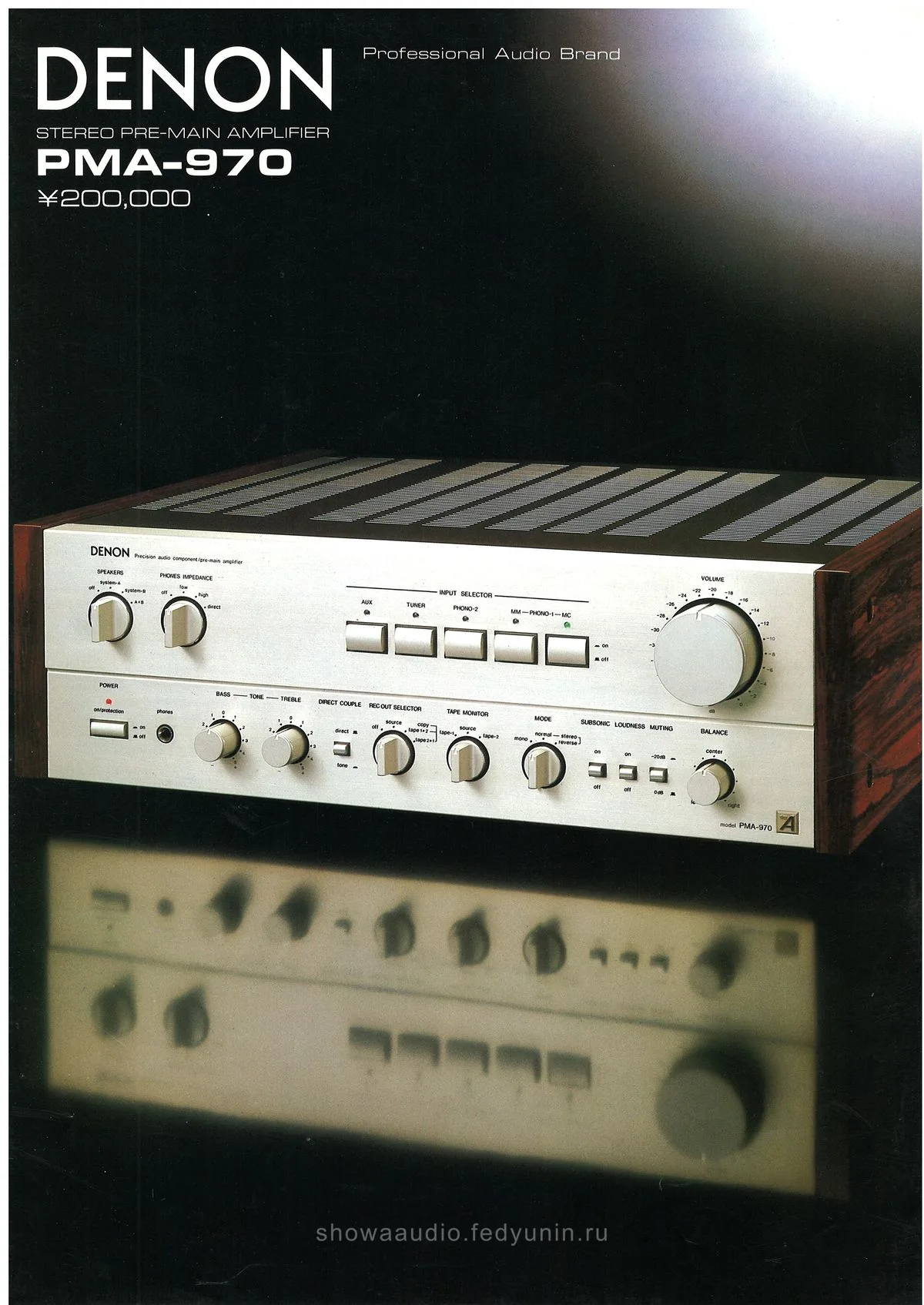

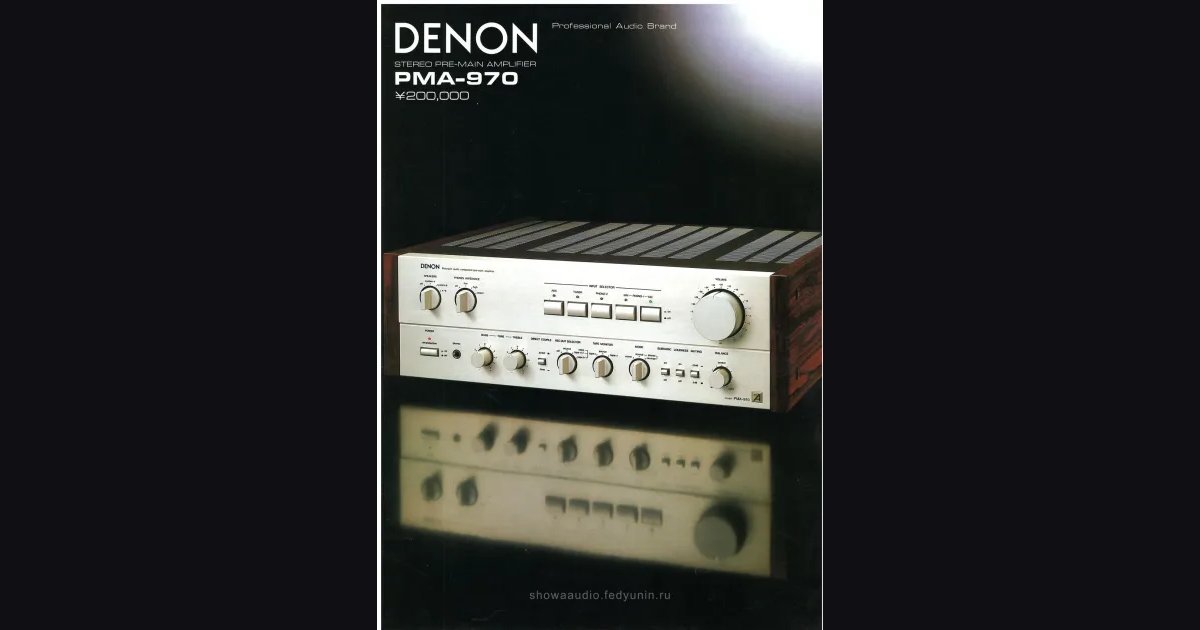

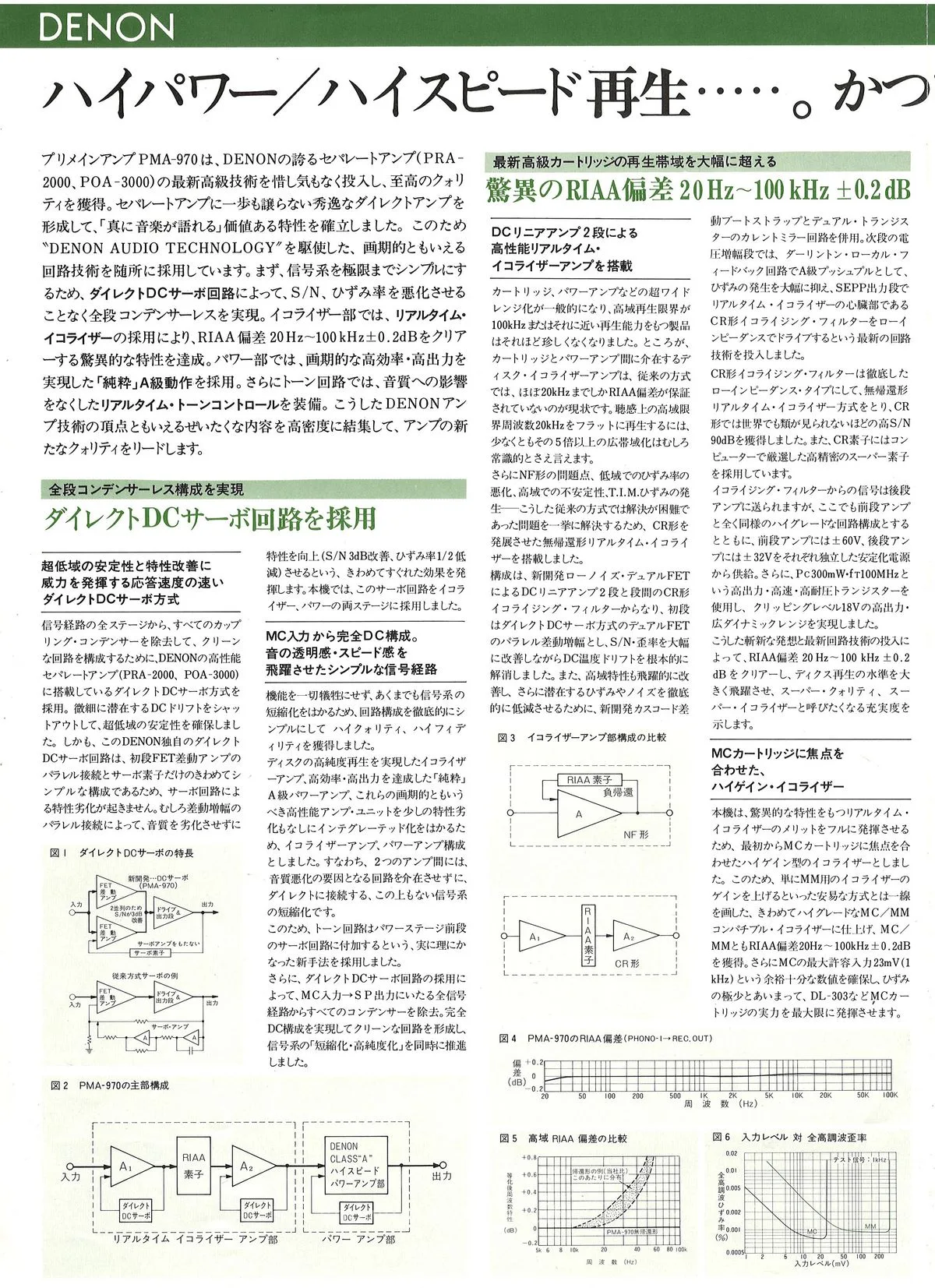

An A3 sheet folded in half, covering a single integrated amplifier - DENON PMA-970 (¥200,000), the PMA series flagship as of October 1980. The spread breaks down the design: Direct A circuit (ダイレクトAアンプ) with no capacitors in the signal path, pure Class A output stage (純A級), Super Equalizer (スーパーイコライザー) spanning from MC input to speaker output, DC Servo for offset stabilization, and RIAA correction within ±0.2 dB. The back page includes a PMA-970 block diagram and the companion components from the same lineup: preamplifier PRA-2000 (¥200,000) and power amplifier PCA-3000 (¥350,000).
| Model | Type | Price |
|---|---|---|
| DENON PMA-970 | integrated amplifier | ¥200,000 |
| Technical terms | Translation |
|---|---|
| 「純粋」A級パワーアンプ | "pure" class A power amplifier |
| Marketing terms | Translation |
|---|---|
| ハイパワー/ハイスピード再生……。かつて体験したことのない「透明感」の世界。 | High-power, high-speed reproduction…… A world of "transparency" never experienced before. |
| 全段コンデンサーレス構成を実現 | Realizing a capacitor-less configuration in every stage |
| ダイレクトDCサーボ回路を採用 | Adopting a direct DC servo circuit |
| 最新高級カートリッジの再生帯域を大幅に超える | Far exceeding the playback range of the latest high-grade cartridges |
| 驚異のRIAA偏差 20Hz~100kHz ±0.2dB | Astonishing RIAA deviation 20Hz~100kHz ±0.2dB |
| ハイパワー100W+100Wを達成 | Achieving high power of 100W+100W |
| 高効率・高出力「純粋」A級パワーアンプ | High-efficiency, high-output "pure" class A power amplifier |
| 超高域100kHzまでなめらかな特性 | Smooth characteristics up to the ultra-high range of 100kHz |
| 新開発リアルタイム・トーンコントロール | Newly developed real-time tone control |
| 合理的な内部コンストラクションとリモート・スイッチの応用で信号経路を大幅短縮 | A rational internal construction and the use of remote switches greatly shorten the signal path |
| 高次元の趣味性を表現する、鏡面研磨の豪華な木目仕上げのニューデザイン | A new design with a luxurious mirror-polished wood-grain finish that expresses a high level of aesthetic appeal |
| 充実した性能と優雅な趣味性を同時に満足させる格調高いデザイン。側面は経年変化に強いブラジリアン・ローズウッド調の入念な鏡面木目仕上げとしました。フロントパネルはシャンペン・ゴールドのハードアルマイト仕上げで、ハイフィディリティの本流を十分に表現します。 | A dignified design that satisfies both substantial performance and elegant aesthetic appeal. The sides are carefully finished with a mirror-polished Brazilian rosewood-style wood grain that resists change over the years. The front panel, in a champagne-gold hard-anodized finish, fully expresses the mainstream of high fidelity. |
| その他の機能 | Other functions |
| 音楽情報のすべてを精緻に充足 | Precisely and fully satisfying every bit of musical information |
| 高効率・高出力180W+180W「純粋」A級パワーアンプ | High-efficiency, high-output 180W+180W "pure" class A power amplifier |
昭和55年10月（1980 October）NMM857
