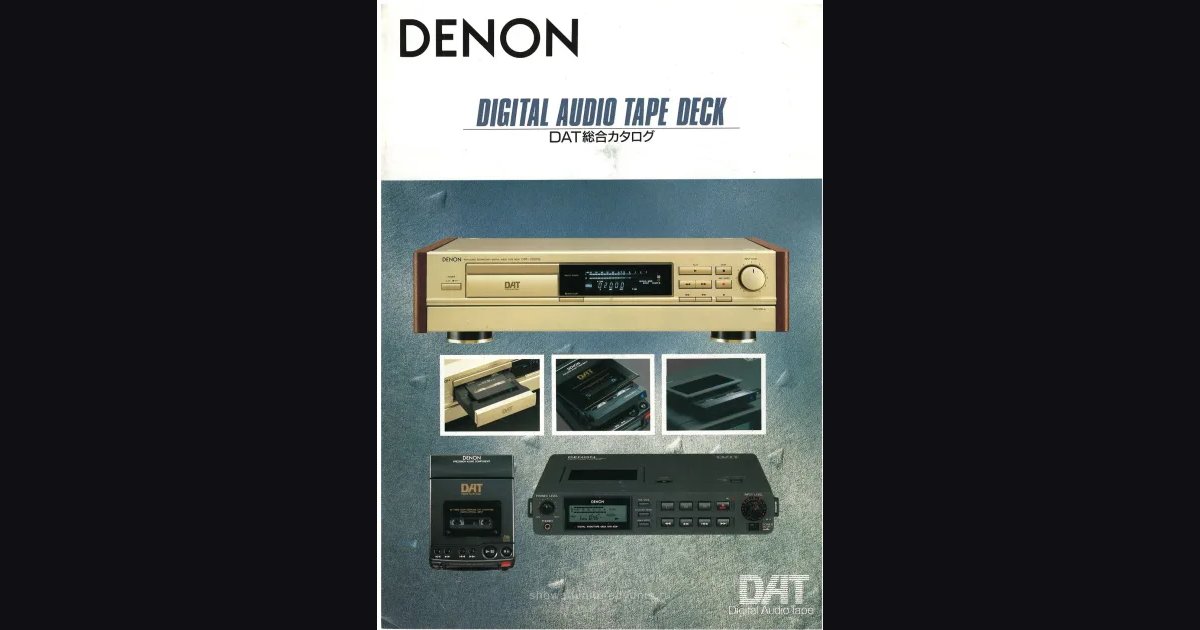

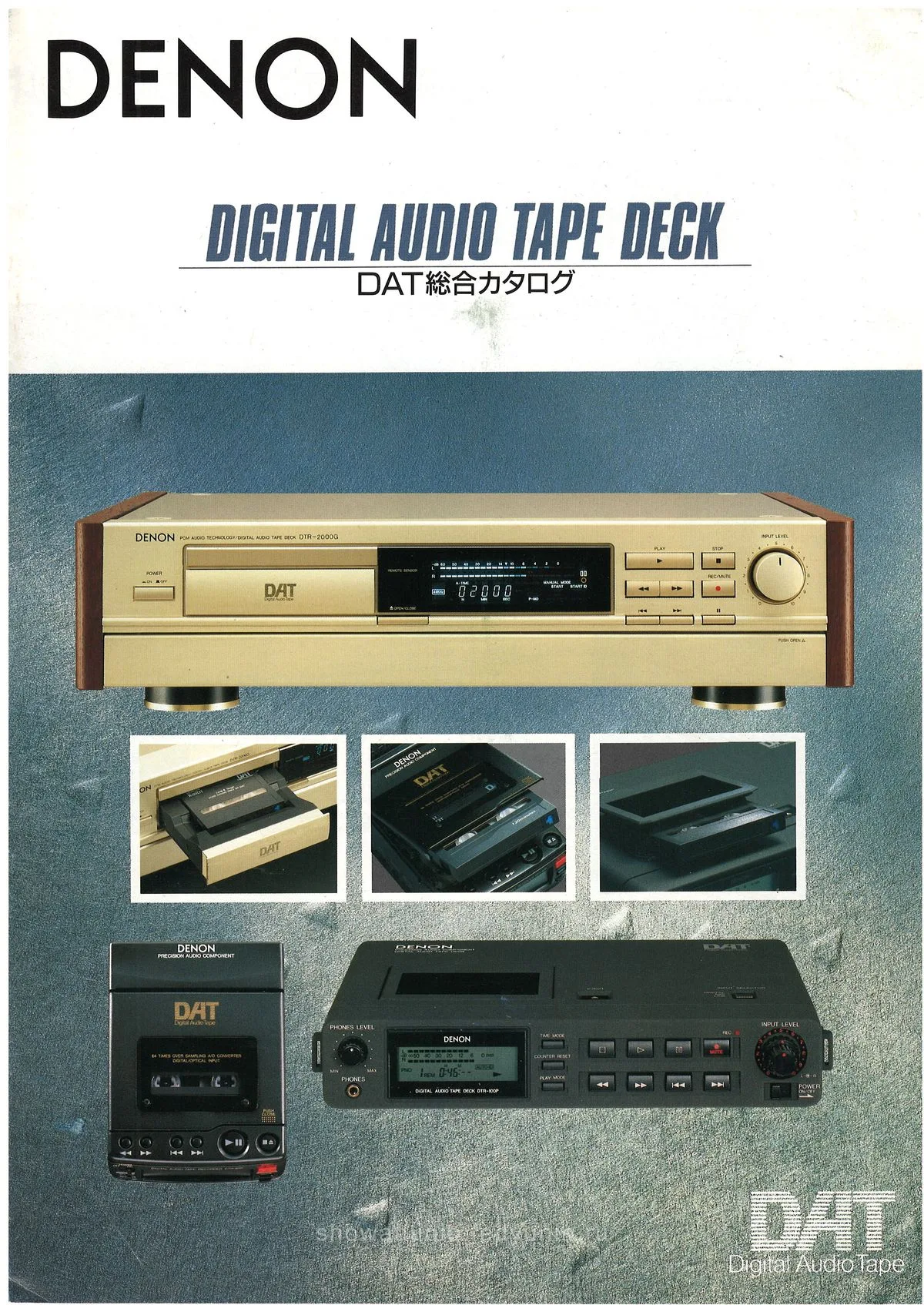

DENON DAT May 1992
https://storage.yandexcloud.net/showaaudio-media/images/items/denon-dat-1992-05/main-01.webp19925denon

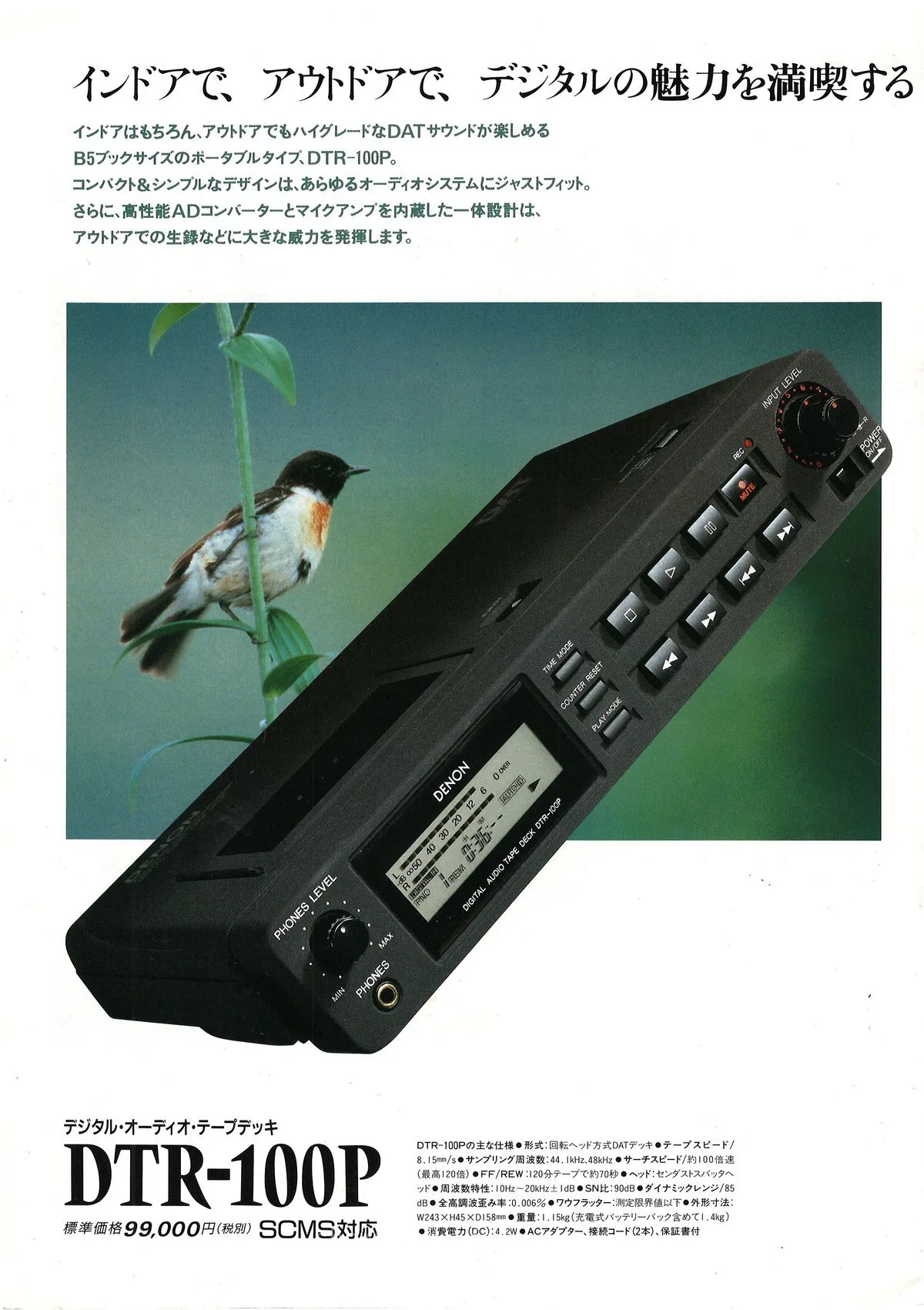

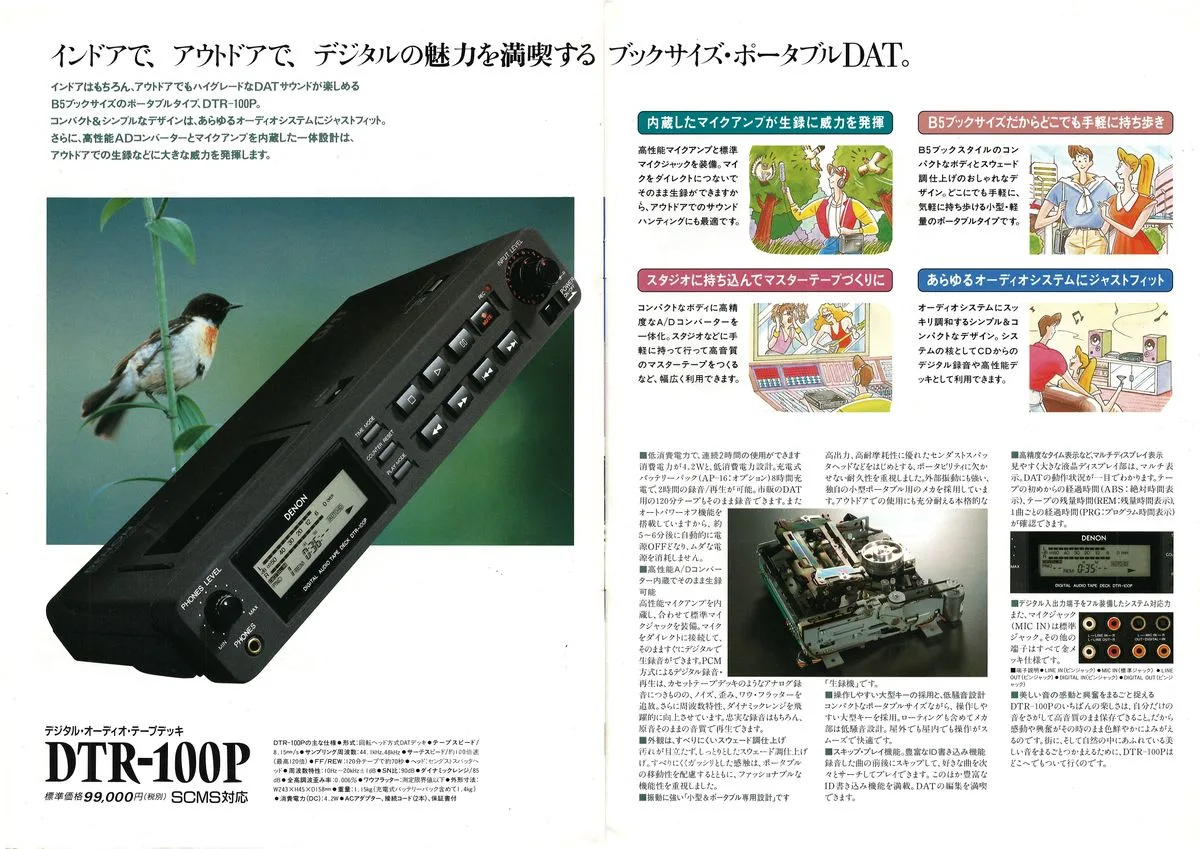

An 8-page themed booklet on DAT decks from DENON, May 1992. Three machines for three scenarios: the stationary flagship DTR-2000G at ¥128,000 in a gold cabinet with wooden cheeks - same リアル20bit Λ-S.L.C as the DCD-3500RG from Digital Audio Vol.19, plus a sigma-delta A/D and 400x fast wind with FINE CUE for editing; the pocket-size DTR-80P at ¥89,800 - 390 grams, four hours on plain AA alkalines, four power options (AA, Ni-Cd, car, AC); and the B5-book-size DTR-100P at ¥99,000 with a built-in microphone preamp and mic jack for field recording (the spread illustration features a stonechat in close-up). The back page covers accessories for the two portables, the R-46DT through R-120DT tape line at ¥1,000-1,600, and the AH-C33 inner-ear headphones at ¥2,400.

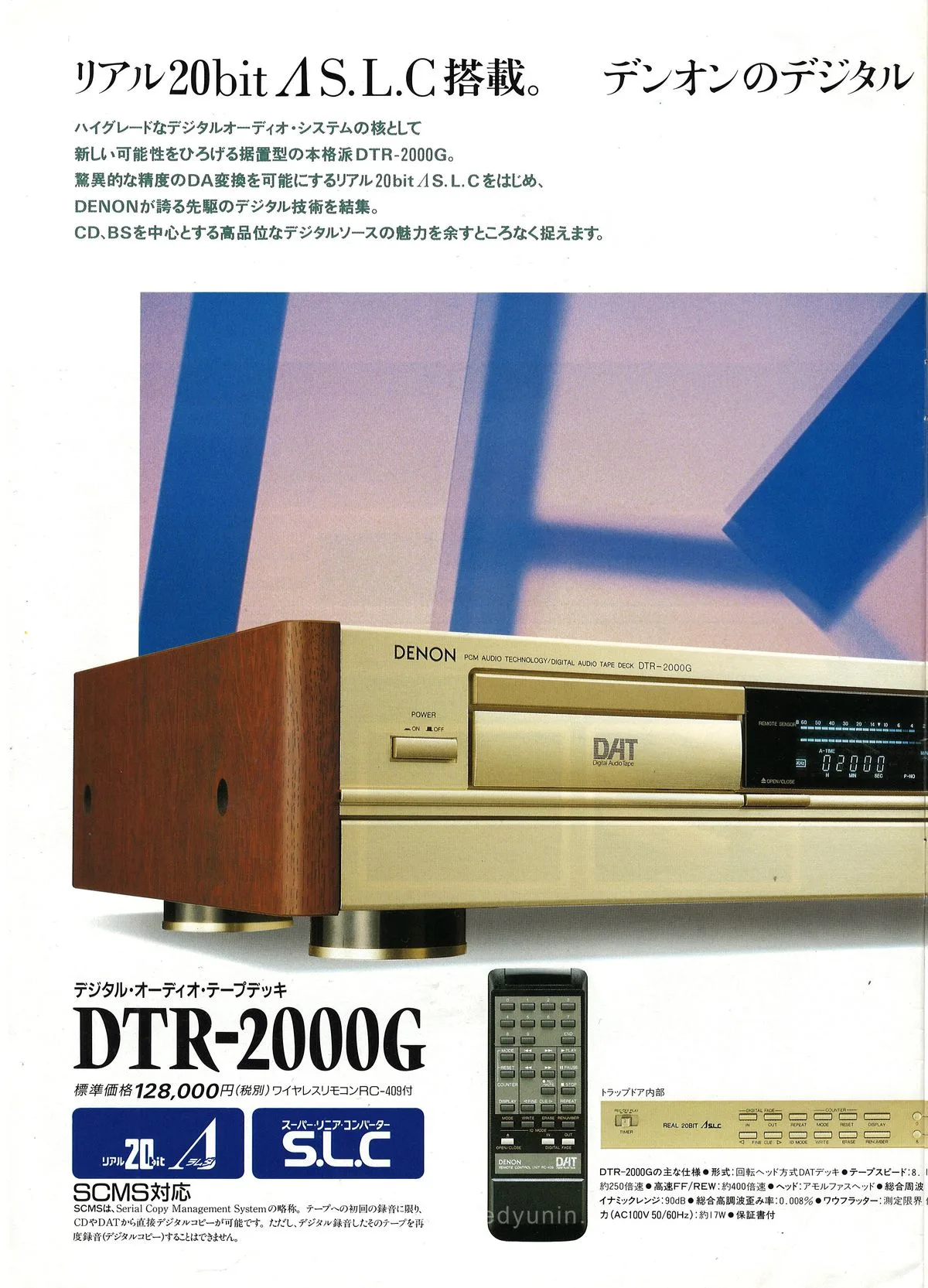

- リアル20bit Λ(ラムダ)-S.L.C - Real 20-bit Lambda Super Linear Converter - two 20-bit DACs run in parallel with opposite signal offsets, their analog outputs are summed, and the conversion error at the zero crossing of one is cancelled by the error of the other (on DTR-2000G)
- シグマ/デルタ型A/Dコンバーター - Sigma/Delta A/D converter - unlike ladder-resistor types, it operates at a high sampling rate, allowing better phase response and a smoother analog low-pass filter (on DTR-2000G)
- 400倍速FF/REW + FINE CUE - 400x high-speed FF/REW - about 25 seconds for a 120-minute tape, plus FINE CUE - half-speed playback search for precise edit-point positioning
- SCMS (Serial Copy Management System) - Serial Copy Management System - allows one digital copy from CD/DAT but blocks subsequent digital copying of that copy. Present on all three models

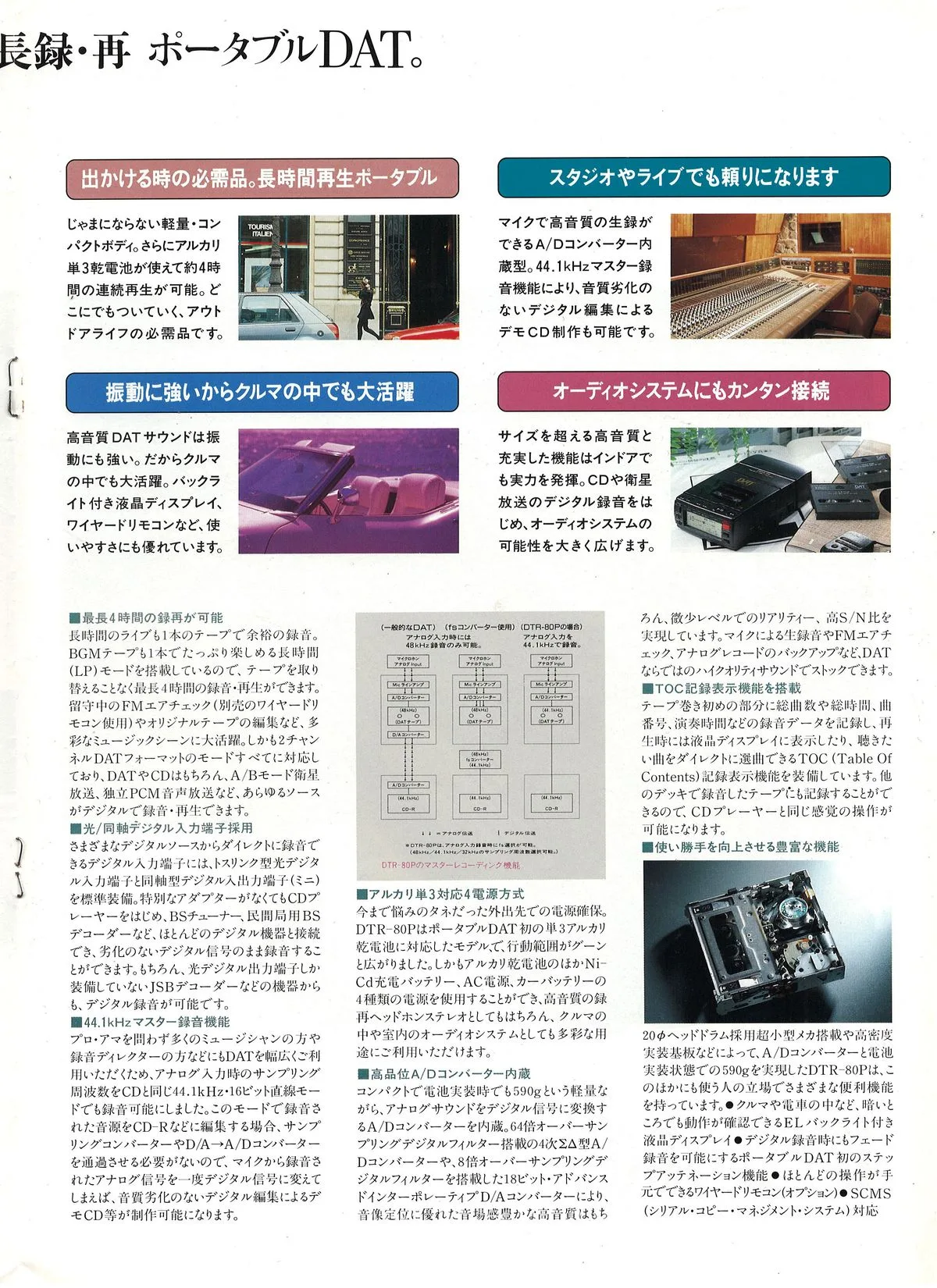

- 44.1kHz マスター録音機能 - Direct 44.1 kHz master recording without rate conversion - for demo CD masters with no extra A/D-D/A conversions (on DTR-80P)
- TOC (Table Of Contents) 記録表示機能 - TOC recording and display - track count, total time and per-track times stored at the start of the tape, tracks selectable directly from the display (on DTR-80P)

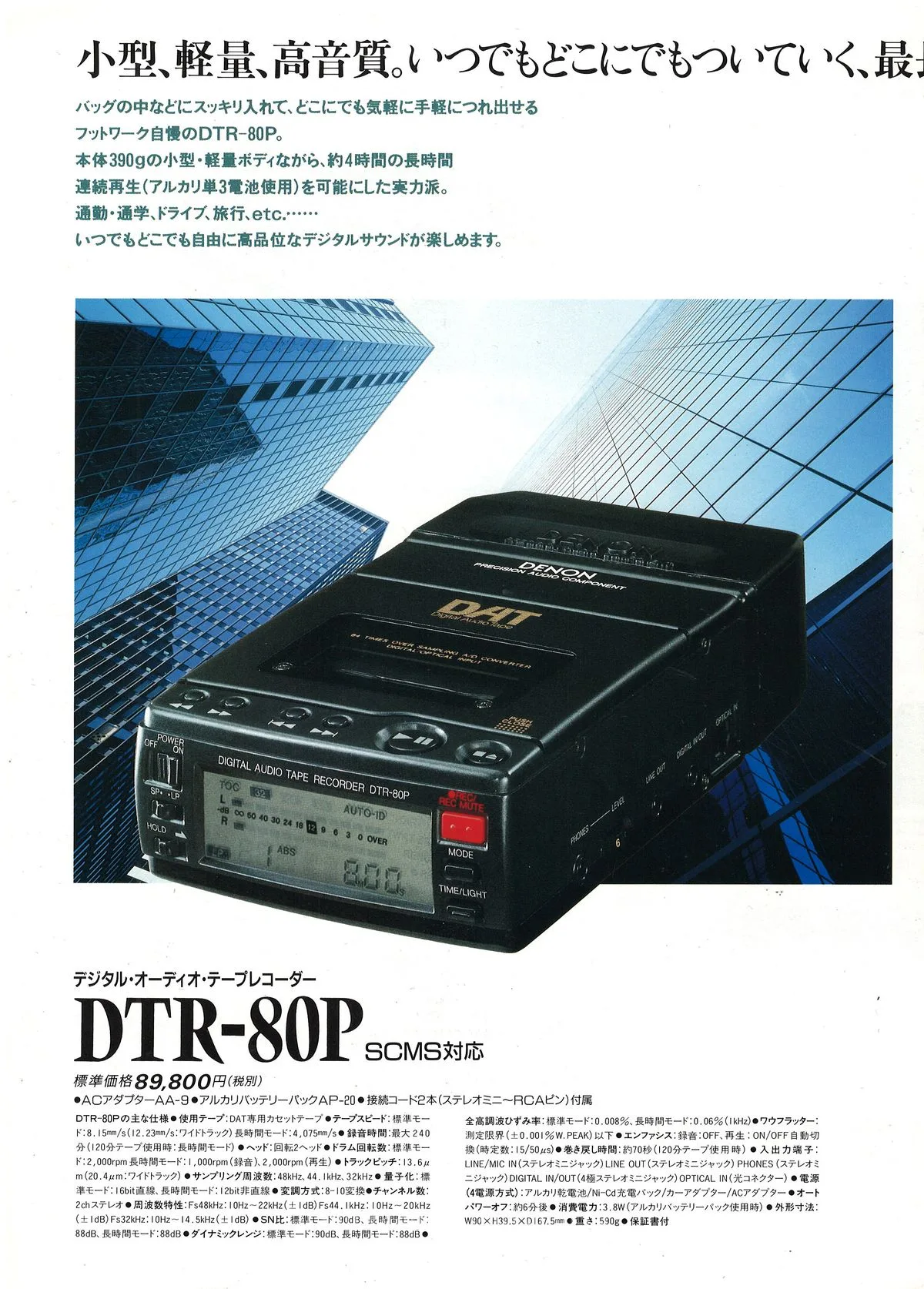

- 4電源方式 - Four-way power supply for DTR-80P: alkaline AA, Ni-Cd battery pack, car adapter, AC adapter
| Model | Type | Price |
|---|---|---|
| DENON DTR-2000G | DAT deck | ¥128,000 |
| DENON DTR-80P | portable DAT player | ¥89,800 |
| DENON DTR-100P | portable DAT player | ¥99,000 |

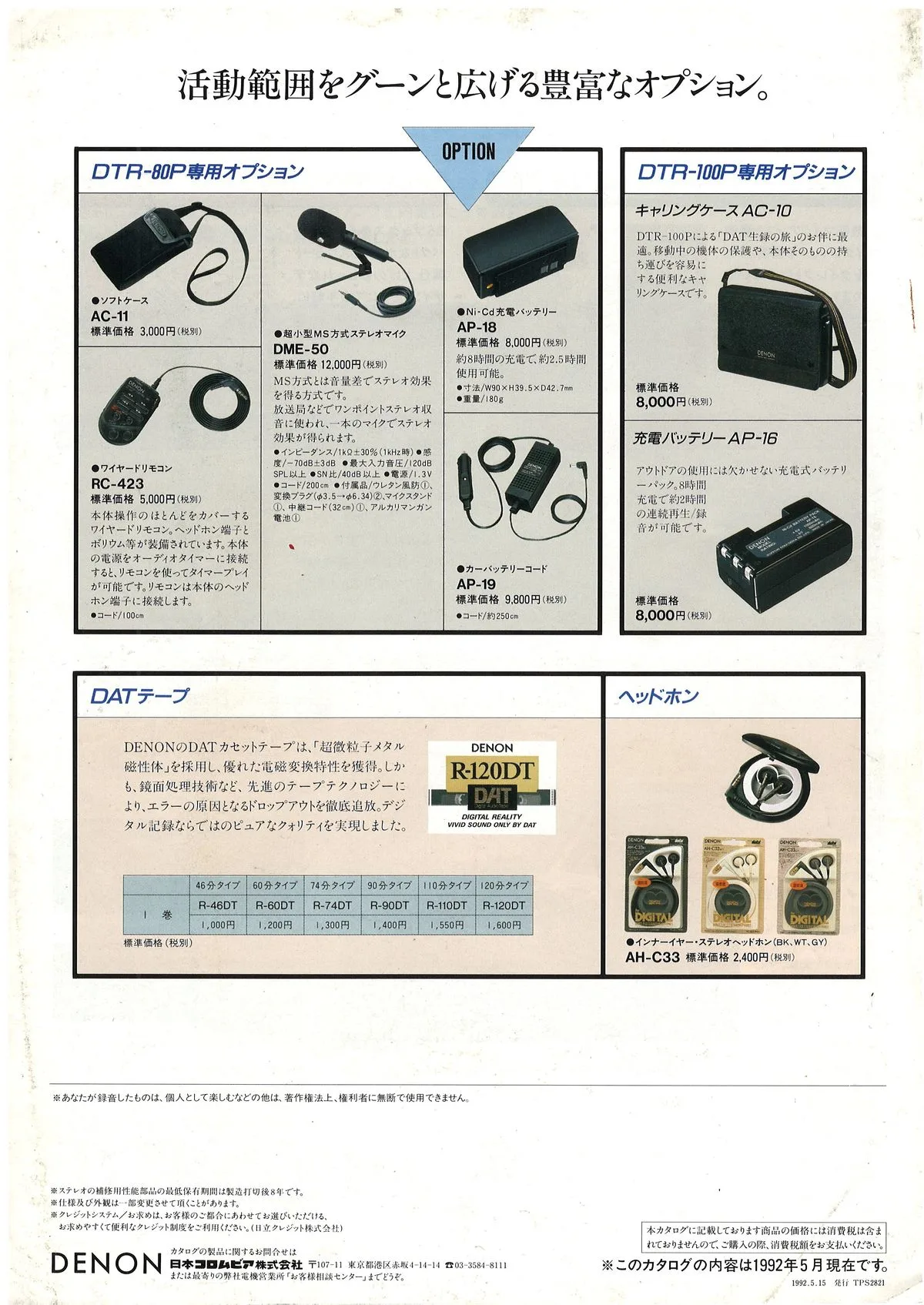

| DENON R-46DT | DAT cassette | ¥1,000 |
| DENON R-60DT | DAT cassette | ¥1,200 |
| DENON R-74DT | DAT cassette | ¥1,300 |
| DENON R-90DT | DAT cassette | ¥1,400 |
| DENON R-110DT | DAT cassette | ¥1,550 |
| DENON R-120DT | DAT cassette | ¥1,600 |
| DENON AH-C33 | headphones | ¥2,400 |
| DENON DME-50 | stereo microphone | ¥12,000 |
| DENON RC-423 | accessory - remote control | ¥5,000 |
| DENON AP-18 | accessory - battery | ¥8,000 |
| DENON AP-19 | accessory - cable | ¥9,800 |
| DENON AC-11 | accessory - case | ¥3,000 |
| DENON AC-10 | accessory - case | ¥8,000 |
| DENON AP-16 | accessory - battery | ¥8,000 |
